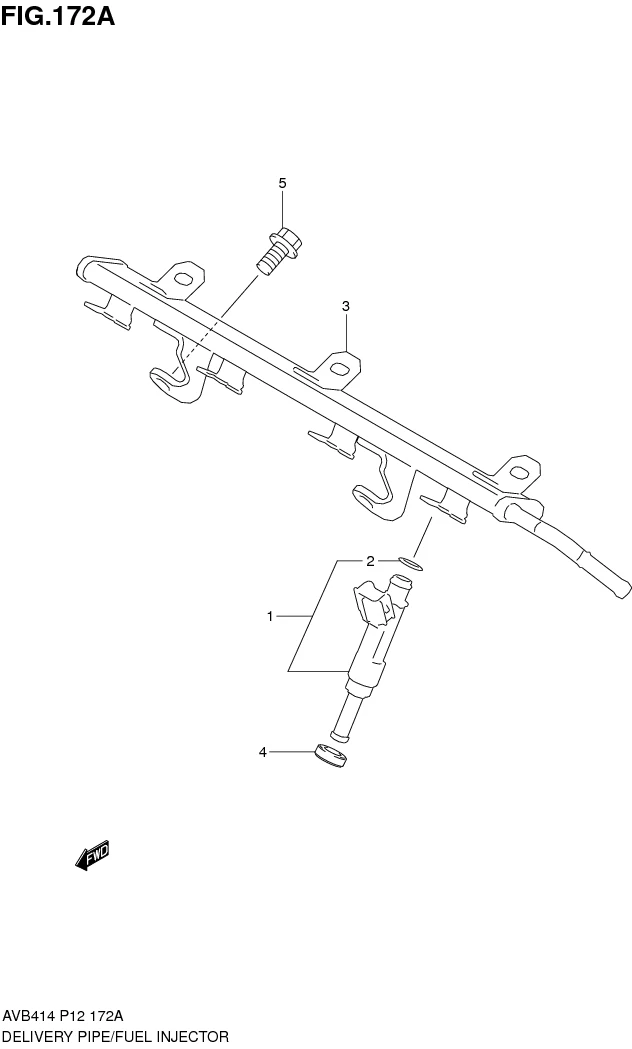

FIG.172A DELIVERY PIPE/FUEL INJECTOR

FIG.172A DELIVERY PIPE/FUEL INJECTOR
No No. Part Description Qty Price Per Pcs Remarks
1 15710-79P00-000 INJECTOR ASSY, FUEL 4 Rp2.617.000
2 15710-09300-000
SUB: 15710B09300N000		 •O RING 4 Rp13.500
3 15730-79P00-000 PIPE, FUEL DELIVERY 1 Rp2.537.000
4 09320-09022-000
SUB: 09320-08062-000		 CUSHION (8.7X16.3X5.5) 4 Rp8.500
5 01550-0816A-000 BOLT 2 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
