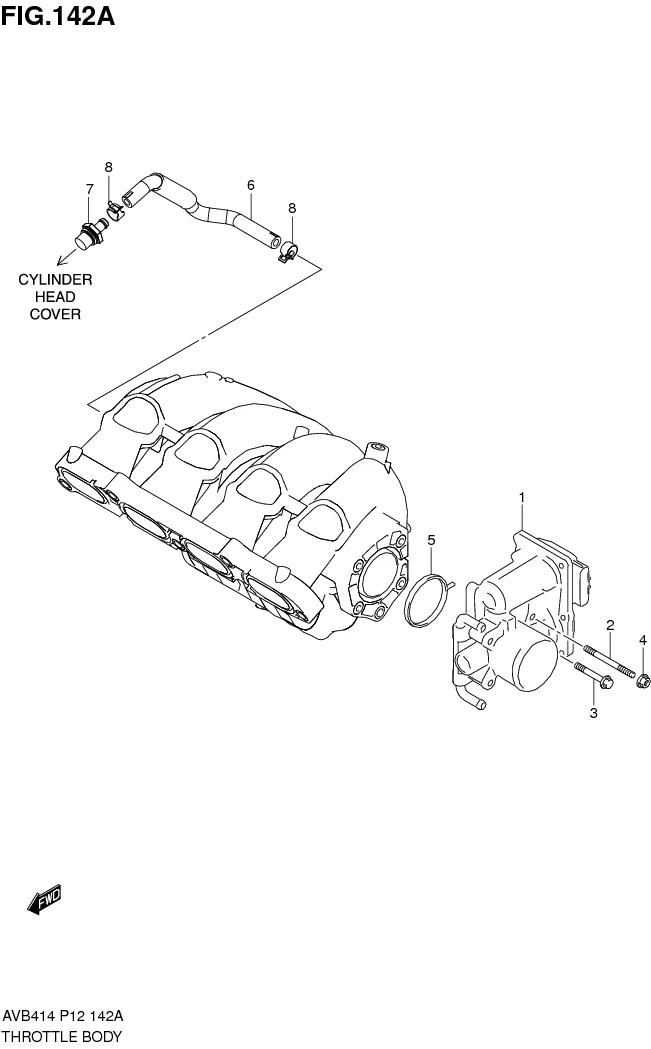

FIG.142A THROTTLE BODY

FIG.142A THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-79P10-000 BODY ASSY, THROTTLE 1 Rp10.328.000
2 01421-0650A-000 STUD BOLT 3 Rp14.000
3 01550-0650A-000 BOLT 1 Rp5.500
4 08316-1006A-000 NUT 3 Rp2.000
5 13421-58M00-000 GASKET, THROTTLE BODY 1 Rp19.500
6 11193-58M00-000 HOSE, PCV 1 Rp176.000
7 18118-71L01-000 VALVE, PCV 1 Rp189.000
8 09401-13L03-000 CLIP 2 Rp26.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
