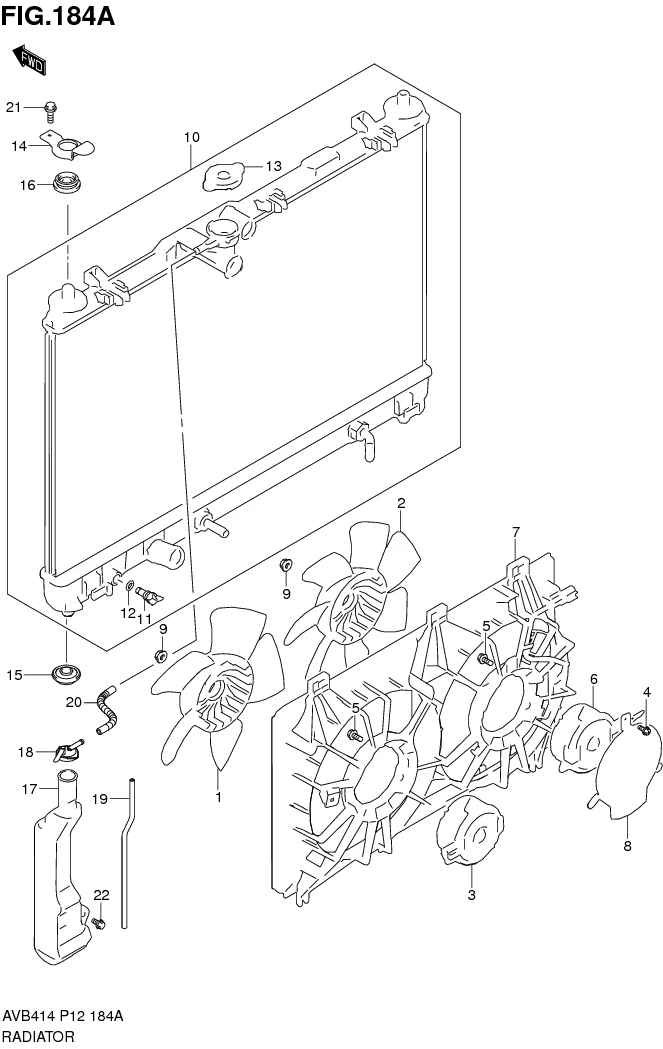

FIG.184A RADIATOR

FIG.184A RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1 17111-79P00-000 FAN, ENG CLG MAIN 1 Rp486.500
2 17112-79P01-000
SUB: 17112-79P00-000		 FAN, ENG CLG SUB 1 Rp476.000
3 17120-79P01-000
SUB: 17120-79P00-000		 MOTOR ASSY, MAIN 1 Rp1.702.500
4 17129-50F10-000 SCREW (M4) 1 Rp21.500
5 17129-56F00-000
SUB: 17129M56F00-000		 SCREW, FAN MOTOR (5X11) 6 Rp24.000
6 17130-79P02-000
SUB: 17130-79P00-000		 MOTOR ASSY, SUB 1 Rp1.497.500
7 17760-79P00-000 SHROUD 1 Rp863.000
8 17761-79P00-000 HEAT PROTECTOR 1 Rp7.597.000
9 08316-2005A-000 NUT 2 Rp13.000
10-1 17700-79P21-000
SUB: 17700-79P20-000		 RADIATOR ASSY 1 Rp3.460.000 5MT
10-2 17700-79P10-000 RADIATOR ASSY 1 Rp3.441.500 4AT
11 17751-58M00-000 •PLUG, DRAIN 1 Rp40.000
12 17759-82K00-000 •O RING 1 Rp7.500
13 DISCONTINUE
SUB: 17920B75F00N000		 •CAP, RADIATOR 1 -
14 17861M79M00-000 BRACKET, RDTR SUPPORT UPPER 2 Rp26.500
15-1 17878-58M01-000
SUB: 17878-58M00-000		 MOUNT, RADIATOR SUPPORT LOWER 2 Rp47.500 5MT
15-2 17878-54M10-000 MOUNT, RDTR SUPPORT LWR 2 Rp50.000 4AT
16 17879-58M00-000 MOUNT, RADIATOR SUPPORT UPPER 2 Rp48.000
17 17931M79M00-000 TANK, WATER RESERVE 1 Rp175.500
18 17932-76G00-000
SUB: 17932M76G00-000		 CAP, WTR RSVR TANK 1 Rp5.500
19 17934-79P00-000 HOSE, WTR RSVR TANK CAP 1 Rp58.000
20 17939-79P00-000 HOSE, RDTR TO RSV TANK 1 Rp58.500
21 02162-0612A-000 SCREW 4 Rp11.000
22 02162-0616A-000 SCREW 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
