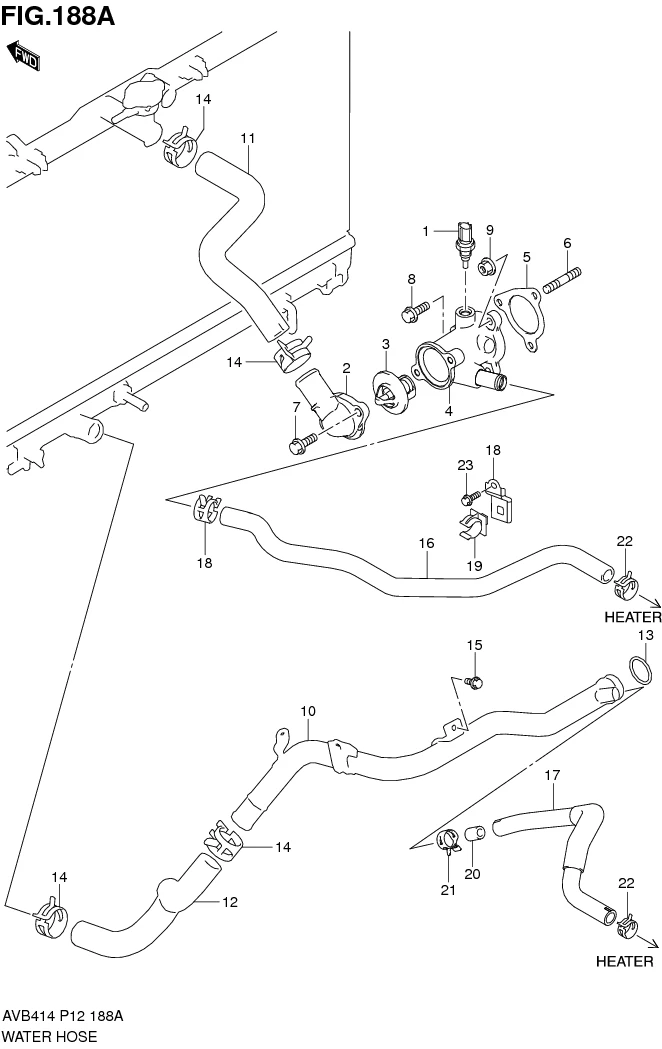

FIG.188A WATER HOSE

FIG.188A WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 13650-73H00-000 SENSOR, WTR TEMP 1 Rp368.000
2 17561-84M00-000 CAP, WTR THERMO 1 Rp1.256.500
3 17670-50G11-000
SUB: 17670-50G10-000		 THERMOSTAT, WATER 1 Rp215.500
4 17690-84M20-000 CASE, THERMO 1 Rp1.472.000
5 17699M68K00-000 GASKET, THERMO CASE 1 Rp13.000
6 01421-0825A-000 STUD BOLT 2 Rp13.000
7 01550-0825A-000 BOLT 2 Rp3.500
8 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000
9 08316-1008A-000 NUT 2 Rp3.500
10 17830-79P40-000 PIPE, WTR INLET 1 Rp764.000
11 17852-79P00-000 HOSE, RDTR INLET 1 Rp119.000
12 17854-79P00-000 HOSE, RDTR OUTLET 1 Rp124.500
13 09280-28L02-000 O RING (D:3.5,ID:27.7) 1 Rp119.500
14 09401-30L03-000 CLIP 4 Rp37.000
15 01550M0612A-000 BOLT 1 Rp5.000
16 17871-79P00-000 HOSE, HTR INLET 1 Rp158.500
17 17872-58M00-000 HOSE, HTR OUTLET 1 Rp115.500
18 17875-79P00-000 BRACKET, HTR INLET HOSE 1 Rp55.000
19 17875-84M00-000 CLAMP 1 Rp50.000
20 17879M54LA0-000 SPACER, HTR HOSE 1 Rp10.500
21 09401-21L06-000 CLIP 2 Rp20.500
22 09401-21L06-000 CLIP 2 Rp20.500
23 01550-0816A-000 BOLT 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
