CIAZ

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT)FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

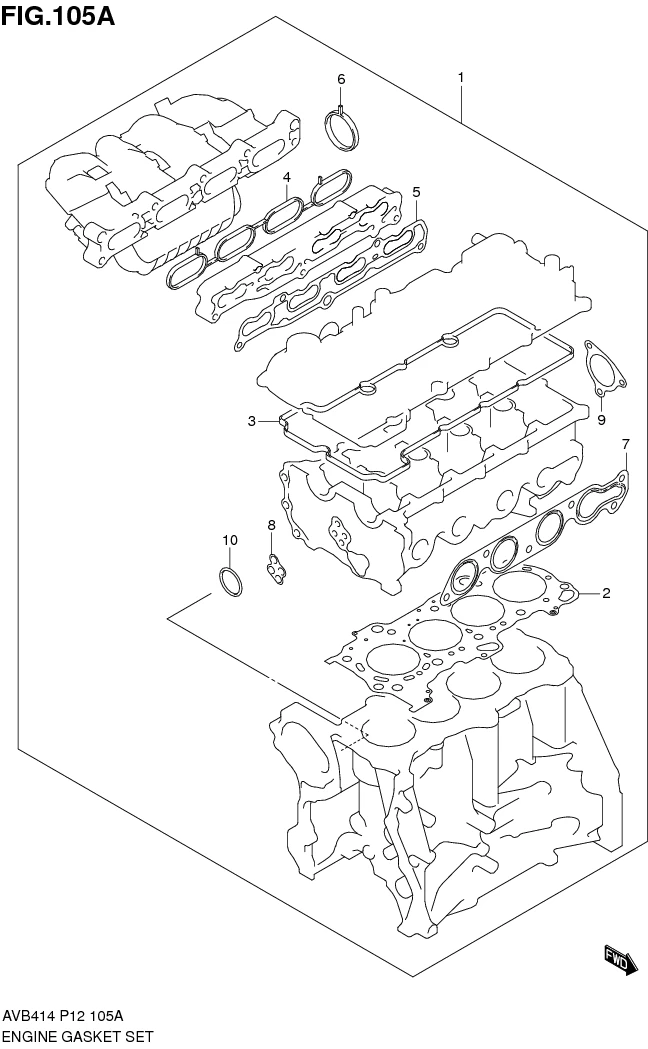

FIG.105A ENGINE GASKET SET

FIG.105A ENGINE GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
1 11401-58820-000 GASKET SET, ENGINE 1 Rp2.893.000
2 11141-79P00-000 •GASKET, CYLINDER HEAD 1 Rp791.500
3 11189-79PB0-000 •GASKET, CYLINDER HEAD COVER 1 Rp123.500
4 13118-58M00-000 •GASKET, INTK MANF 1 Rp64.000
5 13119M83K10-000 •GASKET, INTK MANF 1 Rp58.500
6 13421-58M00-000 •GASKET, THROTTLE BODY 1 Rp19.500
7 14140-71L00-000 •GASKET, EXH MANF 1 Rp151.500
8 16118-58MB0-000 •O RING, OCV 1 Rp126.500
9 17699M68K00-000 •GASKET, THERMO CASE 1 Rp13.000
10 09280-28L02-000 •O RING (D:3.5,ID:27.7) 1 Rp119.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
