CIAZ

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT)FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

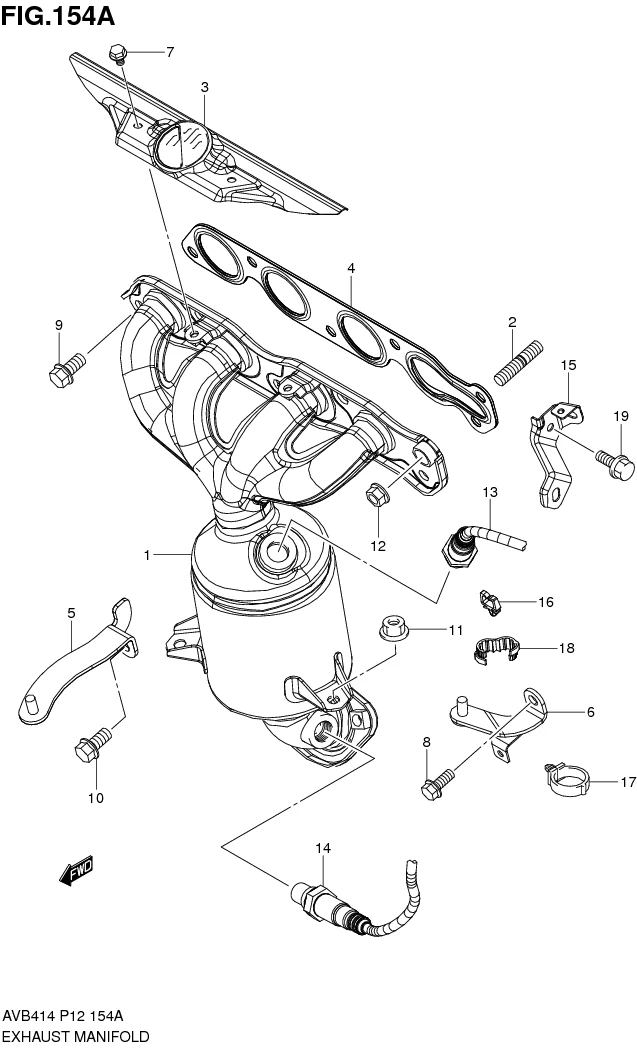

FIG.154A EXHAUST MANIFOLD

FIG.154A EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 14110-79P00-000 MANIFOLD, EXH 1 Rp16.017.500
2 14118-63J00-000 STUD BOLT, EXH MANF 3 Rp21.500
3 14121-54M00-000 PLATE, CAUTION 1 Rp188.000
4 14140-71L00-000 GASKET, EXH MANF 1 Rp151.500
5 14271-73K11-000 STIFFENER, EXH MANF 1 Rp129.000
6 14272-58M00-000 STIFFENER, EXH MANF 1 Rp120.000
7 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 2 Rp21.500
8 01550-0820A-000 BOLT 1 Rp5.500
9 01550-1020A-000 BOLT 3 Rp21.000
10 01550-1020A-000 BOLT 1 Rp21.000
11 08316-1008A-000 NUT 2 Rp3.500
12 08316-1010A-000 NUT 3 Rp3.500
13 18213-58M10-000 SENSOR, OXYGEN 1 Rp1.926.000
14 18213-58M20-000 SENSOR, OXYGEN RR 1 Rp2.167.500
15 18214-69L00-000 BRACKET, OXYGEN SENSOR 1 Rp40.500
16 09403-11322-000 CLAMP 1 Rp25.500
17 09403-12L05-000 CLAMP 2 Rp24.000
18 09408-00258-000 CLAMP 1 Rp14.500
19 01550M0612A-000 BOLT 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
