CIAZ

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT)FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

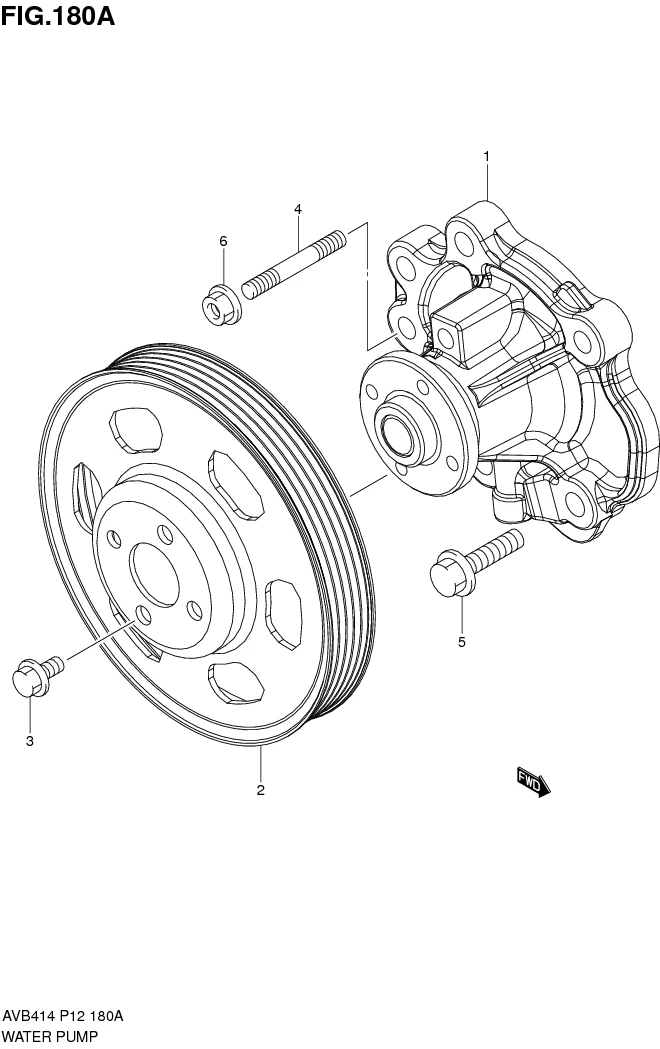

FIG.180A WATER PUMP

FIG.180A WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17400-58M02-000
SUB: 17400-58M00-000		 PUMP ASSY, WATER 1 Rp1.865.000
2 17511-58M00-000 PULLEY, WATER PUMP 1 Rp160.000
3 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 4 Rp21.500
4 01421-0835A-000 STUD BOLT 2 Rp13.500
5 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 4 Rp4.000
6 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
