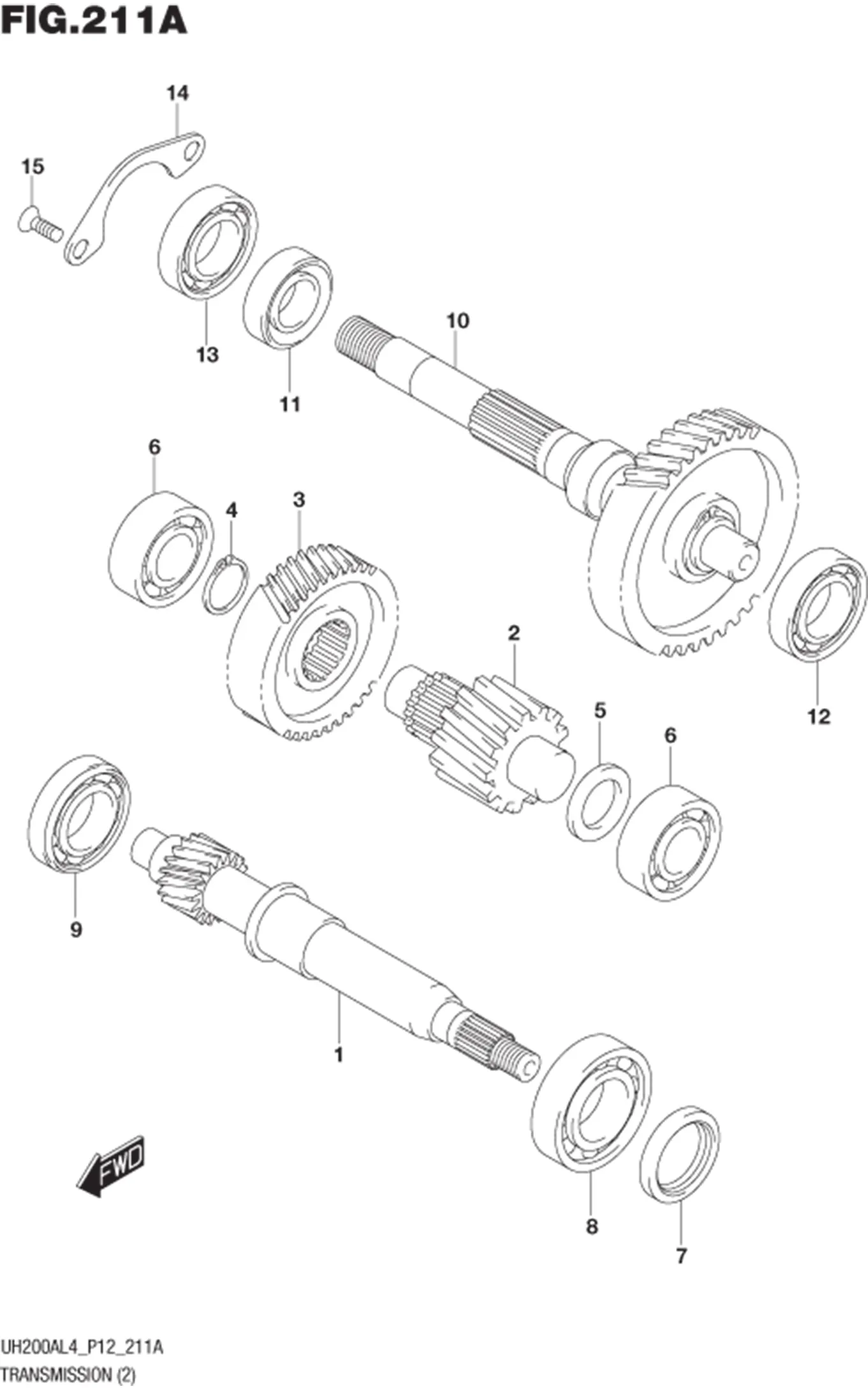

FIG.211A TRANSMISSION (2)

FIG.211A TRANSMISSION (2)
No No. Part Description Qty Price Per Pcs Remarks
1 24131-03H10-000 SHAFT, DRIVE (NT:16) 1 Rp450.500
2 24151-03H50-000 SHAFT, IDLE (NT:13) 1 Rp346.500
3 24381-03H20-000 GEAR, IDLE DRIVEN (NT:44) 1 Rp329.500
4 08331-3120A-000 CIRCLIP 1 Rp14.000
5 08211-15251-000 WASHER 1 Rp4.500 LH
6 08113-62027-000 BEARING 2 Rp103.500
7 09283-25097-000 OIL SEAL (25X37X6) 1 Rp33.000
8 09262-25126-000 BEARING (20X47X14) 1 Rp62.000 LH
9 09262-15027-000 BEARING (15X42X13) 1 Rp167.000 RH
10 24140-03H51-000
SUB: 24140-03H30-X07		 SHAFT, AXLE (NT:38) 1 Rp2.595.000
11 64841-28E01-000
SUB: 64841-28E00-000		 OIL SEAL (29X42X6) 1 Rp41.500
12 DISCONTINUE
SUB: 08113-63030-000		 BEARING 1 - LH
13 09262-22036-000
SUB: 09262-22027-000		 BEARING (22X50X14) 1 Rp88.500 RH
14 24751-09J00-000
SUB: 24751-07900-000		 RETAINER, AXLE SHAFT BEARING 1 Rp13.500
15 09126-06014-000 SCREW (6X16) 2 Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
