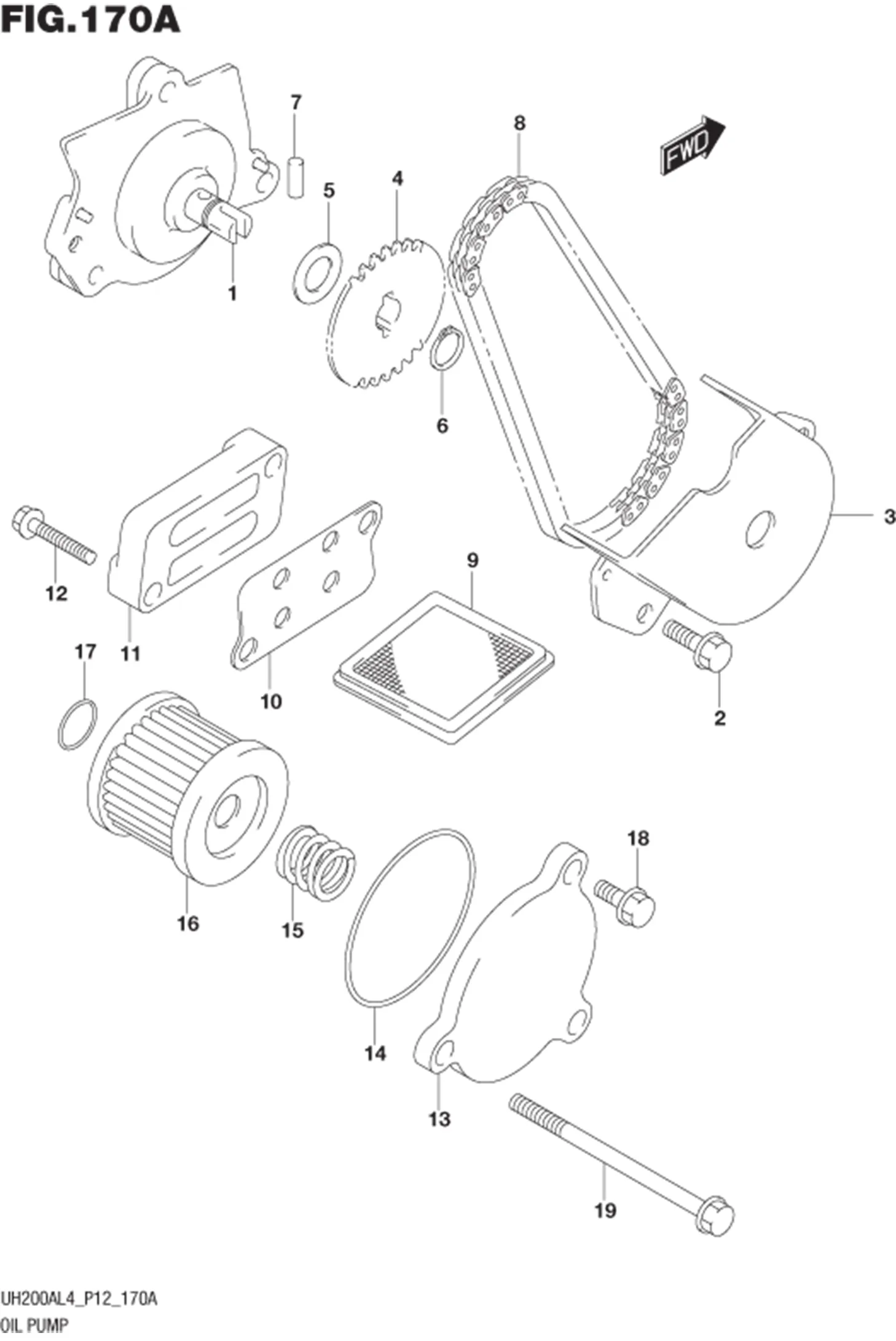

FIG.170A OIL PUMP

FIG.170A OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16400-49F00-000 PUMP ASSY, ENGINE OIL 1 Rp877.000
2 01547-0625A-000 BOLT 3 Rp6.500
3 16422-03H10-000 COVER, OIL PUMP 1 Rp63.000
4 16331-49F00-000 SPROCKET, OIL PUMP DRIVEN (NT:25) 1 Rp245.000
5 DISCONTINUE
SUB: 09181-10158-000		 SHIM (10X18X0.5) 1 -
6 DISCONTINUE
SUB: 08331-31109-000		 CIRCLIP 1 -
7 DISCONTINUE
SUB: 09261-04009-000		 PIN (4X15.8) 1 -
8 DISCONTINUE
SUB: 16310-14F00-000		 CHAIN ASSY, OIL PUMP DRIVE (82RH2005-56M) 1 -
9 16520-09402-000 STRAINER, ENGINE OIL 1 Rp18.000
10 16524-46G00-000 GASKET, OIL STRAINER CAP 1 Rp12.500
11 DISCONTINUE
SUB: 16523-20E00-000		 CAP, OIL STRAINER 1 -
12 01547-0625A-000 BOLT 2 Rp6.500
13 16512-47E00-000 CAP, OIL FILTER 1 Rp183.000
14 09280-54001-000 O RING (D:2.4,ID:52.6) 1 Rp3.000
15 DISCONTINUE
SUB: 09440-18002-000		 SPRING 1 -
16 16510-45H10-000 FILTER, ENGINE OIL 1 Rp10.000
17 09280-12009-000 O RING (D:1.9,ID:12.6) 1 Rp17.500
18 01547-0616A-000 BOLT 1 Rp6.500
19 01547-0665A-000 BOLT 2 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
