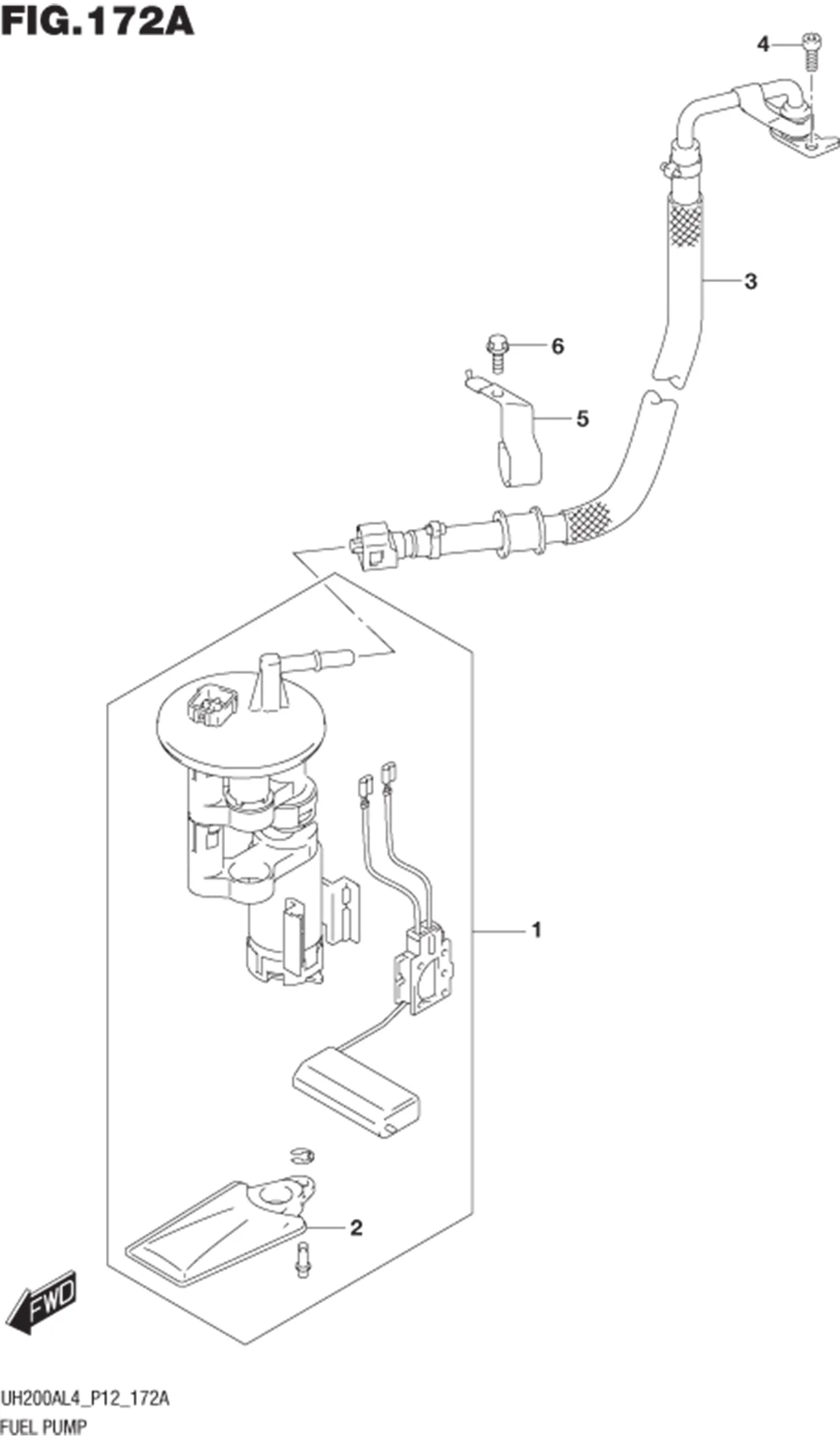

FIG.172A FUEL PUMP

FIG.172A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-03H21-000
SUB: 15100-03H20-000		 PUMP ASSY, FUEL 1 Rp3.289.000
2 15420-03H00-000 ?FILTER ASSY 1 Rp618.000
3 15810-12J00-000 HOSE, FUEL 1 Rp1.069.500
4 07130-0616A-000 BOLT 2 Rp3.500
5 15890-12J00-000 CLAMP 1 Rp26.000
6 01550-0612A-000 BOLT 1 Rp3.500
7 44463-12J00-000 BOOT, FUEL PUMP FILTER 1 Rp56.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
