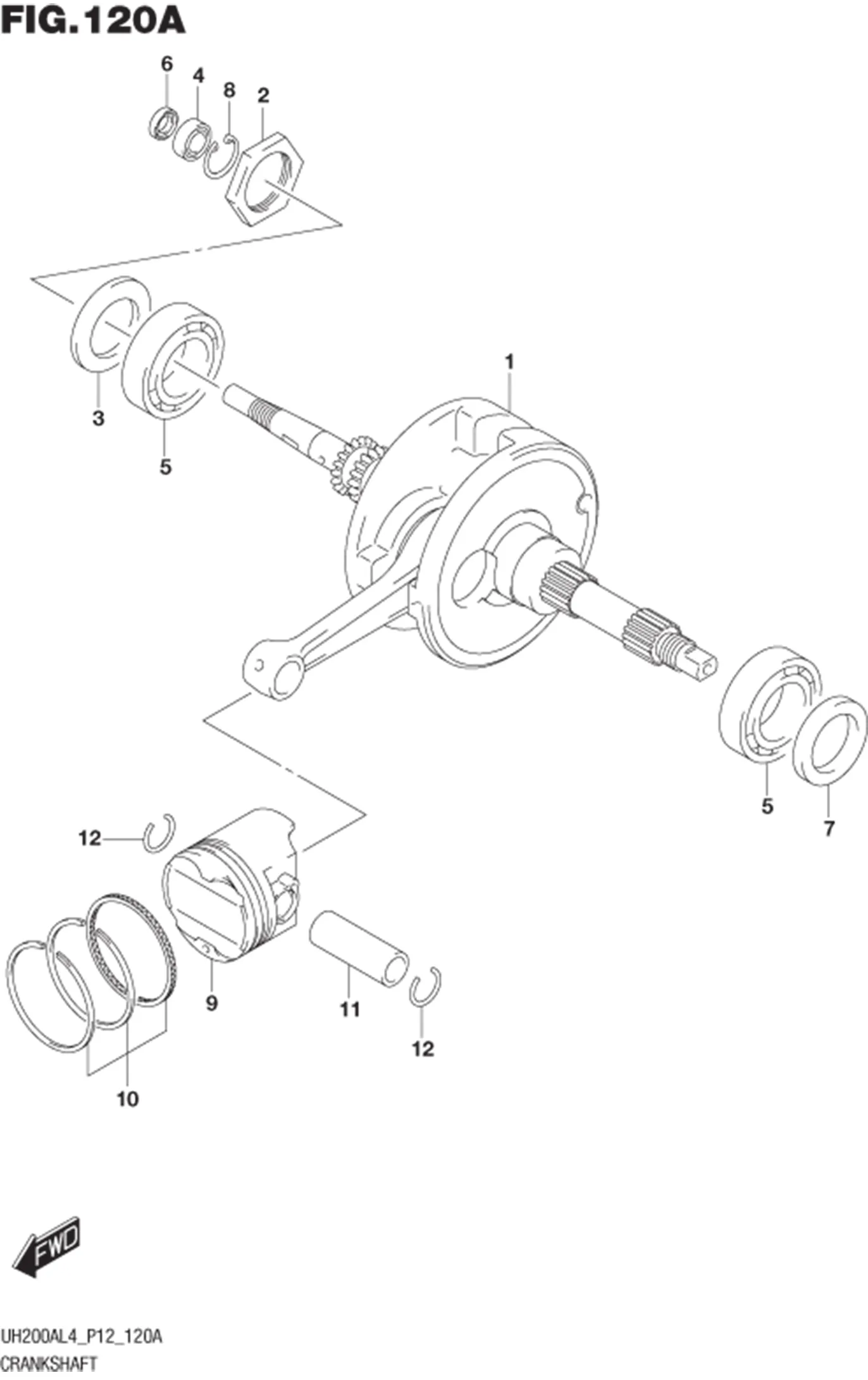

FIG.120A CRANKSHAFT

FIG.120A CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12200-03H80-000
SUB: 12200-03H60-000		 CRANKSHAFT ASSY 1 Rp1.881.000
2 12664-24B01-000 NUT 1 Rp104.000
3 09181-35024-000 SHIM (35X57X1) 1 Rp15.000 RH
4 08153-60017-000 BEARING 1 Rp45.000 RH
5 09262-35038-000 BEARING (35X72X17) 2 Rp324.000
6 09282-12L01-000 OIL SEAL (12X21X7) 1 Rp15.500 RH
7 09283-34L01-000 SEAL,OIL (34X52X6) 1 Rp43.500 LH
8 08331-41289-000 CIRCLIP 1 Rp4.000
9 12111-03H60-0F0
SUB: 12111-03H50-0F0		 PISTON 1 Rp342.000
10 12140-06H10-000 RING SET, PISTON 1 Rp182.000
11 12151-17C10-000 PIN, PISTON 1 Rp65.000
12 09381-19006-000 CIRCLIP 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
