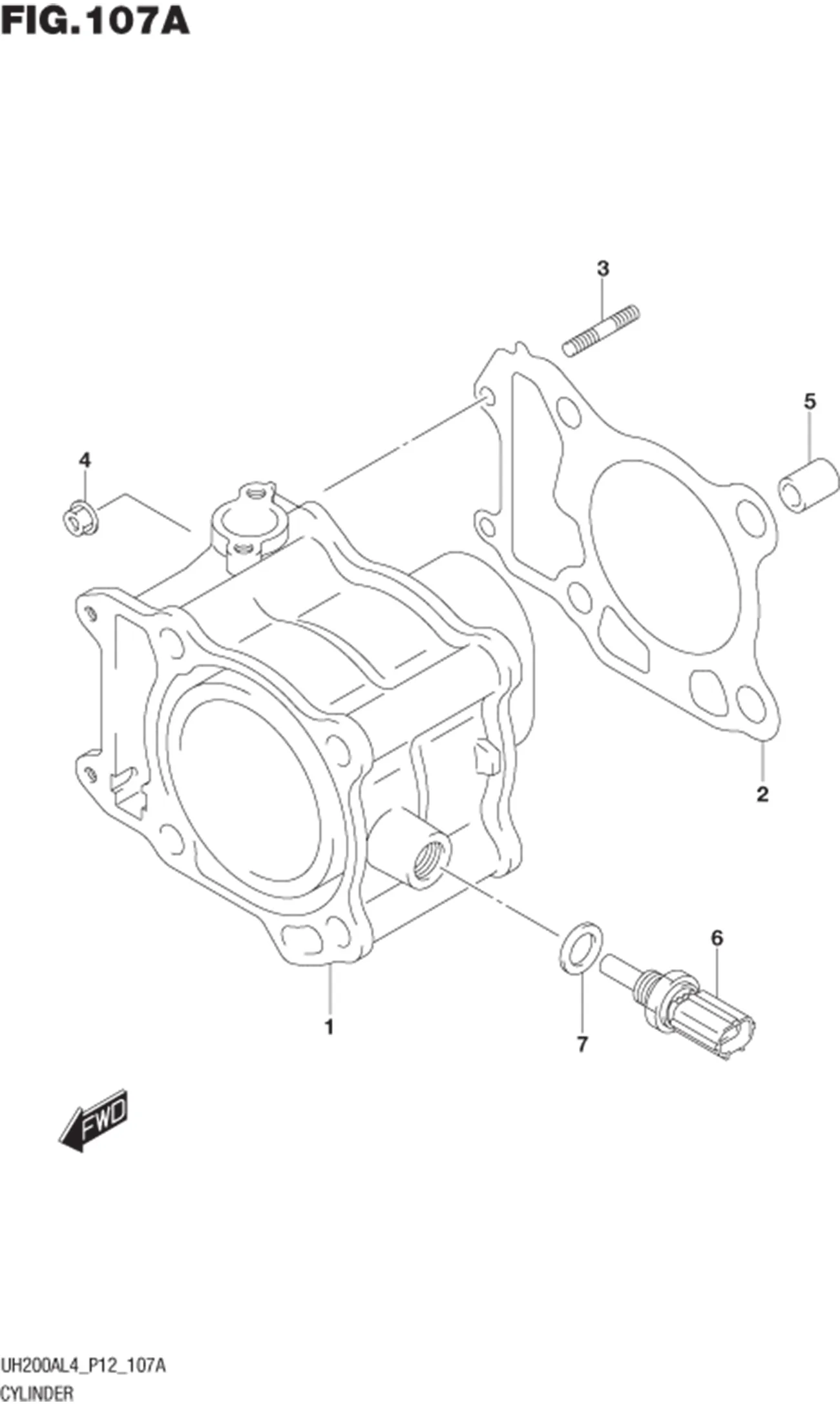

FIG.107A CYLINDER

FIG.107A CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11211-03H00-0F0 CYLINDER 1 Rp734.000
2 11241-03H00-000 GASKET, CYLINDER 1 Rp81.000
3 01421-0625A-000 STUD BOLT 2 Rp7.000
4 08316-1006A-000 NUT 2 Rp2.000
5 04211M13189-000
SUB: 04211-13189-000		 PIN 2 Rp9.000
6 13650-10G00-000 SENSOR, WATER TEMP 1 Rp648.500
7 09168-12017-000 GASKET (12X17X1) 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
