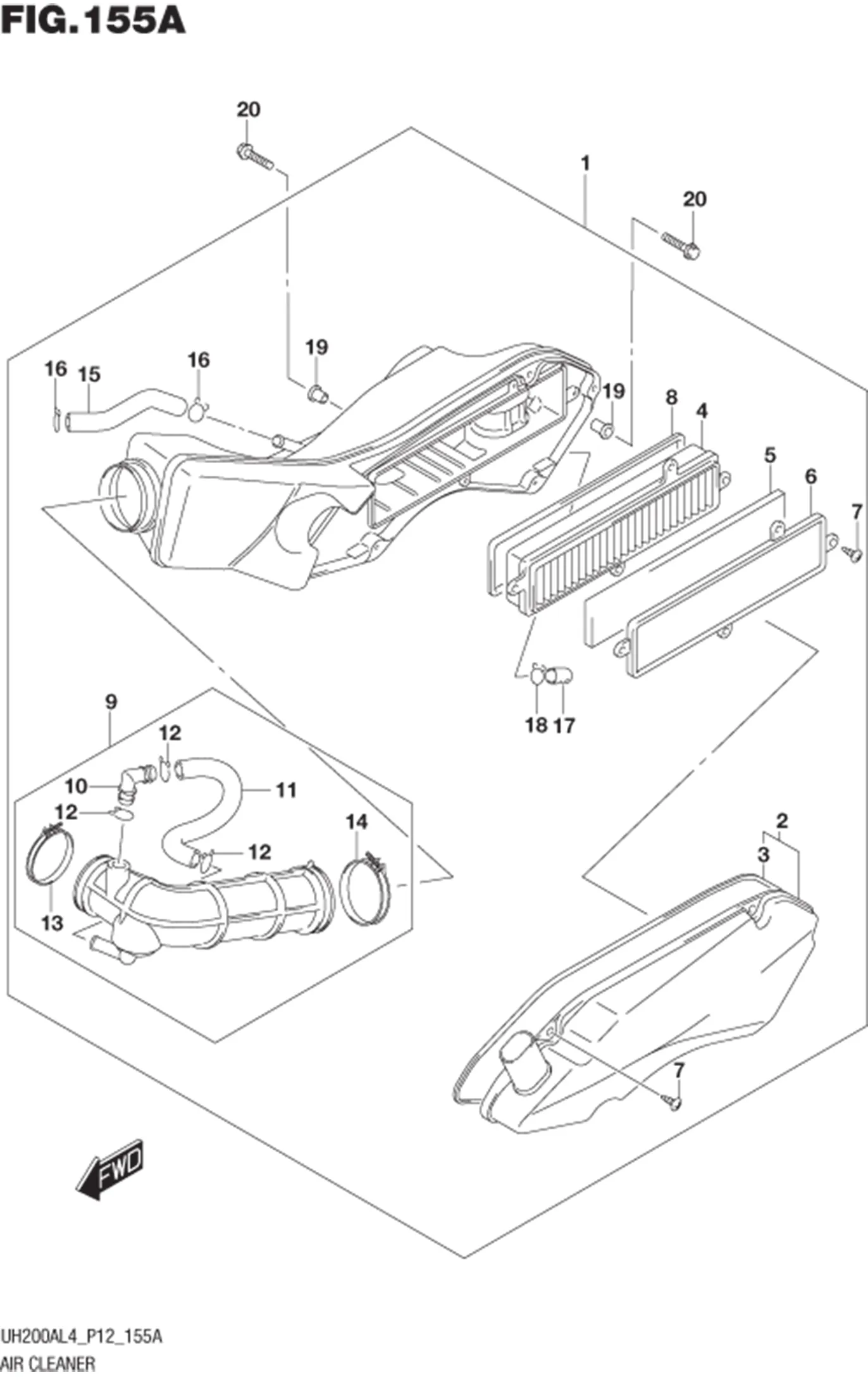

FIG.155A AIR CLEANER

FIG.155A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-03H31-000
SUB: 13700-03H03-000		 CLEANER ASSY, AIR 1 Rp2.640.000
2 13740-03H00-000 ?CAP 1 Rp188.500
3 13747-03H30-000
SUB: 13747-03H00-000		 ??GASKET 1 Rp30.000
4 13780-03H30-000
SUB: 13780-03H00-000		 ?FILTER 1 Rp337.000
5 13782-03H30-000
SUB: 13782-03H00-000		 ?PREFILTER 1 Rp134.000
6 13791-03H30-000
SUB: 13791-03H00-000		 ?HOLDER 1 Rp20.500
7 03141-0516B-000
SUB: 03141-0516A-000		 ?SCREW 9 Rp3.500
8 13746-03H30-000
SUB: 13746-03H00-000		 ?GASKET 1 Rp23.000
9 13880-03H00-000 ?TUBE, OUTLET 1 Rp263.000
10 13858-14D20-000 ??JOINT, BREATHER TUBE 1 Rp51.000
11 13884-03H00-000 ??HOSE, CHAMBER 1 Rp150.500
12 09401-14301-000 ??CLIP 3 Rp4.500
13 09402-50208-000 ??CLAMP 1 Rp29.500
14 DISCONTINUE
SUB: 09402-62208-000		 ??CLAMP 1 -
15 13853-03H00-000 ?TUBE, BREATHER 1 Rp143.500
16 09401-14301-000 ?CLIP 2 Rp4.500
17 19878-10G00-000 ?PLUG, DRAIN 1 Rp31.000
18 09401-14301-000 ?CLIP 1 Rp4.500
19 13912-20E00-000 ?COLLAR 2 Rp17.500
20 01550-0625B-000 BOLT 2 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
