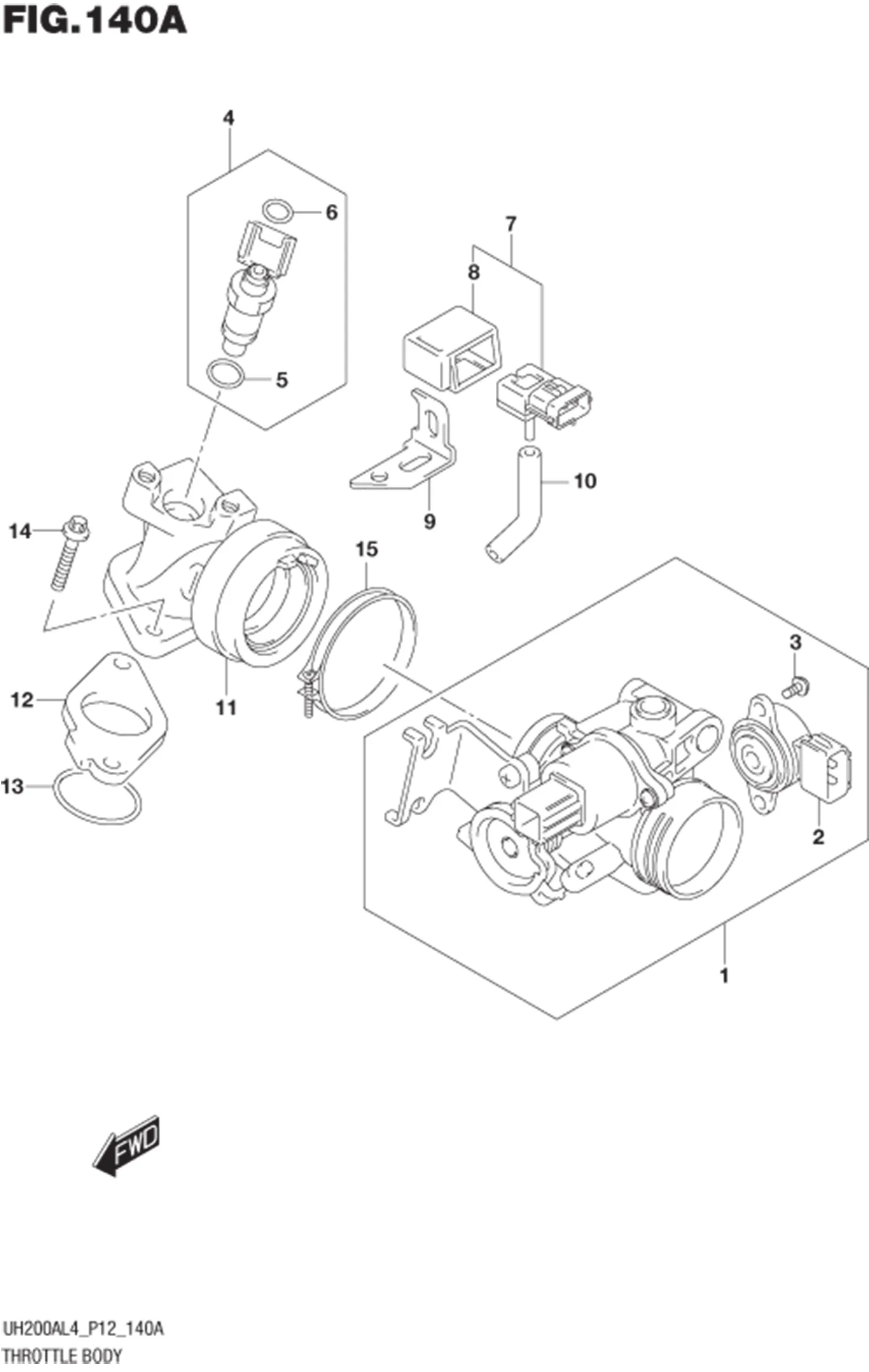

FIG.140A THROTTLE BODY

FIG.140A THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-03H10-000 BODY ASSY, THROTTLE 1 Rp5.812.000
2 13580-03H00-000 ?SENSOR 1 Rp1.485.500
3 13602-03H00-000 ?SCREW 2 Rp35.500
4 15710-03H30-000 INJECTOR ASSY, FUEL 1 Rp2.446.000
5 15716-03H00-000 ?O RING 1 Rp138.000
6 15717-03H00-000 ?O RING 1 Rp133.000
7 15630-29G10-000 SENSOR, BOOST 1 Rp1.431.500
8 15625-29G00-000 ?COVER 1 Rp67.000
9 15640-03H00-000 BRACKET 1 Rp9.500
10 18598-03H00-000 HOSE 1 Rp16.500
11 13101-49F60-000 PIPE, INTAKE 1 Rp559.000
12 13128-03H10-000 INSULATOR 1 Rp64.500
13 09280-34004-000 O RING (D:2.4,ID:33.7) 1 Rp20.000
14 01547-0625A-000
SUB: 01547-0625B-000		 BOLT 2 Rp6.500
15 09402-48208-000 CLAMP 1 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
