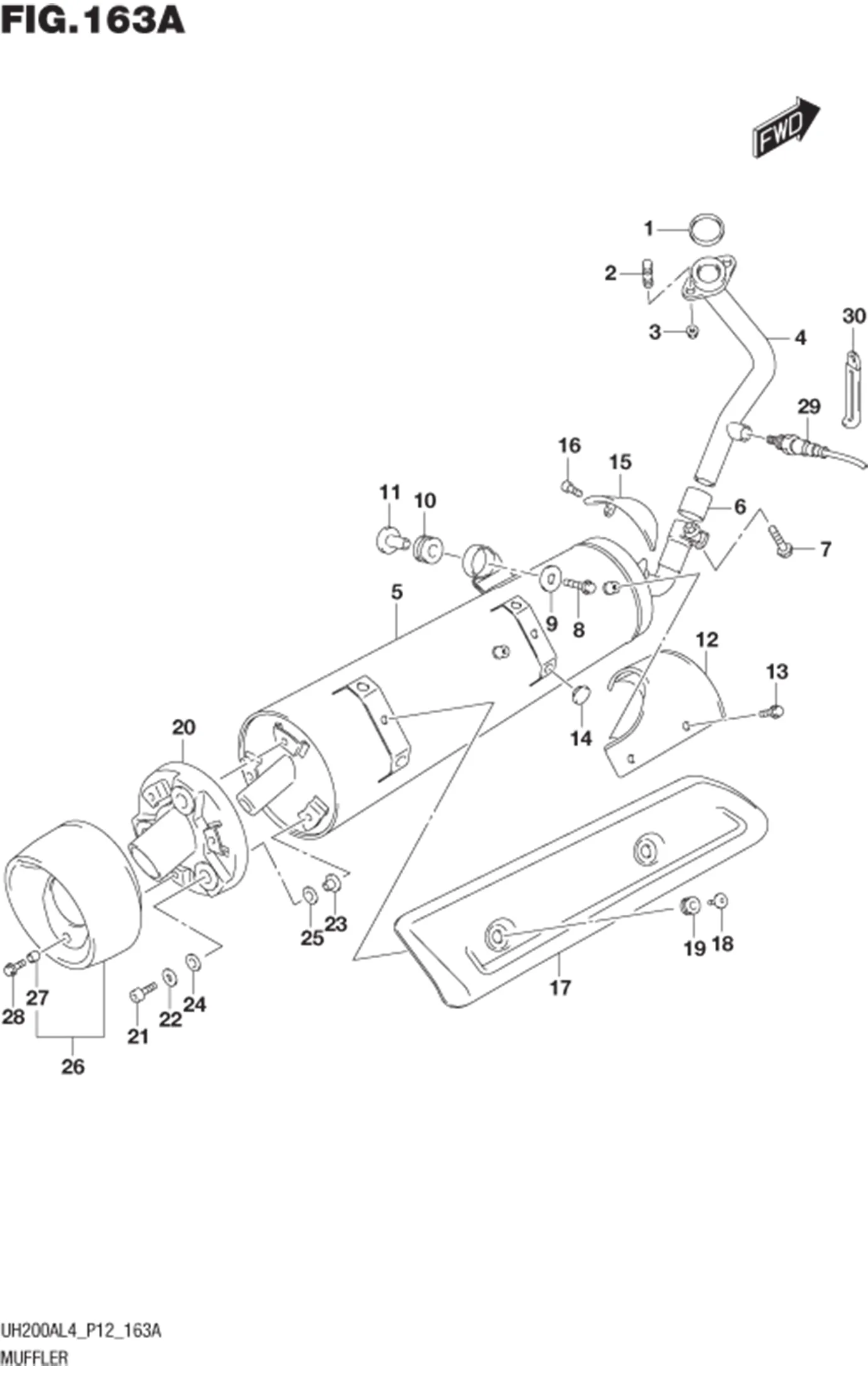

FIG.163A MUFFLER

FIG.163A MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-46E10-000
SUB: 14181-46E00-000		 GASKET, EXHAUST PIPE 1 Rp69.000
2 DISCONTINUE
SUB: 01421-0820A-000		 STUD BOLT 2 -
3 08316-1008A-000 NUT 2 Rp3.500
4 14150-03H50-000 PIPE, EXHAUST 1 Rp467.000
5 14310-03H50-000 BODY, MUFFLER 1 Rp8.408.500
6 14771-03H50-000 CONNECTOR 1 Rp107.500
7 01550-0840B-000 BOLT 1 Rp5.500
8 01550-0835A-000 BOLT 3 Rp3.500
9 09160-08143-000 WASHER (8.5X38X1.6) 3 Rp15.000
10 09320-14015-000 CUSHION 3 Rp19.000
11 09180-10161-000 SPACER 3 Rp16.500
12 14730-03H00-000 GUARD, HEAT 1 Rp83.500
13 01550-0610B-000
SUB: 01550-0610A-000		 BOLT 3 Rp3.000
14 09321-10045-000 CUSHION 4 Rp12.000
15 14750-03H40-000 COVER, MUFFLER FR 1 Rp122.500
16 07130-0612A-000 BOLT 2 Rp3.500
17 14781-03H40-000 COVER, MUFFLER 1 Rp355.500
18 09139-06087-000 SCREW (6X20) 2 Rp15.500
19 09320-08070-000 CUSHION 2 Rp64.000
20 14760-03H40-000 STAY, REAR COVER 1 Rp139.000
21 07130-0620A-000 BOLT 3 Rp16.500
22 09160-06028-000 WASHER (6.5X18X1) 3 Rp3.500
23 09180-06331-000 SPACER (6.2X8.4X10.9) 3 Rp28.000
24 09320-08080-000 CUSHION 3 Rp26.000
25 09320-08081-000 CUSHION 3 Rp22.500
26 14790-03H40-000 COVER, MUFFLER RR 1 Rp208.000
27 09180-06261-000 ?SPEACER 3 Rp14.500
28 09106-06078-000 BOLT (6X15) 3 Rp21.000
29 18213-03H01-000 SENSOR, OXYGEN 1 Rp3.292.500
30 09404-06429-000 CLAMP (L:45) 1 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
