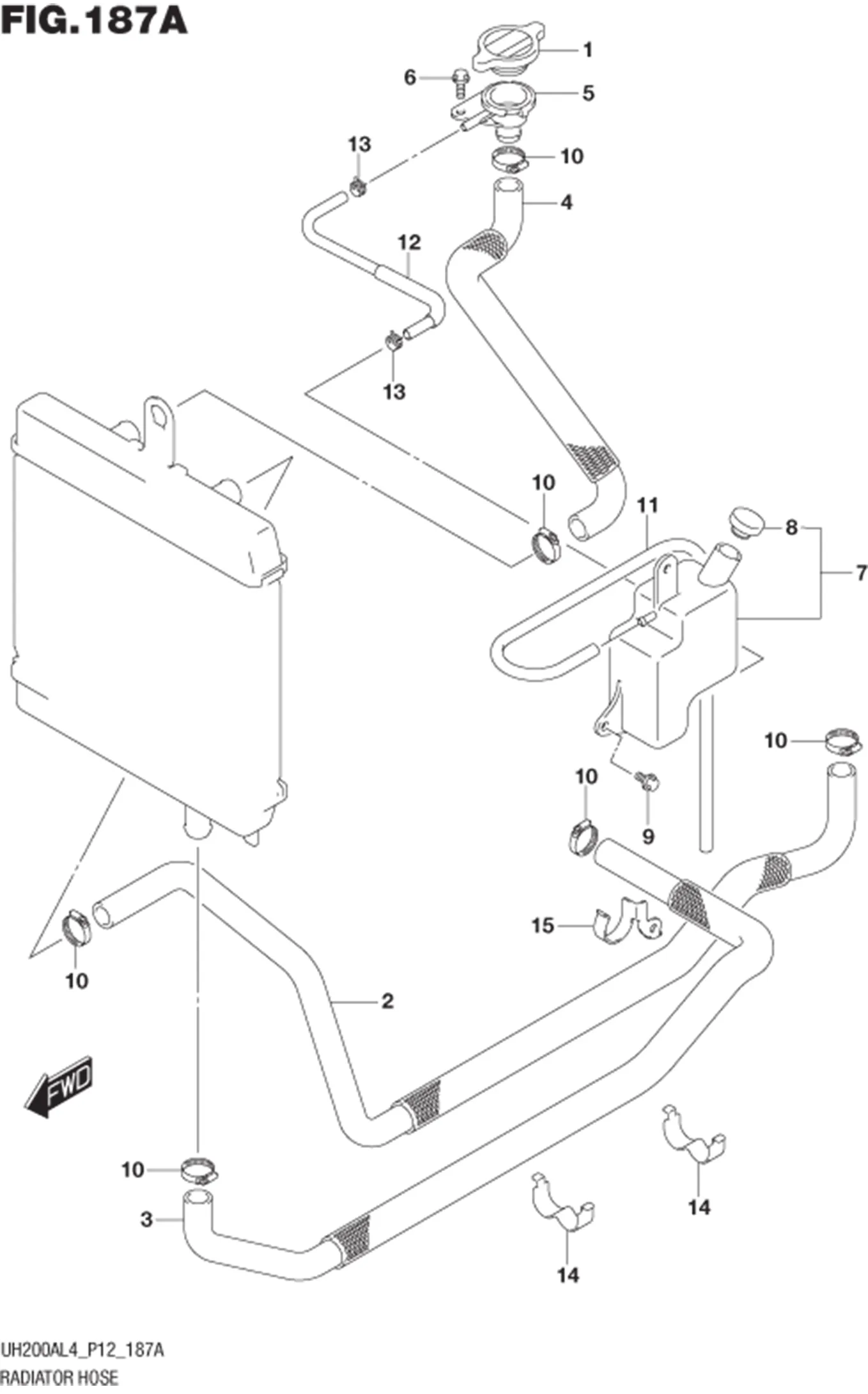

FIG.187A RADIATOR HOSE

FIG.187A RADIATOR HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 17730-14G00-000 CAP, RADIATOR 1 Rp58.500
2 DISCONTINUE
SUB: 17851-03H20-000		 HOSE, RADIATOR INLET 1 -
3 DISCONTINUE
SUB: 17852-03H20-000		 HOSE, RADIATOR OUTLET 1 -
4 DISCONTINUE
SUB: 17855-03H20-000		 HOSE, CONDUCTION 1 -
5 17791-12J00-000 CONDUCTION, RADIATOR 1 Rp169.500
6 01550-0616A-000 BOLT 1 Rp3.500
7 17910-12J00-000 TANK ASSY, RESERVOIR 1 Rp221.000
8 17932-12C00-000 ?CAP, RESERVOIR TANK 1 Rp33.500
9 09103-06285-000 BOLT 2 Rp9.000
10 09402-28513-000 CLAMP 6 Rp45.000
11 17982-03H20-000 HOSE, RESERVOIR TANK OVERFLOW 1 Rp61.000
12 17981-03H10-000 HOSE, RESERVOIR TANK INLET 1 Rp52.000
13 09401-08411-000 CLIP 2 Rp12.500
14 17859-03H00-000 PLATE, WATER HOSE CLAMP 2 Rp16.500
15 17858-12J00-000 CLAMP 1 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
