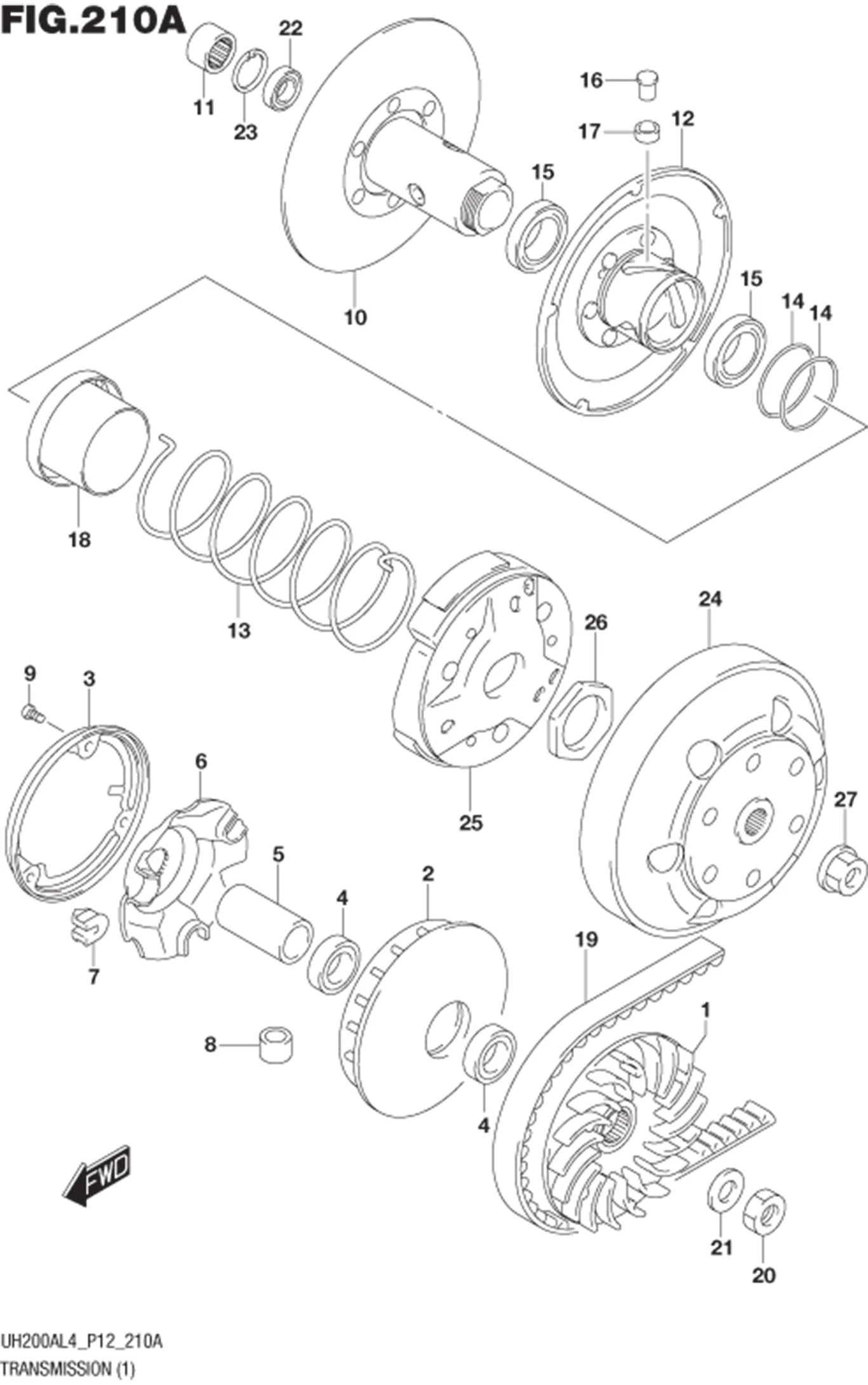

FIG.210A TRANSMISSION

FIG.210A TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
1 21110-14F01-000 FACE, FIXED DRIVE 1 Rp584.500
2 21120-14F01-000 FACE, MOVABLE DRIVE 1 Rp714.500
3 21122-14F10-000 COVER, MOVABLE DRIVE 1 Rp53.000
4 21124-14F00-000 SEAL, MOVABLE DRIVE 2 Rp51.500
5 21125-14F20-000 SPACER, MOVABLE DRIVE 1 Rp201.500
6 21431-14F40-000 PLATE, MOVABLE DRIVE 1 Rp138.500
7 21481-14F00-000 DAMPER, MOVABLE DRIVE PLATE 3 Rp23.500
8 21650-14F80-000 ROLLER, MOVABLE DRIVE 6 Rp124.500
9 02142-0410A-000 SCREW 3 Rp13.500
10 21210-14F10-000 FACE, FIXED DRIVEN 1 Rp1.738.000
11 21214-14F01-000
SUB: 21214-14F00-000		 BEARING, FIXED DRIVEN, RH 1 Rp193.000
12 21240-14F10-000 FACE, MOVABLE DRIVEN 1 Rp1.443.500
13 21243-14F20-000 SPRING, MOVABLE DRIVEN 1 Rp286.000
14 21245-14F00-000 O RING, MOVABLE DRIVEN 2 Rp38.000
15 21247-14F00-000 SEAL, MOVABLE DRIVEN 2 Rp68.500
16 21248-14F10-000 PIN, MOVABLE DRIVEN 3 Rp43.000
17 21249-14F10-000 SPACER, MOVABLE DRIVEN 3 Rp59.500
18 21471-14F20-000 SHEET, MOVABLE DRIVEN 1 Rp479.000
19 27601-14F30-000 V BELT 1 Rp1.638.500
20 09140-16001-000 NUT 1 Rp11.000
21 09164-16005-000 WASHER 1 Rp14.000
22 09262-15063-000
SUB: 09262-15053-000		 BEARING (15X28X7) 1 Rp269.000
23 08331-41289-000 CIRCLIP 1 Rp4.000
24 21220-14F10-000 HOUSING, CLUTCH 1 Rp911.500
25 21501-03H31-000
SUB: 21501-03H30-000		 CLUTCH ASSY, SHOE 1 Rp1.835.500
26 21518-14F00-000 NUT, SHOE CLUTCH 1 Rp73.500
27 09159-12068-000 NUT 1 Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
