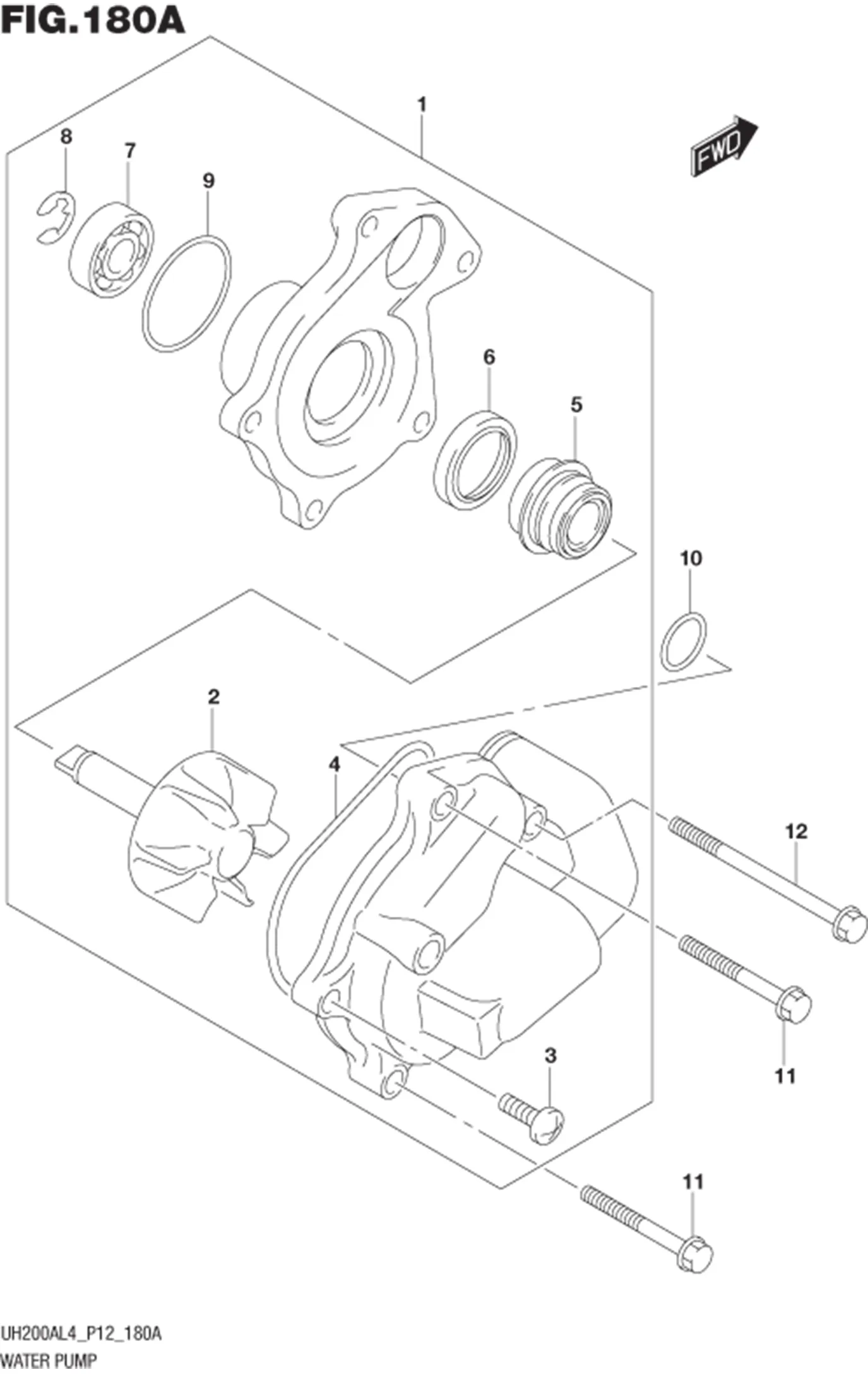

FIG.180A WATER PUMP

FIG.180A WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17400-21F31-000
SUB: 17400-21F30-000		 PUMP ASSY, WATER 1 Rp1.513.500
2 17491-21F00-000 ?IMPELLER 1 Rp290.000
3 02112-0616A-000 ?SCREW 2 Rp3.500
4 17418-14F01-000
SUB: 17418-14F00-000		 ?O RING 1 Rp35.500
5 17470-02F11-000
SUB: 17470-02F00-000		 ?MECHANICAL SEAL 1 Rp198.500
6 17461-01H00-000 ?OIL SEAL 1 Rp126.500
7 09262-10014-000 ?BEARING (10X26X8) 1 Rp124.000
8 DISCONTINUE
SUB: 08332-1108A-000		 ?E RING 1 -
9 17435-33400-000 ?O RING 1 Rp97.000
10 09280-22L01-000 O RING (D2.4 ,ID:21.8) 1 Rp4.500
11 01547-0635A-000 BOLT 2 Rp6.500
12 01547-0655A-000 BOLT 1 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
