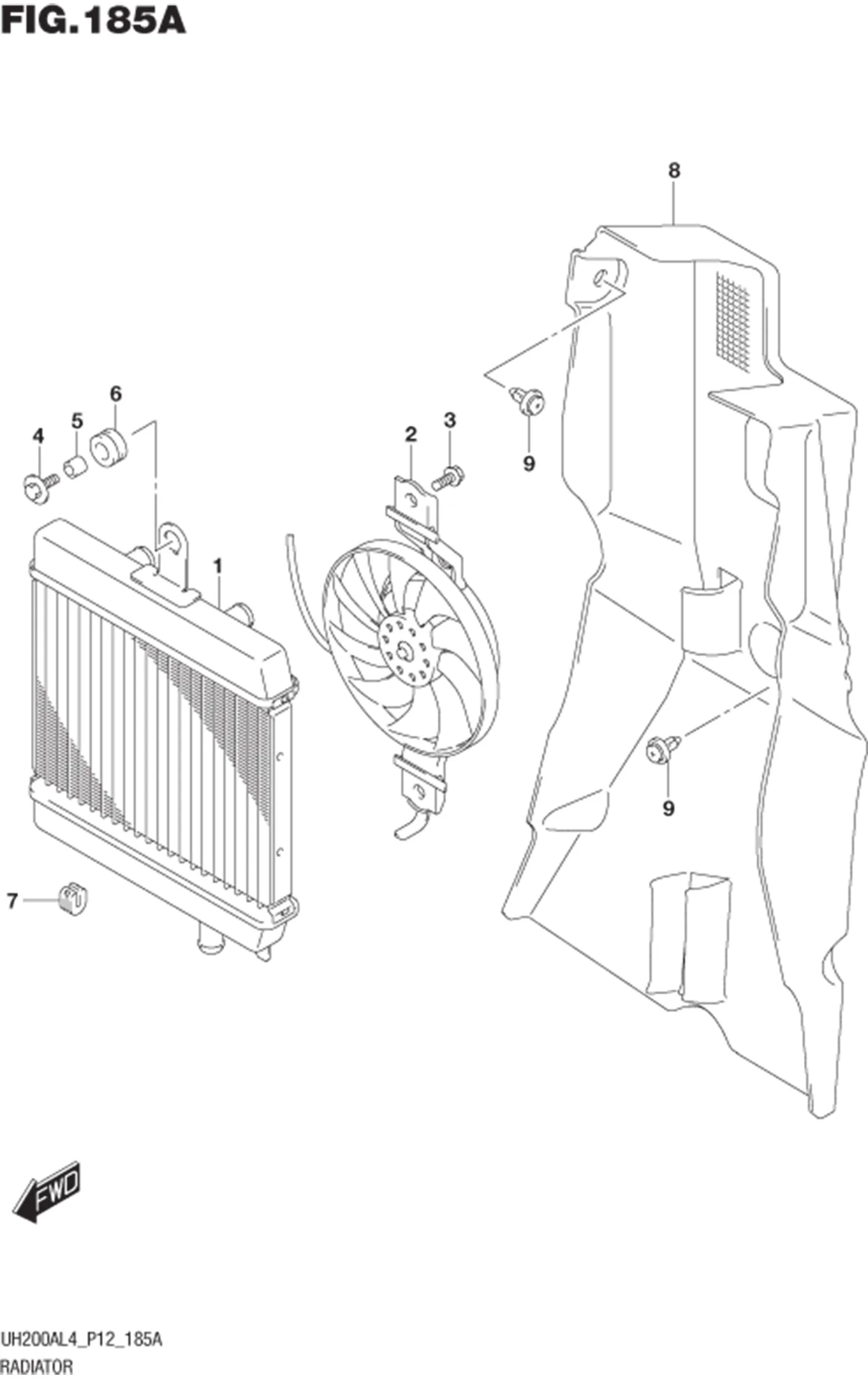

FIG.185A RADIATOR

FIG.185A RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1 17710-03H20-000 RADIATOR, WATER 1 Rp1.844.500
2 17800-03H00-000 FAN ASSY, RADIATOR 1 Rp558.500
3 01550-0616A-000 BOLT 2 Rp3.500
4 09116-06167-000 BOLT (6X20) 1 Rp7.000
5 09180-06310-000 SPACER (6.5X10X10) 1 Rp5.000
6 09320-10501-000 CUSHION 1 Rp40.500
7 17781-12J00-000 CUSHION, RADIATOR LOWER 2 Rp11.000
8 17761-03H10-000 DUCT, RADIATOR 1 Rp213.500
9 09409-06322-5PK
SUB: 09409-06322-000		 CLIP 2 Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
