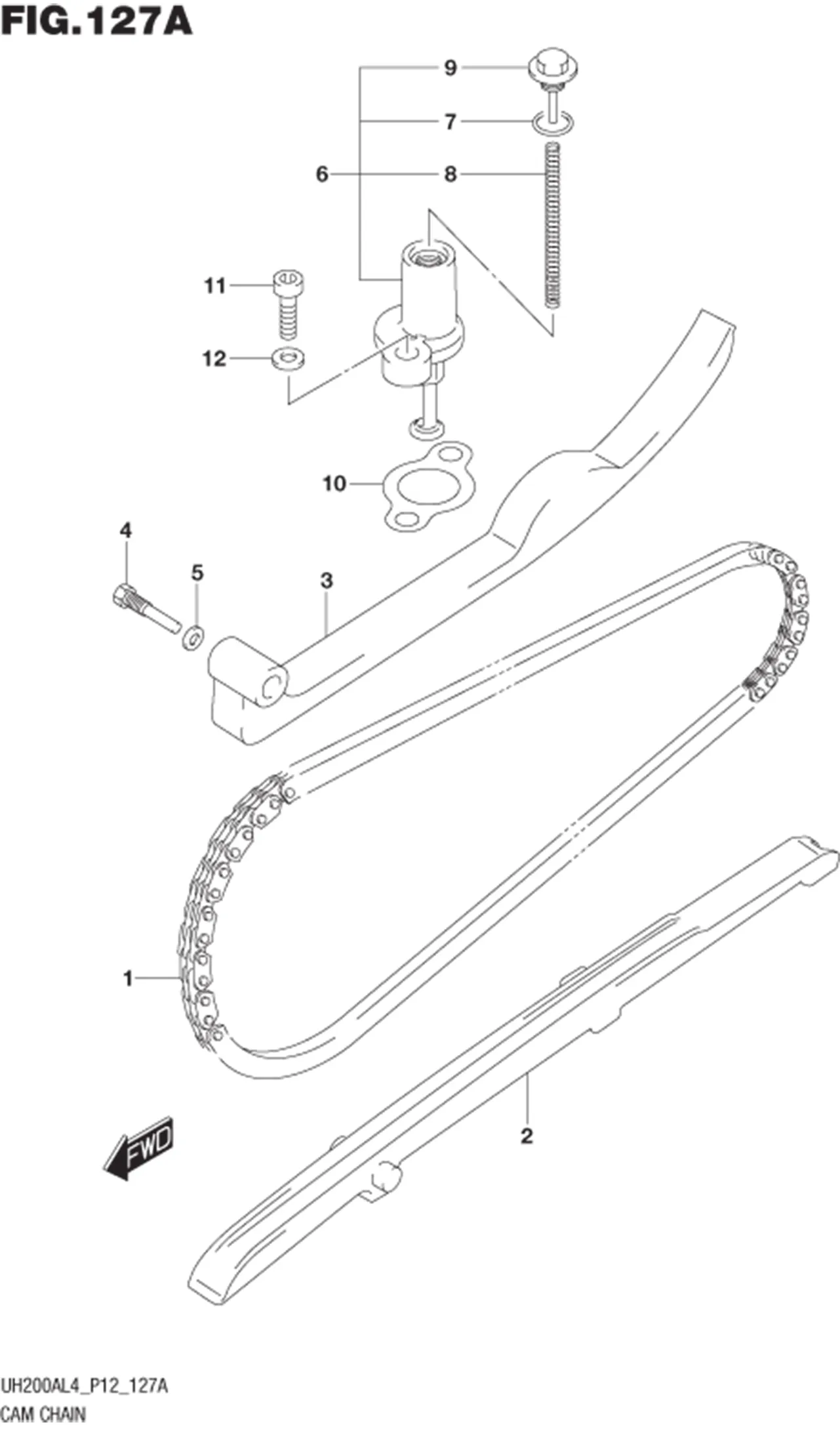

FIG.127A CAM CHAIN

FIG.127A CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12760-04B00-000 CHAIN, CAMSHAFT DRIVE 1 Rp249.500
2 12771-21F10-000 GUIDE, CAM CHAIN 1 Rp105.500
3 12811-21F10-000 TENSIONER, CAM CHAIN 1 Rp139.000
4 12812-32400-000 BOLT, CAM CHAIN TENSIONER 1 Rp21.500
5 09168-08016-000 GASKET (8.2X14X1) 1 Rp25.000
6 12830-02A00-000 ADJUSTER ASSY, TENSIONER 1 Rp654.000
7 DISCONTINUE
SUB: 12832-02A00-000		 ?O RING 1 -
8 12833-02A00-000 ?SPRING 1 Rp22.000
9 DISCONTINUE
SUB: 12834-02A00-000		 ?PLUG, ADJUSTER 1 -
10 12837-16H00-000 GASKET, TENSIONER ADJUSTER 1 Rp5.000
11 07130-0620A-000 BOLT 2 Rp16.500
12 09168-06L05-000 GASKET, TENSIONER ADJUSTER BOLT (5.8X13X1.2) 2 Rp51.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
