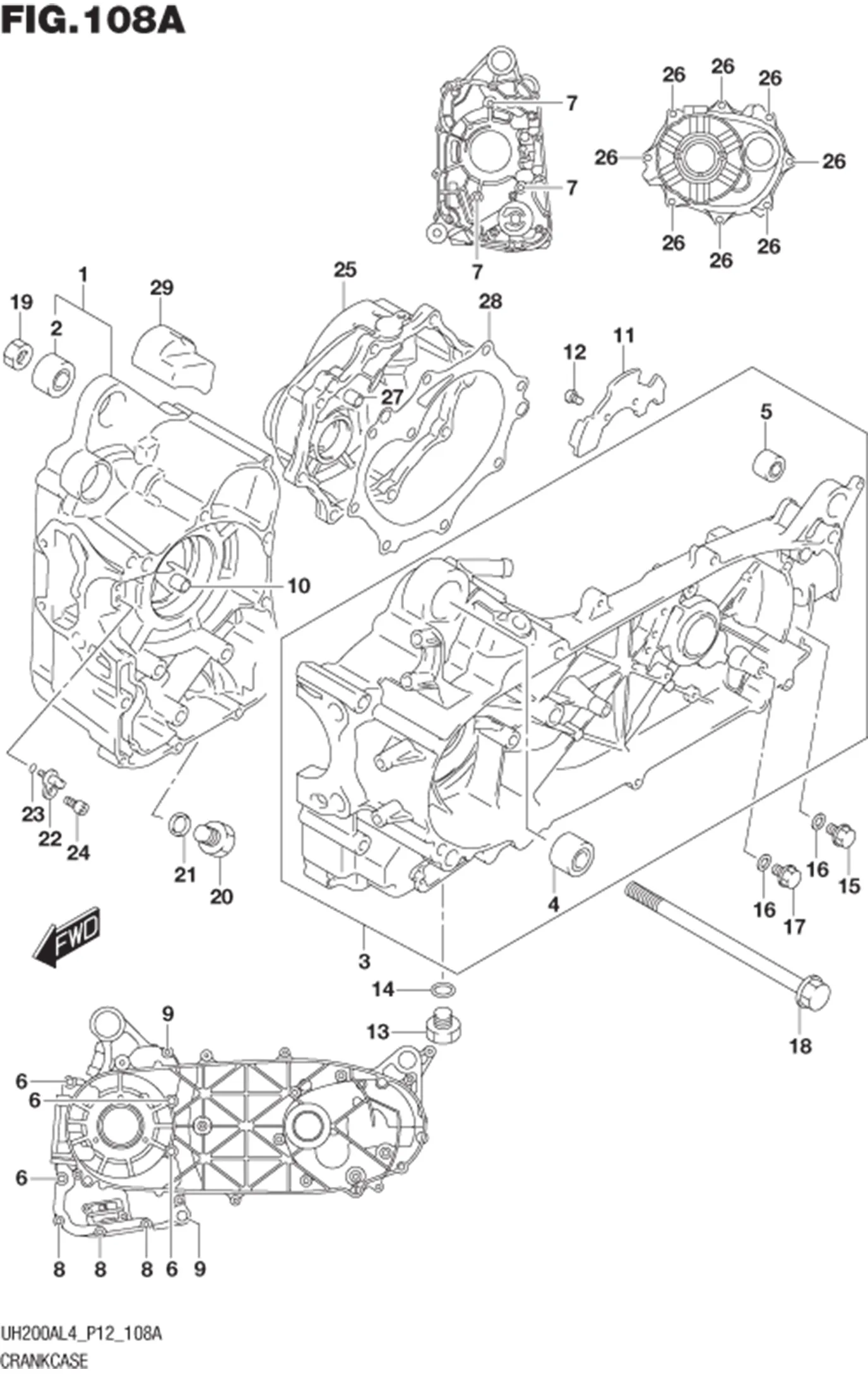

FIG.108A CRANKCASE

FIG.108A CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11310-03820-000 CRANKCASE SET, RH 1 Rp1.204.000
2 09319-12060-000 ?BUSH (12X34.1X29.5) 1 Rp65.000
3 11320-03830-000 CRANKCASE SET, LH 1 Rp1.735.000
4 09319-12060-000 ?BUSH (12X34.1X29.5) 1 Rp65.000
5 09319-10032-000 ?BUSH (10.2X22.3X20) 1 Rp24.500
6 01550-0885A-000 BOLT 4 Rp5.500
7 01550-0865B-000
SUB: 01550-0865A-000		 BOLT 3 Rp8.500
8 01547-0635A-000 BOLT 3 Rp6.500
9 01547-0655A-000 BOLT 2 Rp7.500
10 04211-11169-000 PIN 2 Rp2.000
11 11323-03H00-X07 PLATE, GEAR BOX 1 Rp9.500
12 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 2 Rp3.000
13 09247-14052-000
SUB: 09247-14026-000		 PLUG (14X12) 1 Rp7.500
14 09168-14002-000 GASKET (13.8X18.8X4.8) 1 Rp14.000
15 01550-0812A-000 BOLT 1 Rp3.500
16 09168-08016-000 GASKET 2 Rp25.000
17 01550-0812A-000 BOLT 1 Rp3.500
18 09103-12058-000 BOLT (12X215) 1 Rp58.000
19 08310-0012A-000 NUT 1 Rp17.500
20 09247-12006-000 PLUG (12X10) 1 Rp20.000
21 09168-12002-000
SUB: 09168-12021-000		 GASKET, TOP PLUG (NA) 1 Rp10.000
22 11390-03H00-000 JET, PISTON COOLING 1 Rp55.500
23 09280-04004-000 O RING (D:1.2,ID:4) 1 Rp3.500
24 09106-06075-000 BOLT (6X12) 1 Rp15.000
25 11431-12J00-000 COVER SET, GEAR BOX 1 Rp228.000
26 01550-0830A-000 BOLT 8 Rp4.000
27 04211-11169-000 PIN 2 Rp2.000
28 11484-12J00-000 GASKET, GEAR BOX COVER 1 Rp29.500
29 11186-49F00-000 SEPARATOR, OIL BREATHER 1 Rp146.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
