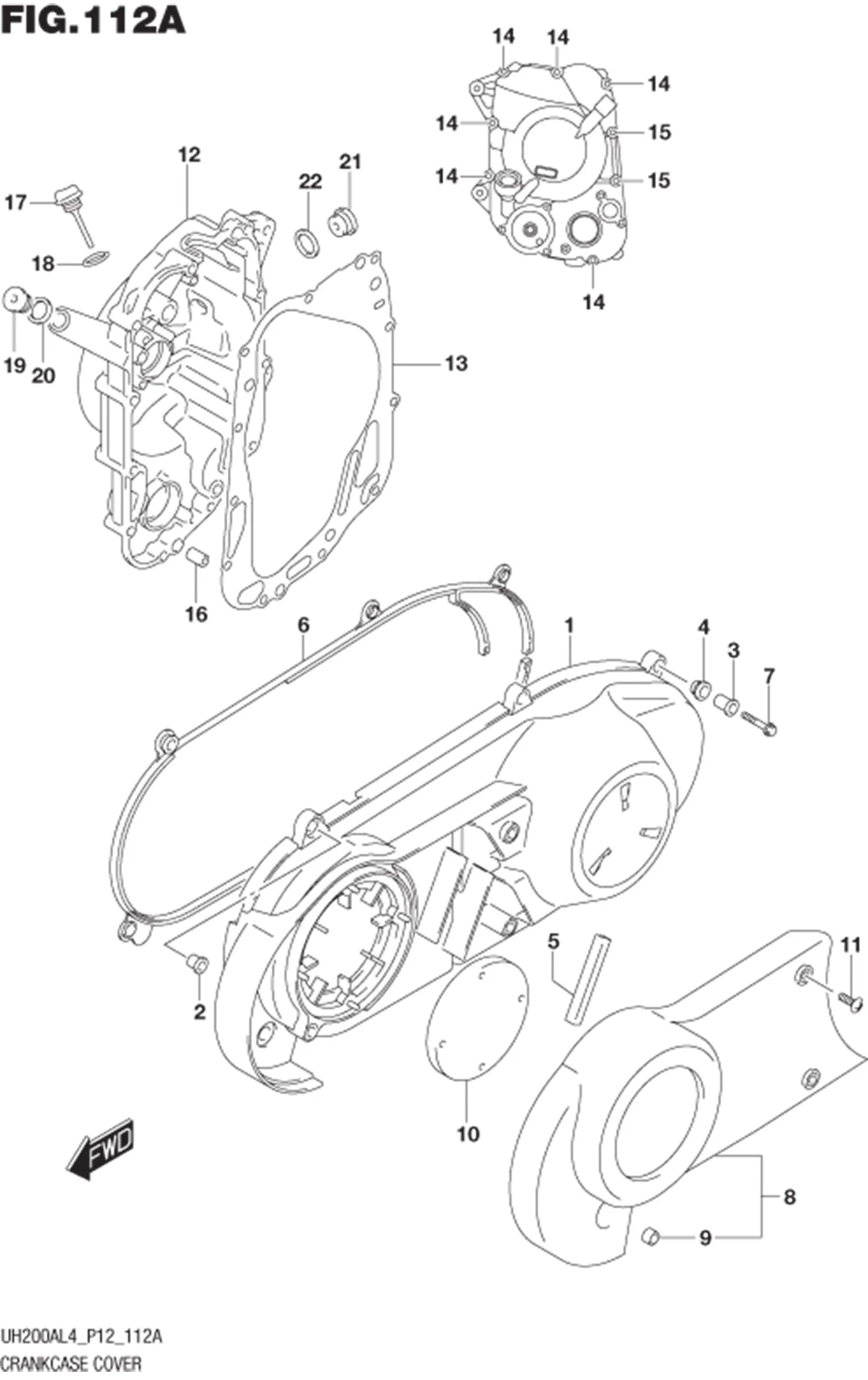

FIG.112A CRANKCASE COVER

FIG.112A CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11340-03H00-000 COVER, CLUTCH 1 Rp2.025.000
2 11342-03H00-000 SPACER 1 Rp7.000
3 11342-43E20-000 SPACER 5 Rp44.000
4 11344-43E20-000 CUSHION 5 Rp33.500
5 11345-03H00-000 MOLD 2 Rp71.000
6 11482-03H00-000 GASKET, CLUTCH COVER 1 Rp76.500
7 01547-0625A-000 BOLT 6 Rp6.500
8 11380-12J00-000
SUB: 11380-03H00-000		 DUCT, BELT COOLING 1 Rp196.000
9 09180-06283-000 ?SPACER (6.5X10X7) 3 Rp13.000
10 11388-03H01-000
SUB: 11388-03H01-X07		 FILTER, BELT COOLING 1 Rp10.500
11 02142-0616B-000 SCREW 3 Rp5.500
12 11351-03H00-000
SUB: 11351-03H00-X07		 COVER, MAGNETO 1 Rp536.500
13 11483-03H00-000
SUB: 11483-03H00-X07		 GASKET, MAGNETO COVER 1 Rp46.500
14 01547-0635A-000 BOLT 6 Rp6.500
15 01547-0645A-000 BOLT 2 Rp7.000
16 04211-09149-000 PIN 2 Rp3.000
17 11971-14F00-000 GAUGE, OIL LEVEL 1 Rp31.500
18 09280-17003-000 O RING (D:3.1,ID:16.8) 1 Rp2.000
19 09248-14011-000
SUB: 09248-14005-000		 PLUG (14X12) 1 Rp18.000
20 09168-14002-000 GASKET (13.8X18.8X4.8) 1 Rp14.000
21 09248-16012-000 PLUG (16X8) 1 Rp31.500
22 09168-16002-000 GASKET (16X22X2) 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
