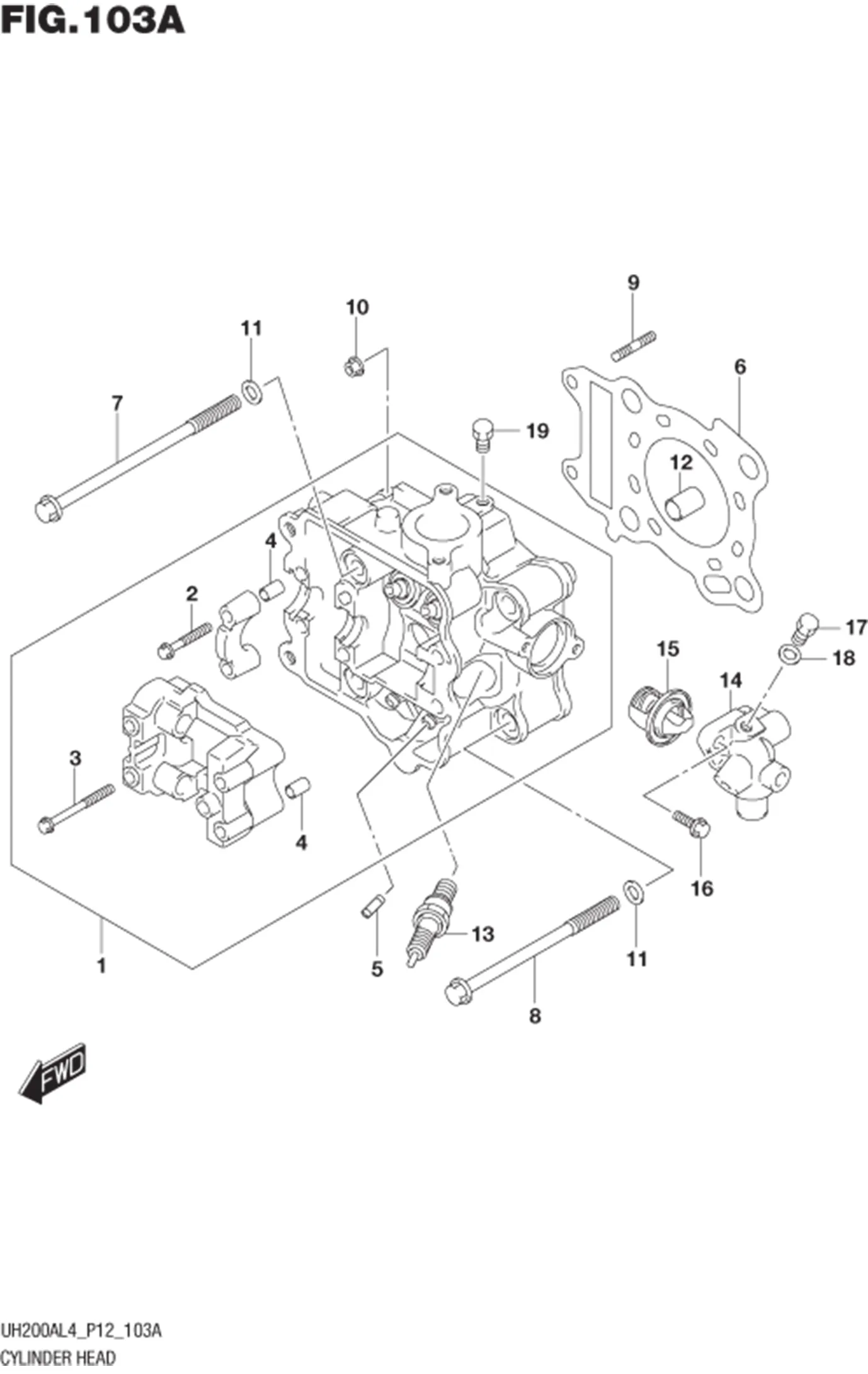

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11100-03HA1-000 SUB: 11100-03HA0-000	HEAD ASSY, CYLINDER	1	Rp1.704.000
2	09103-06026-000	?BOLT (6X39)	2	Rp15.000
3	09103-06064-000	?BOLT (6X60)	4	Rp15.500
4	09206-08001-000	?PIN (8X11)	4	Rp5.500
5	DISCONTINUE SUB: 11115-14D71-000	GUIDE, VALVE (OS:0.3)	4	-	OPT
6	11141-03H00-000	GASKET, CYLINDER HEAD	1	Rp94.500
7	09103-10276-000	BOLT (10X175)	2	Rp110.500
8	09103-10451-000	BOLT (L:145)	2	Rp109.000
9	01421-0625A-000	STUD BOLT	2	Rp7.000
10	08316-1006A-000	NUT	2	Rp2.000
11	09160-10082-000	WASHER (10.5X19X2)	4	Rp12.000
12	04211M13189-000 SUB: 04211-13189-000	PIN	2	Rp9.000
13-1	09482-00414-000	SPARK PLUG (NGK, CR7EK)	1	Rp118.000
13-6	DISCONTINUE SUB: 09482-00411-000	SPARK PLUG (DENSO, U27ETR)	1	-	OPT
13-5	DISCONTINUE SUB: 09482-00410-000	SPARK PLUG (NGK, CR9EK)	1	-	OPT
13-4	09482-00413-000	SPARK PLUG (DENSO, U24ETR)	1	-	OPT
13-3	09482-00412-000	SPARK PLUG (NGK, CR8EK)	1	Rp149.000	OPT
13-2	DISCONTINUE SUB: 09482-00415-000	SPARK PLUG (DENSO, U22ETR)	1	-
14	17661-14G00-000	COVER, THERMOSTAT	1	Rp139.000
15	17670-08D41-000 SUB: 17670-08D30-000	THERMOSTAT, WATER	1	Rp319.000
16	01547-0620B-000 SUB: 01547-0620A-000	BOLT	2	Rp6.500
17	17568-50F00-000	BOLT, THERMOSTAT COVER	1	Rp35.500
18	09168-06026-000	GASKET (6.4X11.5X0.8)	2	Rp20.000
19	17568-50F00-000	BOLT	1	Rp35.500
