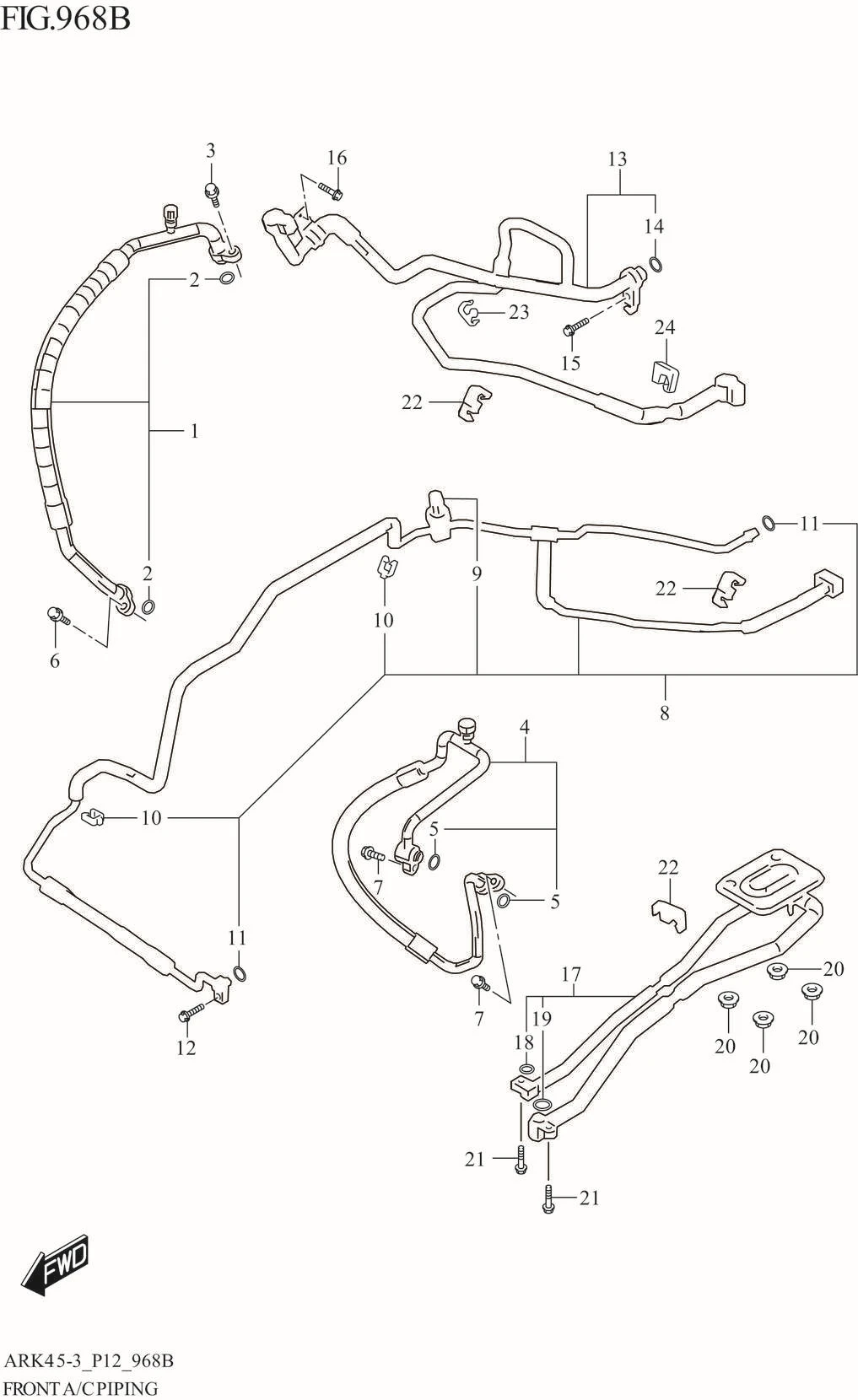

FIG. 968B FRONT A/C PIPING (GL,GX,GX_LTD)

No	No. Part	Description	Qty	Price Per Pcs
1	95710-73R00-000	HOSE,SUCTION	1	Rp272.000
2	95896-50G00-000 SUB: 95896B50G00N000	.O-RING (D:2.4,ID:13.4)	2	Rp19.000
3	01550-0620C-000	BOLT (6X20)	1	Rp5.500
4	95720-73R00-000	HOSE,DISCHARGE	1	Rp263.000
5	95895-50G00-000 SUB: 95895B50G00N000	.O-RING (D:2.4,ID:10.8)	2	Rp12.500
6	01550-0620B-000 SUB: 01550B0620BN000	BOLT (6X20)	1	Rp3.500
7	01550-0620B-000 SUB: 01550B0620BN000	BOLT (6X20)	2	Rp3.500
8	95731-73R30-000	HOSE,LIQUID NO.1	1	Rp566.500
9 #	95546-58J00-000 SUB: 95546B58J00N000	.SENSOR,PRESSURE	1	Rp326.000
10	95761-73R10-000	.CLAMP	2	Rp10.500
11	95891-50G00-000 SUB: 95891B50G00N000	.O-RING (D:1.8,ID:6.7)	2	Rp12.500
12	01550-0620C-000	BOLT (6X20)	1	Rp5.500
13	95741-73R30-000	PIPE,SUCTION NO.1	1	Rp317.500
14	95896-50G00-000 SUB: 95896B50G00N000	.O-RING (D:2.4,ID:13.4)	1	Rp19.000
15	01550-0620B-000 SUB: 01550B0620BN000	BOLT (6X20)	1	Rp3.500
16	DISCONTINUE SUB: 02162-0612C-000	SCREW (6X20)	1	-
17	95740-73R00-000	PIPE ASSY,SUCT & LIQUID NO.2	1	Rp482.500
18	95891-50G00-000 SUB: 95891B50G00N000	.O-RING (D:1.8,ID:6.7)	1	Rp12.500
19	95896-50G00-000 SUB: 95896B50G00N000	.O-RING (D:2.4,ID:13.4)	1	Rp19.000
20	09159-06096-000	NUT (M6)	4	Rp25.000
21	01550-0620B-000 SUB: 01550B0620BN000	BOLT (6X20)	2	Rp3.500
22	95761-73R00-000	CLAMP	3	Rp7.500
23	95762-68K10-000 SUB: 95762B68K10N000	CLAMP	1	Rp6.500
24	09403-12321-000	CLAMP	1	Rp23.500
