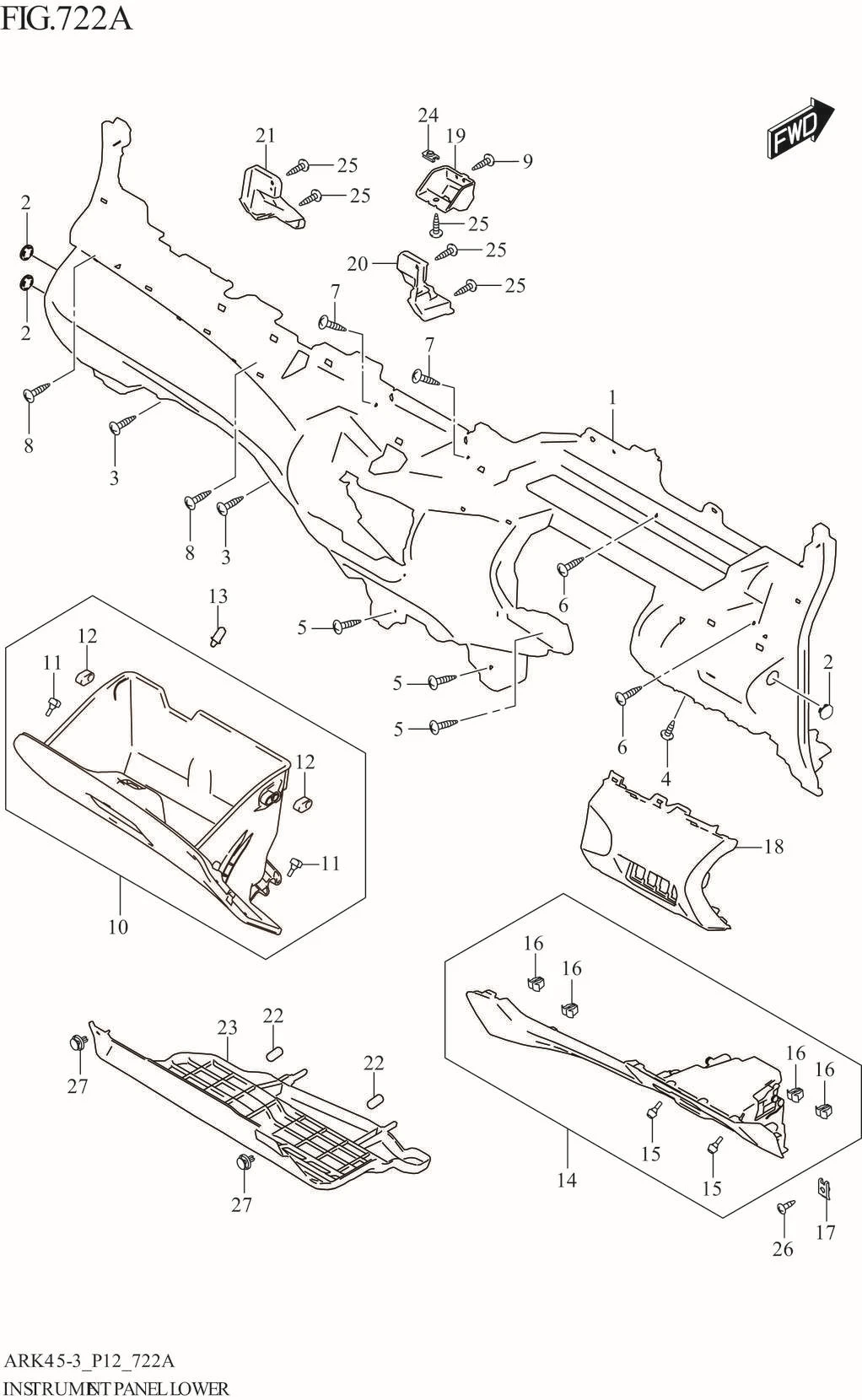

FIG. 722A INSTRUMENT PANEL LOWER

No	No. Part	Description	Qty	Price Per Pcs
1-2	73121-73R00-5PK	PANEL,INSTRUMENT MAIN LOWER (BLACK)	1	Rp366.000
1-1	73121-73R00-V6N	PANEL,INSTRUMENT MAIN LOWER (BEIGE)	1	Rp357.500
2	73871-73H00-5PK	CAP,I/P SIDE (BLACK)	3	Rp43.500
3	09132-05049-000	SCREW (5X12)	2	Rp21.000
4	09132-05049-000	SCREW (5X12)	1	Rp21.000
5	09132-05049-000	SCREW (5X12)	3	Rp21.000
6	09132-05049-000	SCREW (5X12)	2	Rp21.000
7	09132-05049-000	SCREW (5X12)	2	Rp21.000
8	09132-05049-000	SCREW (5X12)	2	Rp21.000
9	03541-0516A-000	SCREW	1	Rp3.500
10-1	73410-73R00-V6N	BOX,GLOVE (BEIGE)	1	Rp230.000
10-2	73410-73R00-5PK	BOX,GLOVE (BLACK)	1	Rp275.500
11	73461-54M00-000	.CUSHION	2	Rp32.000
12	73413M65D00-000	.CUSHION,GLOVE BOX	2	Rp6.500
13	73461-77R00-000	CUSHION,GLOVE BOX	1	Rp33.500
14-1	73810-73R00-V6N	COVER,STRG COLUMN HOLE (BEIGE)	1	Rp92.000
14-2	73810-73R00-5PK	COVER,STRG COLUMN HOLE (BLACK)	1	Rp115.500
15	73413M82C00-000	.CUSHION,GLOVE BOX LID	2	Rp11.500
16	09409-08351-000	.CLIP	4	Rp21.000
17	09148-05045-000 SUB: 09148B05045N000	NUT (M5)	1	Rp4.000
18-1	73833-73R10-5PK	BEZEL,I/P SW (BLACK)	1	Rp70.500
18-2	73833-73R00-V6N	BEZEL,I/P SW (BEIGE)	1	Rp70.500
18-3	73833-73R00-5PK	BEZEL,I/P SW (BLACK)	1	Rp70.500
19	73841-73R00-000	COVER,GLOVE BOX STRIKER	1	Rp14.000
20-1	73863-73R00-V6N	COVER,GLOVE BOX INSIDE (BEIGE)	1	Rp9.000
20-2	73863-73R00-5PK	COVER,GLOVE BOX INSIDE (BLACK)	1	Rp8.000
21-1	73864-73R00-V6N	COVER,GLOVE BOX OUTSIDE (BEIGE)	1	Rp9.000
21-2	73864-73R00-5PK	COVER,GLOVE BOX OUTSIDE (BLACK)	1	Rp8.000
22	73132-57L00-000	CAP,I/P PIN	2	Rp38.000
23	73891-73R00-000	COVER,I/P UNDER ASST	1	Rp43.500
24	09148-05045-000 SUB: 09148B05045N000	NUT (M5)	1	Rp4.000
25	03541-0516A-000	SCREW	5	Rp3.500
26	03541-0516A-000	SCREW	1	Rp3.500
27	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
