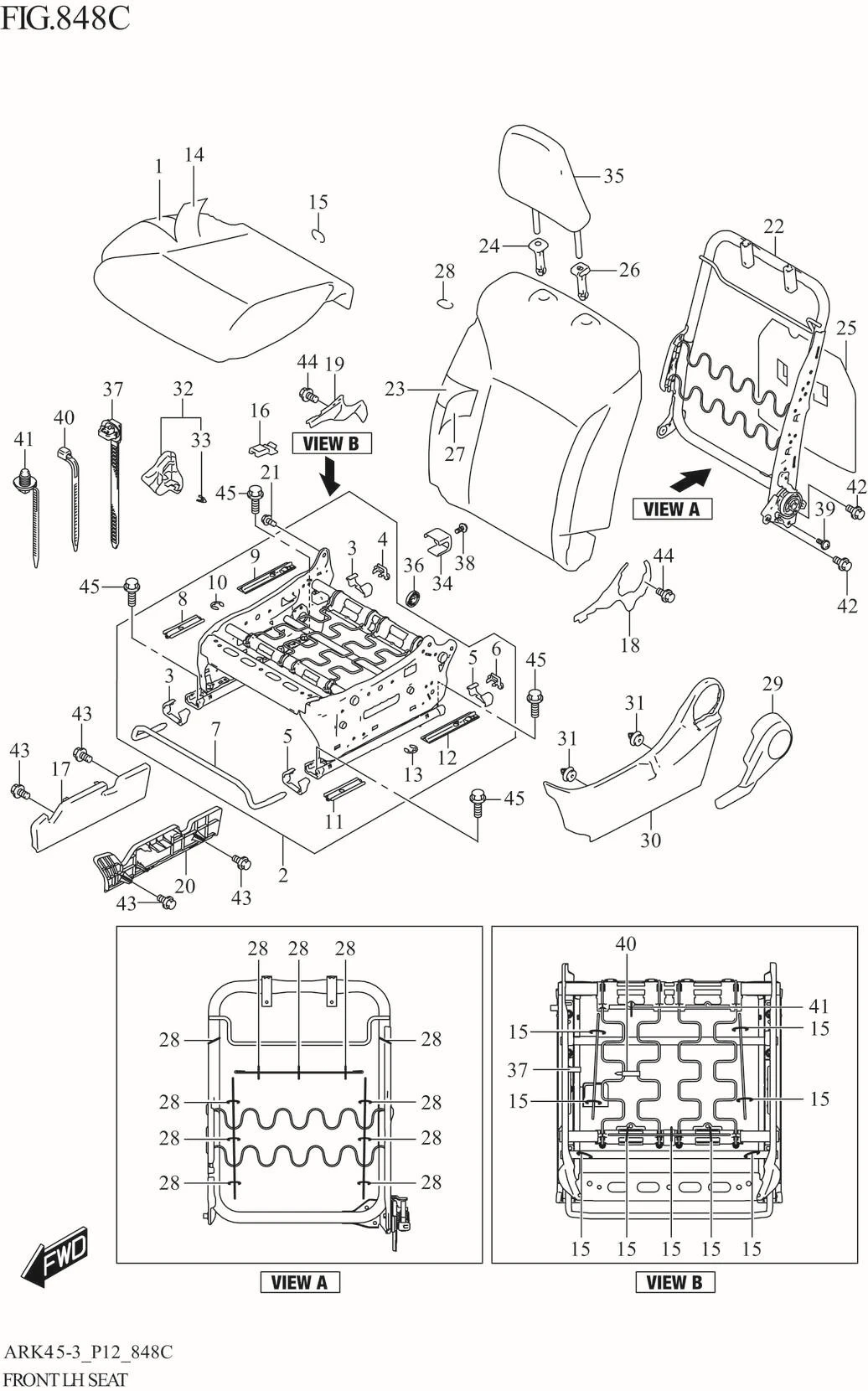

FIG. 848C FRONT LH SEAT (XL7)

No	No. Part	Description	Qty	Price Per Pcs
1	85107-73R00-000	PAD S/ASSY,FR CUSH	1	Rp495.000
2	85603-73R10-000	FRAME ASSY,FR CUSH,L	1	Rp2.561.500
3	86652M74P50-000	.CAP,FR ADJ LWR	2	Rp5.500
4	86653M74P50-000	.CAP,FR ADJ UPR	1	Rp5.500
5	86652M74P50-000	.CAP,FR ADJ LWR	2	Rp5.500
6	86653M74P50-000	.CAP,FR ADJ UPR	1	Rp5.500
7	86691-73R00-000	.HANDLE,FR SEAT ADJUSTER	1	Rp130.500
8	86656-74P50-000	.PROTECTOR,FR ADJ FR	1	Rp8.500
9	86657-68P00-000	.PROTECTOR,FR ADJUSTER REAR	1	Rp10.000
10	86658-68P00-000	.RING,FR ADJUSTER REAR	1	Rp6.500
11	86656-74P50-000	.PROTECTOR,FR ADJ FR	1	Rp8.500
12	86657-68P00-000	.PROTECTOR,FR ADJUSTER REAR	1	Rp10.000
13	86658-68P00-000	.RING,FR ADJUSTER REAR	1	Rp6.500
14	85680-73RA0-D3C	TRIM,FR CUSH,L	1	Rp781.000
15	09387-19001-000	RING (OD:22.6)	9	Rp9.000
16	85192-74P00-000	HOLDER,HARNESS	1	Rp6.500
17	85223-73R00-000	COVER,FR RISER,R	1	Rp19.000
18	85242-68P00-5PK	COVER,FR RCLNG INS LWR,L (BLACK)	1	Rp10.500
19	85242-73R00-5PK	COVER,RCLNG INS LWR,L (BLACK)	1	Rp8.000
20	85243-73R00-000	COVER,FR RISER,L	1	Rp20.500
21	85295-58J01-000	BOLT,FR BACK FIX	1	Rp34.000
22	85803-73R00-000	FRAME ASSY,FR BACK,L	1	Rp1.012.000
23	85860-73R00-000	PAD,FR BACK,L	1	Rp346.000
24	85341-73R00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp53.000
25	85369-74L00-000	SILENCER,FR BACK	1	Rp40.000
26	85840-73R00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp53.000
27	85880-73RB0-D3C	TRIM,FR BACK,L	1	Rp2.274.000
28	09387-19001-000	RING (OD:22.6)	11	Rp9.000
29	85711-62R00-5PK	KNOB,RCLNG,L (BLACK)	1	Rp86.000
30	85721-73R00-5PK	COVER,FR RCLNG OUT,R (BLACK)	1	Rp49.000
31	09409-10313-000	CLIP	2	Rp14.000
32	85741-68P10-5PK	COVER,RCLNG INS,L (BLACK)	1	Rp11.500
33	85249M68P00-000	.CLIP	1	Rp9.500
34	85780-81P00-000	COVER,FR HARNESS BRACKET,L	1	Rp6.500
35	86401-73R00-QRB	HEADRESTRAINT ASSY (BLACK)	1	Rp730.500
36	87286-81P00-000	BUSH,FR BACK FIX	1	Rp37.000
37	96619-59L00-000	CLAMP	1	Rp24.500
38	09132-04037-000	SCREW (4X10)	1	Rp15.000
39	09132-04037-000	SCREW (4X10)	1	Rp15.000
40	36990-25G00-000	CLAMP (L:125)	1	Rp13.000
41	09407-17403-000	CLAMP (L:154)	1	Rp3.500
42	01550-1016A-000 SUB: 01550B1016AN000	BOLT (10X16)	2	Rp5.500
43	03541-0410A-000	SCREW	4	Rp11.000
44	03541-0410A-000	SCREW	2	Rp11.000
45	09119-08107-000	BOLT (8X25)	4	Rp5.500
