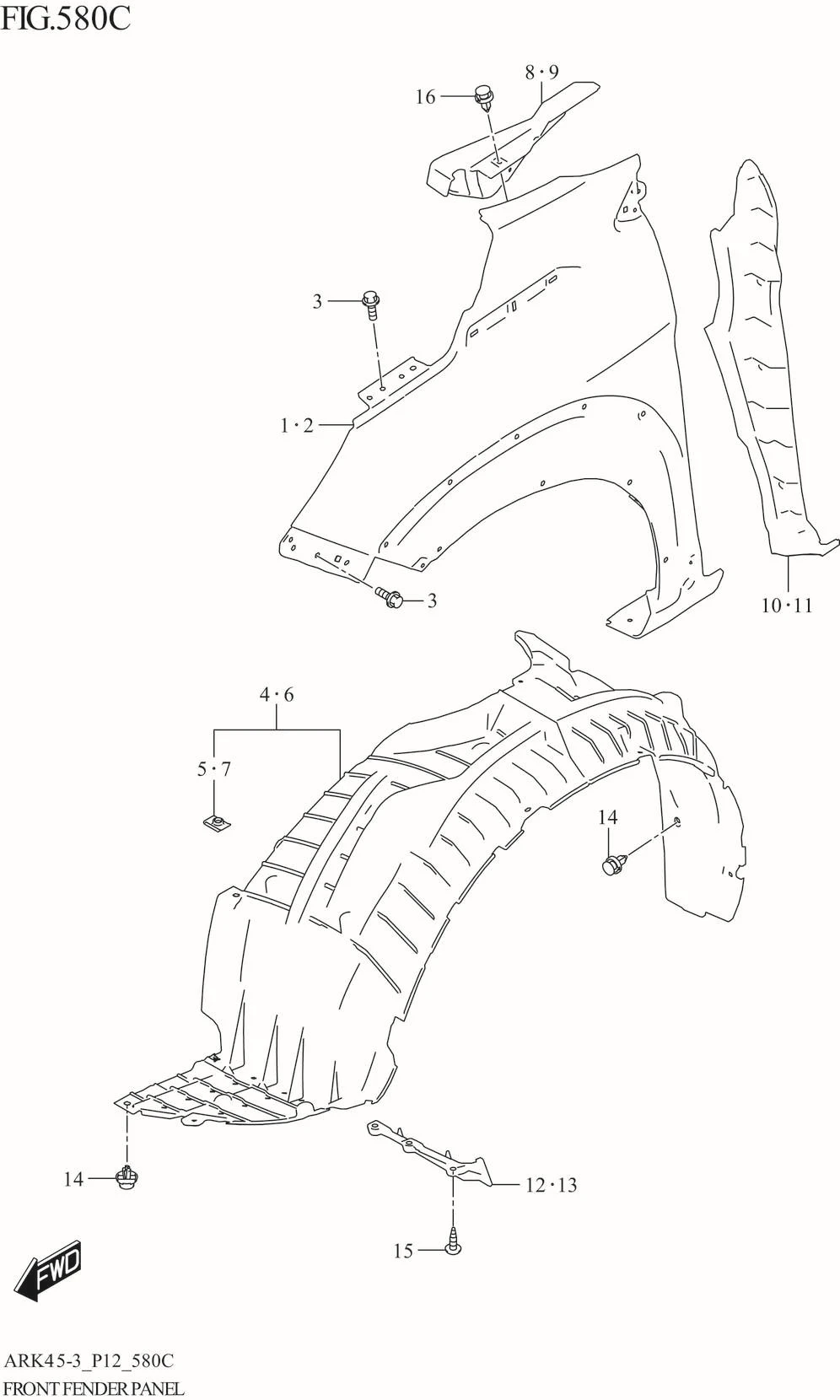

FIG. 580C FRONT FENDER PANEL (XL7)

FIG. 580C FRONT FENDER PANEL (XL7)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	57611-72SA0-000	PANEL,FRONT FENDER,R	1	Rp851.000
2	57711-72SA0-000	PANEL,FRONT FENDER,L	1	Rp851.000
3	DISCONTINUE SUB: 01550B0612AN000	BOLT (6X12)	16	-
4	72321-72SA0-000	LINING,FRONT FENDER,R	1	Rp159.000
5	09148-05075-000	.NUT	1	Rp14.000
6	72322-72SA0-000	LINING,FRONT FENDER,L	1	Rp159.000
7	09148-05075-000	.NUT	1	Rp14.000
8	72481-72SA0-000	COVER,FR FENDER UPPER,R	1	Rp31.000
9	72482-72SA0-000	COVER,FR FENDER UPPER,L	1	Rp31.000
10	72351-73R00-000	COVER,FRONT FENDER,R	1	Rp24.000
11	72352-73R00-000	COVER,FRONT FENDER,L	1	Rp24.000
12	72323-72SA0-000	STRAKE,FRONT FENDER,R	1	Rp162.000
13	72324-72SA0-000	STRAKE,FRONT FENDER,L	1	Rp162.000
14	09409-07340-000	CLIP (6.8X11.5)	18	Rp17.500
15	03541-0516A-000	SCREW	6	Rp3.500
16	09409-08010-000	CLIP	6	Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
