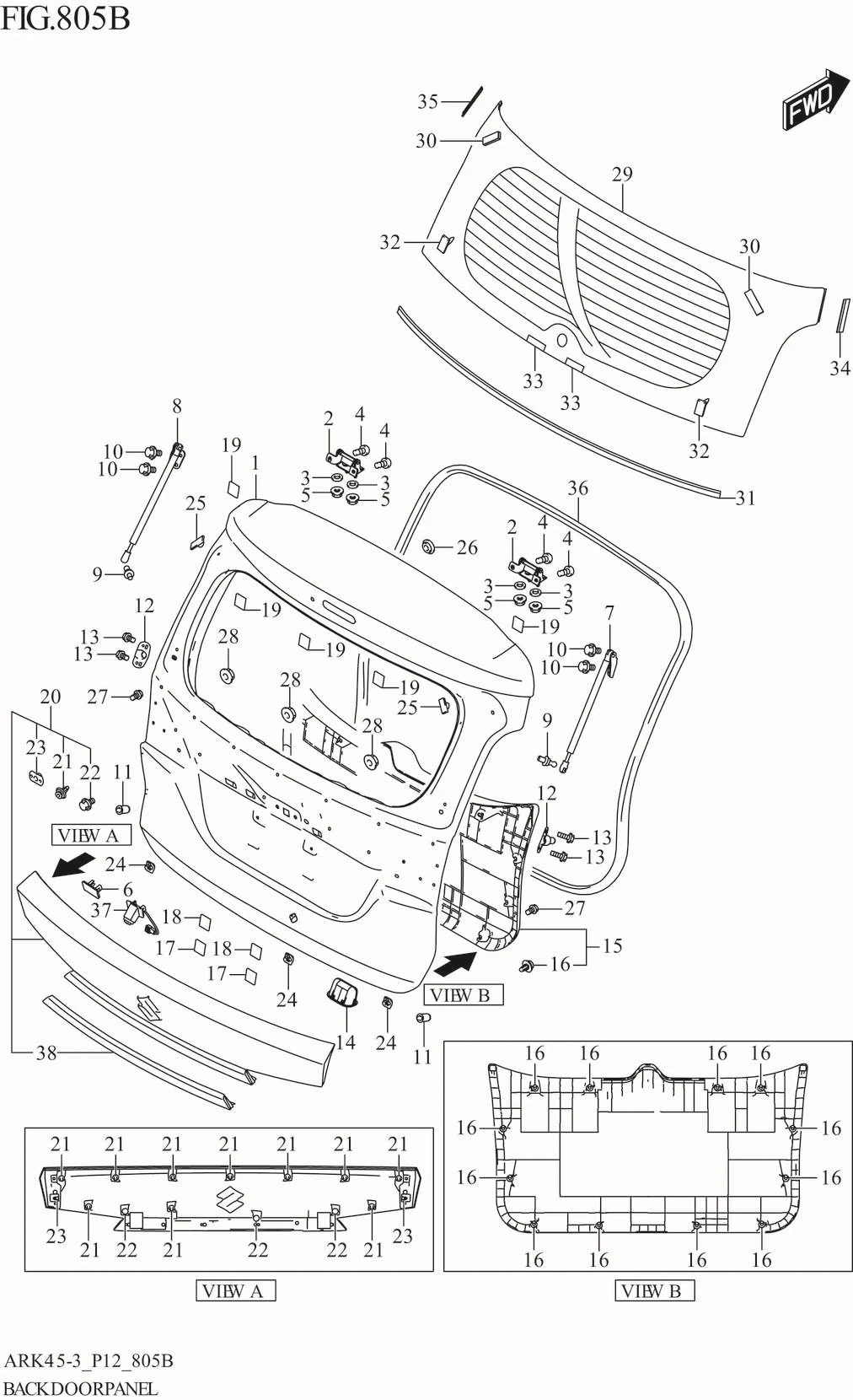

FIG. 805B BACK DOOR PANEL (GL,GX,GX_LTD)

No	No. Part	Description	Qty	Price Per Pcs
1-2	69100-73R21-000 SUB: 69100-73R20-000	PANEL ASSY,BACK DR	1	Rp2.496.500
1-1	69100-73R11-000 SUB: 69100-73R10-000	PANEL ASSY,BACK DR	1	Rp2.269.500
2	69510-73R00-000	HINGE,BACK DR	2	Rp49.500
3	69571M76G00-000	.PACKING,BACK DR HNG	4	Rp6.500
4	09111-06086-000	BOLT (6X12)	4	Rp16.000
5	08361-2508A-000	NUT	4	Rp16.500
7	81850M73R00-000	BALANCER,BACK DOOR,R	1	Rp282.000
8	81860M73R00-000	BALANCER,BACK DOOR,L	1	Rp282.000
9	81871M68P01-000	BALLSTUD,BACK DR BALANCER	2	Rp31.000
10	09113-08002-000	BOLT (8X12)	4	Rp25.500
11	82683-73R00-000	CUSHION,BACK DOOR LOWER	2	Rp19.500
12	82760-73R00-000	CUSHION,BACK DOOR SIDE	2	Rp25.000
13	02162-0616B-000	SCREW (6X16)	4	Rp15.500
14	82841-82G02-000 SUB: 82841B82G02N000	HANDLE,BACK DR INNER	1	Rp7.000
15-2	83770-73R00-5PK	TRIM,BACK DOOR (BLACK)	1	Rp513.000
16	09409-10327-000	.CLIP	12	Rp5.000
17	44281-29C00-000 SUB: 44281B29C00N000	CUSHION	2	Rp6.000
18	77151-82000-000 SUB: 77151B82000N000	FILM	2	Rp7.000
19	77151-82000-000 SUB: 77151B82000N000	FILM	5	Rp7.000
20-8	83940-73R10-ATR	GARNISH,BACK DR LIC (BLACK,CHROME)	1	Rp788.500
21	71812-78F00-000 SUB: 71812B78F00N000	.CLIP	10	Rp9.000
22	83947-73R00-000	.BOLT,BACK DR GARNISH	3	Rp27.500
23	09146M06003-000	.NUT	2	Rp7.500
24	83994-73R00-000	CAP,BACK DR DRAIN HOLE	3	Rp5.500
25	84515-65D00-000	FEMALE,GLASS FASTENER NO.2	2	Rp45.500
26	09250M20031-000 SUB: 09250M20L02-000	CAP (OD:25.8)	1	Rp4.500
27	02162-0616B-000	SCREW (6X16)	2	Rp15.500
28	08316-1006A-000	NUT (6X12)	3	Rp2.000
29-4	84571-73R20-000	GLASS,BACK DOOR WINDOW	1	Rp680.000
29-2	84571-73R10-000	GLASS,BACK DOOR WINDOW	1	Rp430.000
30	84513-76F00-000	.MALE,GLASS FASTENER NO.2	2	Rp38.500
31	84573-73R00-000	.PAD,BACK DOOR GLASS	1	Rp39.500
32	84575-73R00-000	.CLIP,GLASS FASTENER	2	Rp19.000
33-2	84617-73R10-000	.SPACER,BACK DOOR GLASS	2	Rp54.000
34	84623-73R00-000	.MOLDING,BACK DR WINDOW,R	1	Rp19.000
35	84625-73R00-000	.MOLDING,BACK DR WINDOW,L	1	Rp19.000
36	84681-73R00-000	WEATHERSTRIP,BACK DR OPNG	1	Rp259.500
37	39970M72R00-000	CAMERA ASSY,BACK	1	Rp2.859.000
38	83942-73R10-0PG	MOLDING BACK DOOR GARNISH (CHROME)	1	Rp210.500
