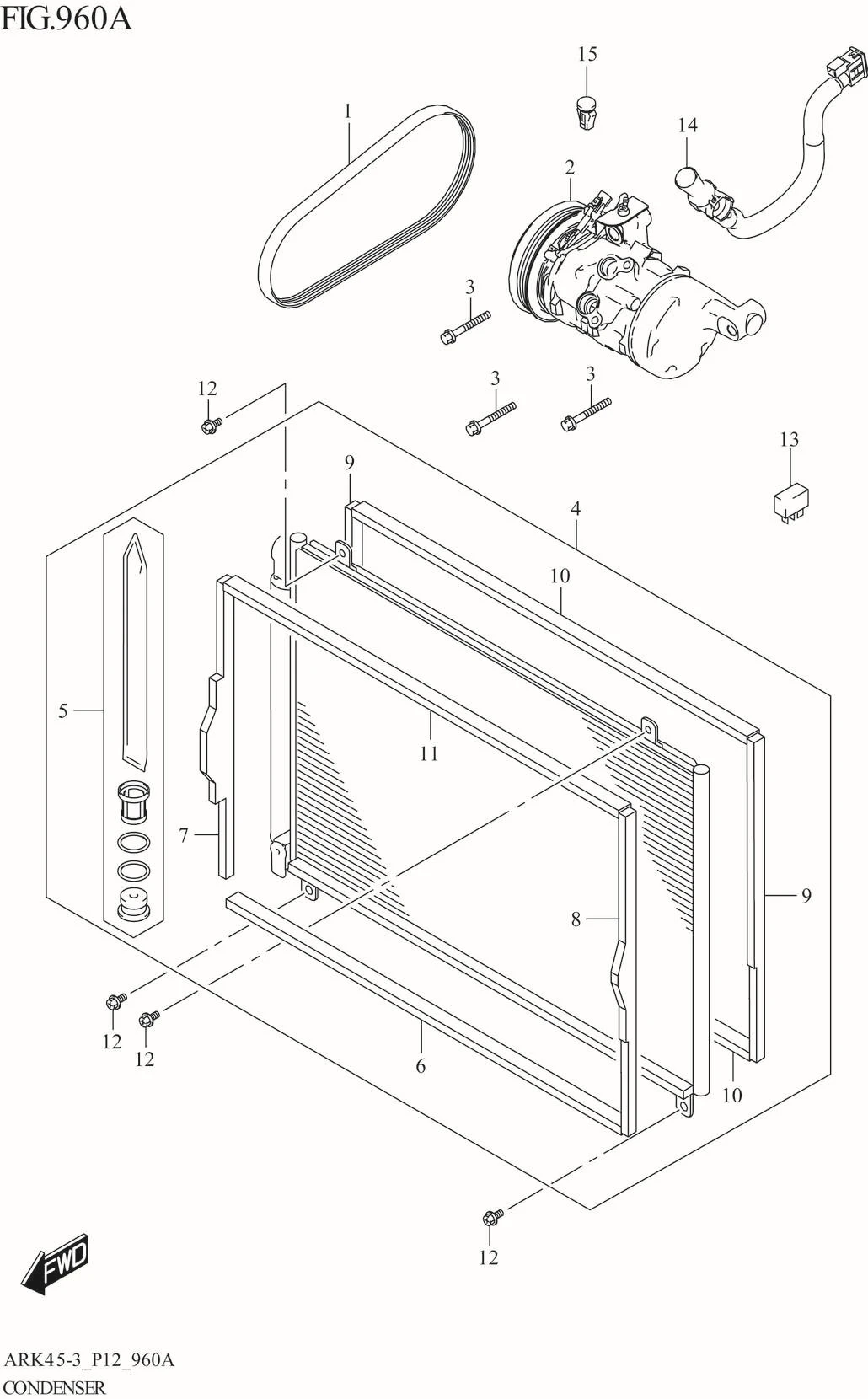

FIG. 960A CONDENSER

FIG. 960A CONDENSER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	95141-73R00-000	V-BELT	1	Rp91.000
2-2	95200-73R10-000	COMPRESSOR ASSY	1	Rp4.160.000
3	01550-0850A-000	BOLT	3	Rp3.500
4	95310-73R00-000	CONDENSER ASSY	1	Rp2.204.500
5	95339-79P00-000	.DRYER KIT	1	Rp531.000
6	95817-73R00-000	.SEAL	1	Rp408.000
7	95812-73R00-000	.SEAL	1	Rp408.000
8	95813-73R00-000	.SEAL	1	Rp408.000
9	95814-73R00-000	.SEAL	2	Rp408.000
10	95815-73R00-000	.SEAL	2	Rp408.000
11	95816-73R00-000	.SEAL	1	Rp408.000
12	02162-0612A-000	SCREW (6X12)	4	Rp11.000
13	38860-77M00-000 SUB: 38860B77M00N000	RELAY ASSY	1	Rp45.000
14	95640-73R00-000	SENSOR ASSY,ROOM TEMP	1	Rp452.500
15	95642-64G20-000	SENSOR,SUN LIGHT	1	Rp578.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
