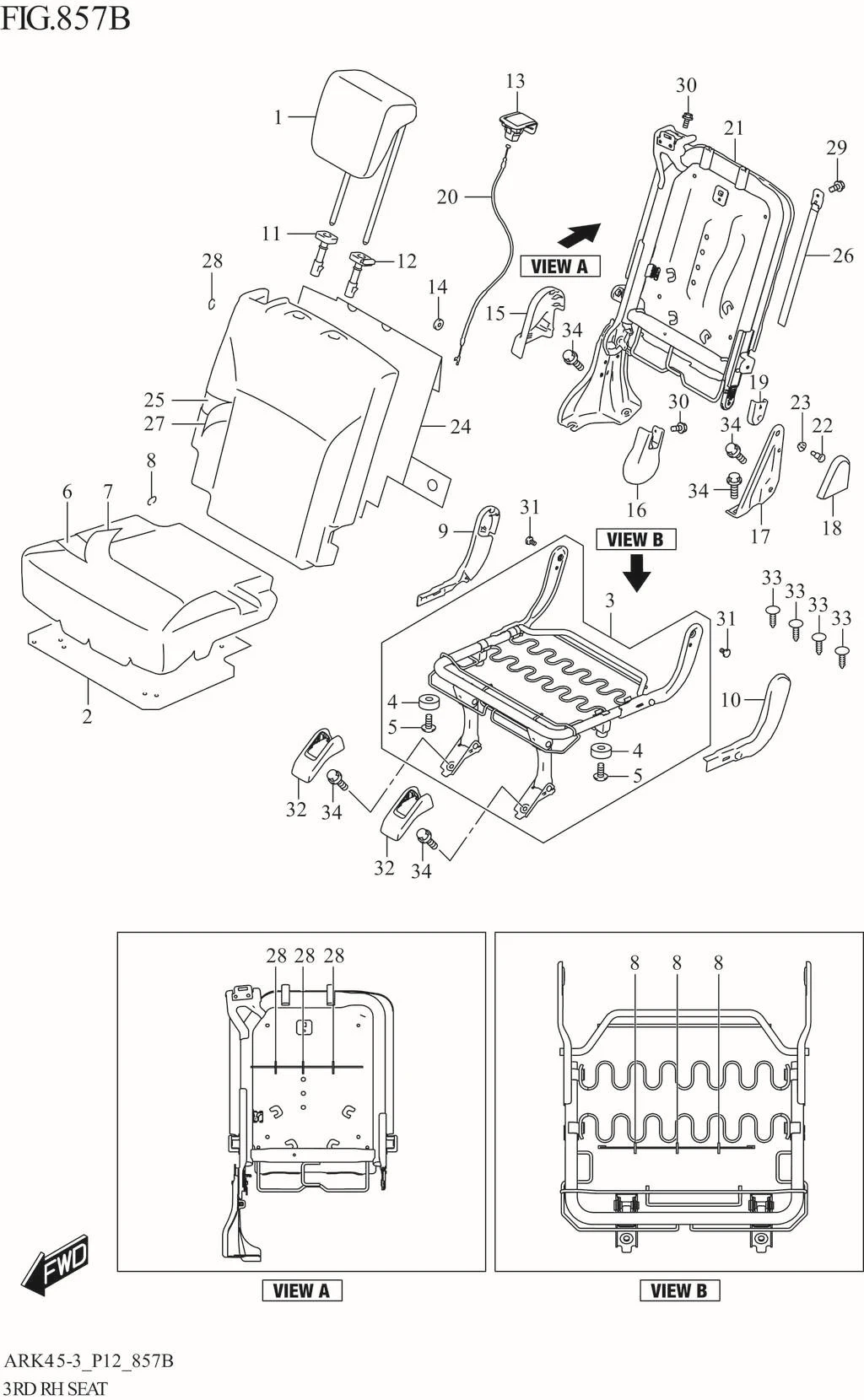

FIG. 857B 3RD RH SEAT (XL7)

No	No. Part	Description	Qty	Price Per Pcs
1	86401-73RA0-QRB	HEADRESTRAINT ASSY,3RD (BLACK)	1	Rp760.500
2	87163-78F00-000	SUPPORT,RR CUSH	1	Rp7.000
3	88103-73RA1-000	FRAME ASSY,3RD CUSH,R	1	Rp569.000
4	87193-82K00-000	.CUSHION,RR LEG STOPPER	2	Rp12.500
5	03241-0512A-000 SUB: 03241B0512AN000	.SCREW	2	Rp3.500
6	88160-73RA0-000	PAD,3RD CUSH,R	1	Rp248.000
7	88180-73RC0-D3C	TRIM,3RD CUSH,R	1	Rp551.500
8	09387-19001-000	RING (OD:22.6)	3	Rp9.000
9	88171-73RA0-5PK	COVER,3RD STAY,R (BLACK)	1	Rp15.000
10	88172-73RA0-5PK	COVER,3RD STAY,L (BLACK)	1	Rp16.000
11	85341-58RA1-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp10.000
12	85840-73R10-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp11.000
13	87290-70K00-5PK	KNOB,RCLNG RELEASE (BLACK)	1	Rp97.000
14	87371-73R00-000	WASHER,CABLE END	1	Rp5.500
15	88221-73RA0-5PK	COVER,3RD RCLNG LOWER,R (BLACK)	1	Rp9.000
16	88222-73RA1-5PK	COVER,3RD RCLNG UPR,R (BLACK)	1	Rp11.500
17	88231-73RB0-000	BRACKET,3RD BACK HINGE,R	1	Rp170.500
18	88241-73RA0-5PK	COVER,3RD HINGE LOWER,R (BLACK)	1	Rp8.500
19	88242-73RA0-5PK	COVER,3RD HINGE UPPER,R (BLACK)	1	Rp6.500
20	88294-73RA1-000	CABLE,3RD RCLNG RELEASE	1	Rp46.500
21	88310-73RA1-000	FRAME,3RD BACK,R	1	Rp2.081.500
22	88321-73RA0-000	BOLT,3RD BACK HINGE	1	Rp9.000
23	88322-73RA0-000	BUSH,3RD BACK HINGE	1	Rp6.500
24	88334-73RA0-000	SILENCER,3RD BACK,R	1	Rp37.000
25	88360-73RA0-000	PAD,3RD BACK,R	1	Rp224.500
26	88370-73RA0-5PK	BAND ASSY,3RD BACK (BLACK)	1	Rp7.500
27	88380-73RC0-D3C	TRIM,3RD BACK,R	1	Rp574.500
28	09387-19001-000	RING (OD:22.6)	3	Rp9.000
29	02142-0510A-000 SUB: 02142B0510AN000	SCREW	1	Rp4.000
30	03241-0510A-000	SCREW	2	Rp8.000
31	88323-73RA0-000	BOLT,3RD STAY FIX	2	Rp8.500
32	88491-73RA0-5PK	COVER,3RD MTG (BLACK)	2	Rp8.500
33	09409-10302-5PK	CLIP (BLACK)	4	Rp18.500
34	01551-1020A-000	BOLT	5	Rp18.000
