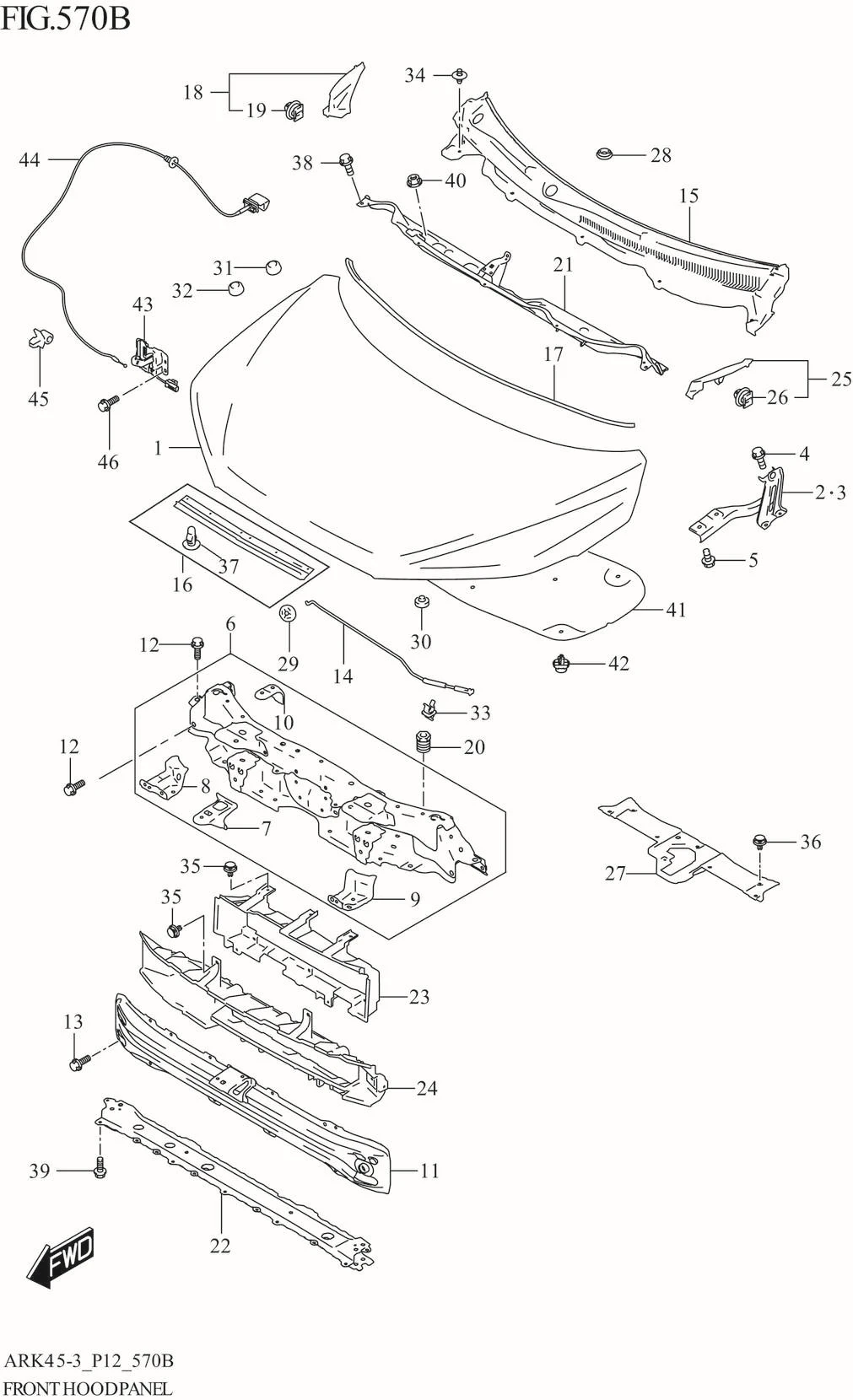

FIG. 570B FRONT HOOD PANEL (XL7)

No	No. Part	Description	Qty	Price Per Pcs
1	57300-72SA2-000 SUB: 57300-72SA0-000	PANEL,FRONT HOOD	1	Rp1.497.000
2	57410-72SA0-000	HINGE,FRONT HOOD,R	1	Rp94.500
3	57420-72SA0-000	HINGE,FRONT HOOD,L	1	Rp94.500
4	DISCONTINUE SUB: 01550B0612AN000	BOLT (6X12)	4	-
5	02162-0616A-000	SCREW (6X16)	4	Rp3.000
6	58230-72SA2-000 SUB: 58230-72SA0-000	MEMBER,HOOD LOCK	1	Rp709.500
7	58238-72S00-000	.BRACKET,FR BUMPER	2	Rp77.500
8	58241-72S00-000	.BRACKET,FR BUMPER SIDE,R	1	Rp102.000
9	58242-72S00-000	.BRACKET,FR BUMPER SIDE,L	1	Rp102.000
10	58245-72SA0-000	.BRACKET,FR BUMPER UPPER	2	Rp51.500
11	58270-72SA0-000	MEMBER,FRONT BUMPER	1	Rp632.500
12	01550-0820A-000 SUB: 01550B0820AN000	BOLT (8X20)	6	Rp5.500
13	01550-0820A-000 SUB: 01550B0820AN000	BOLT (8X20)	6	Rp5.500
14	72310-72SA0-000	STAY,FRONT HOOD	1	Rp40.000
15	72330-73R00-5PK	GARNISH,COWL TOP (BLACK)	1	Rp376.000
16	72036-73R20-000	SEAL,HOOD FRONT	2	Rp30.500
17	72362-73R00-000	SEAL,HOOD REAR	1	Rp43.000
18	72370-72SA0-5PK	GARNISH,COWL TOP SIDE,R (BLACK)	1	Rp11.500
19	09409-06342-000 SUB: 09409-06332-000	.CLIP	1	Rp19.500
20	72372-63J00-000 SUB: 72372B63J00N000	CUSHION,FR HOOD SIDE	2	Rp8.000
21-1	72380-73R00-000	PANEL,FR COWL UPPER	1	Rp827.000
21-2	72380-73R40-000	PANEL,FR COWL UPPER	1	Rp884.000
22	72390-73R00-000	CROSSMEMBER,FRONT LOWER	1	Rp751.000
23	72432-72S00-000	COVER,FRONT END UPPER,L	1	Rp50.500
24	72433-72SA0-000	COVER,FRONT END LOWER	1	Rp104.000
25	72470-72SA0-5PK	GARNISH,COWL TOP SIDE,L (BLACK)	1	Rp11.500
26	09409-06342-000 SUB: 09409-06332-000	.CLIP	1	Rp19.500
27	72483-72SA0-000	COVER,HOOD LOCK MEMBER	1	Rp40.000
28	09250-10L02-000	CAP (OD:16.2)	2	Rp5.500
29	09308-07014-000	GROMMET,FR HOOD STAY	1	Rp16.500
30	09321-07003-000 SUB: 09321B07003N000	CUSHION	2	Rp5.500
31	09321-10023-000 SUB: 09321B10023N000	CUSHION (HD:10)	2	Rp6.000
32	09321-10023-000 SUB: 09321B10023N000	CUSHION (HD:10)	2	Rp6.000
33	09403-07407-000	CLAMP	1	Rp18.000
34	09409M07L02-5PK	CLIP (6.5X20.5,BLACK)	5	Rp7.500
35	09409-08010-000	CLIP	16	Rp5.500
36	09409-08010-000	CLIP	7	Rp5.500
37	09409-10304-000	CLIP	6	Rp5.000
38	02162-0612A-000	SCREW (6X12)	5	Rp11.000
39	02162-0612A-000	SCREW (6X12)	2	Rp11.000
40	08316-1006A-000	NUT (6X12)	4	Rp2.000
41	72440-72SA0-000	SILENCER,FRONT HOOD	1	Rp545.500
42	09409-07340-000	CLIP (6.8X11.5)	10	Rp17.500
43	82110-72SC0-000	LATCH,HOOD	1	Rp324.500
44	82160-72SA0-000	CABLE,HOOD LATCH RELEASE	1	Rp63.000
45	09403M04401-000	CLAMP (D:4.8)	4	Rp4.500
46	02162-0616A-000	SCREW (6X16)	3	Rp3.000
