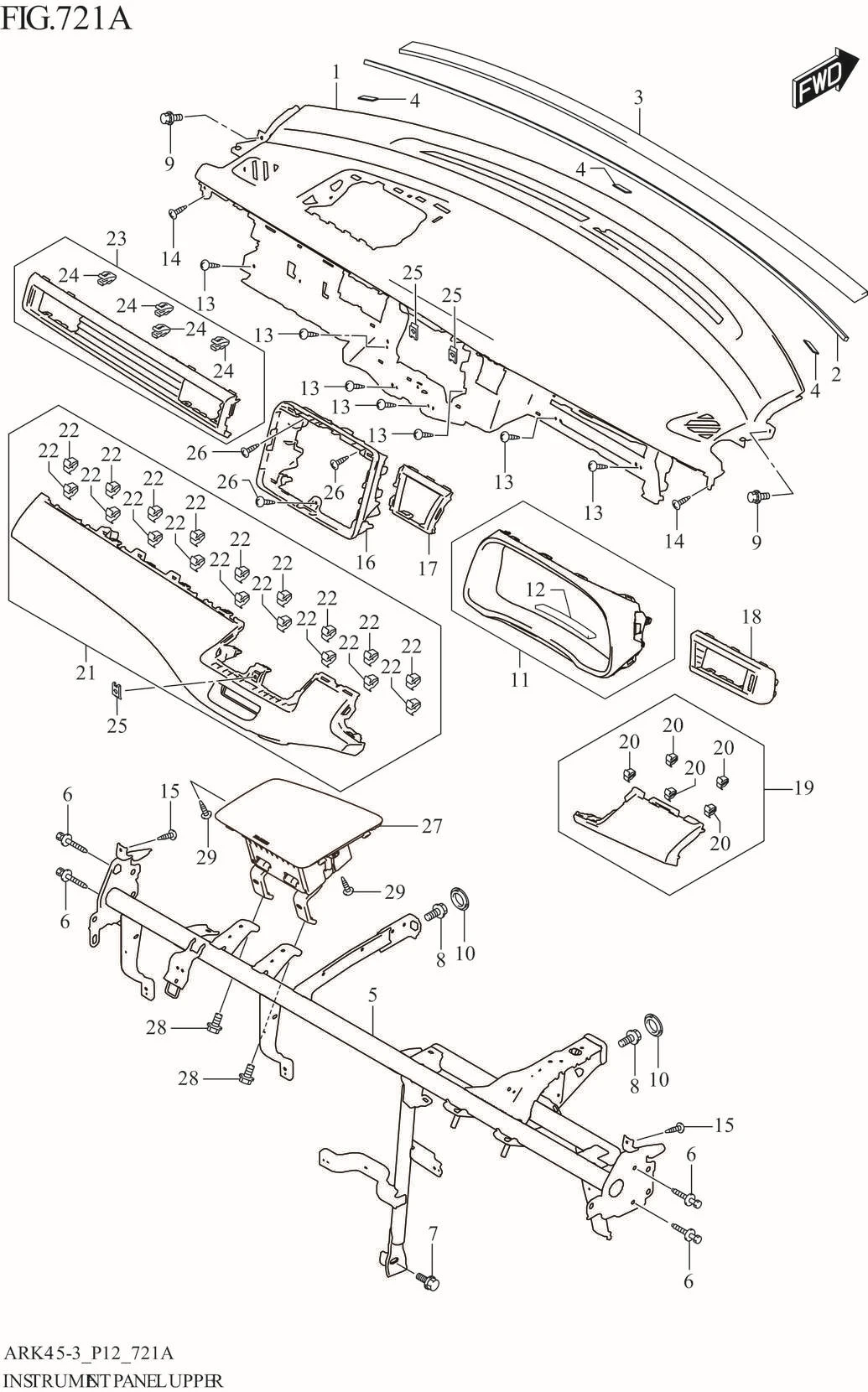

FIG. 721A INSTRUMENT PANEL UPPER

No	No. Part	Description	Qty	Price Per Pcs
1-2	73111-73R00-5PK	PANEL,INSTRUMENT MAIN UPPER (BLACK)	1	Rp413.500
1-1	73111-73R00-R8R	PANEL,INSTRUMENT MAIN UPPER (BROWN)	1	Rp395.000
2	73114-61M00-000	SILENCER,I/P TOP	1	Rp315.500
3	73118M74L00-000	SEAL,I/P	1	Rp8.000
4	73123-82M00-000	FELT	3	Rp19.500
5	73200-73R00-000	MEMBER,STEERING SUPPORT	1	Rp1.780.500
6	73291-50G20-000	BOLT,STRG SPRT MBR SIDE	4	Rp42.500
7	73291-52R00-000	BOLT,WITH WASHER	1	Rp19.500
8	73291-52R00-000	BOLT,WITH WASHER	2	Rp19.500
9	09138-06049-000	BOLT (6X12)	2	Rp17.000
10	09250-30002-000 SUB: 09250-30002L000	CAP (OD:38.5)	2	Rp5.500
11	73310-73R00-5PK	PANEL,INSTRUMENT CLUSTER (BLACK)	1	Rp291.500
12	73314-62J00-000	.SEAL,I/P CLUSTER	1	Rp34.000
13	03541-0516A-000	SCREW	7	Rp3.500
14	03541-0516A-000	SCREW	2	Rp3.500
15	03541-0516A-000	SCREW	2	Rp3.500
16	73822-73R00-5PK	BASE,I/P CTR GARNISH (BLACK)	1	Rp22.500
17	73823-73R00-5PK	GARNISH,I/P DRVR INSIDE (BLACK)	1	Rp8.500
18	73831-73R00-5PK	GARNISH,I/P DRVR OUTSIDE (BLACK)	1	Rp10.500
19-4	73830-72SA0-D13	ORNAMENT,I/P DRVR	1	Rp636.500
20	09409-08351-000	.CLIP	5	Rp21.000
21-4	73860-72SA0-D13	ORNAMENT,I/P CTR	1	Rp1.585.500
22	09409-08351-000	.CLIP	18	Rp21.000
23	73862-73R00-5PK	GARNISH,I/P ASST (BLACK)	1	Rp34.500
24	09409-08351-000	.CLIP	4	Rp21.000
25	09148-05045-000 SUB: 09148B05045N000	NUT (M5)	3	Rp4.000
26	03541-0516A-000	SCREW	3	Rp3.500
27-1	73910-73R00-R8R	MODULE ASSY,PASSENGER AIR BAG (BROWN)	1	Rp2.239.000
27-2	73910-73R00-5PK	MODULE ASSY,PASSENGER AIR BAG (BLACK)	1	Rp2.561.500
28	01551-0816C-000	BOLT	2	Rp13.500
29	02162-0616A-000	SCREW (6X16)	2	Rp3.000
