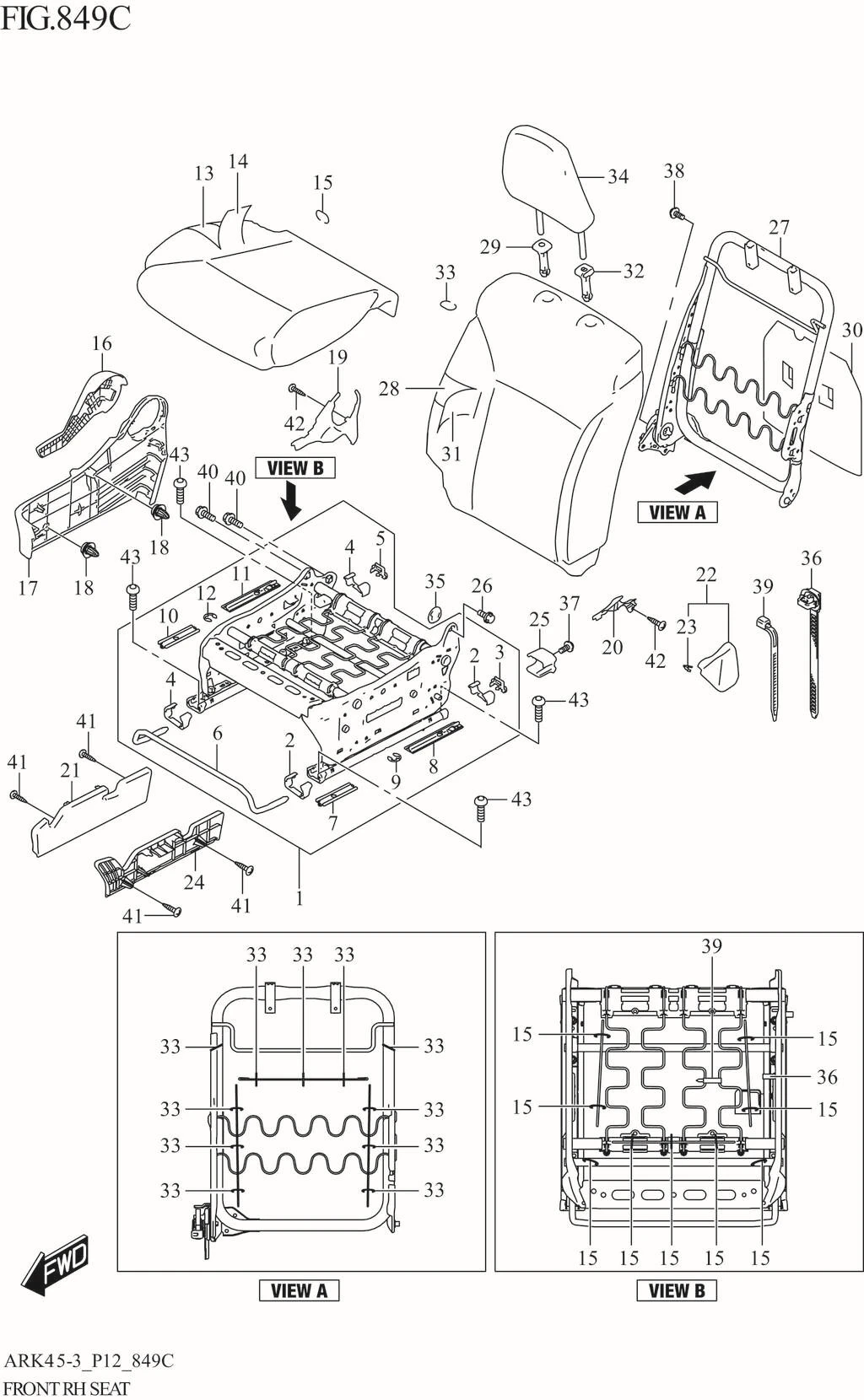

FIG. 849C FRONT RH SEAT (XL7:GL)

No	No. Part	Description	Qty	Price Per Pcs
1	85103-73R10-000	FRAME ASSY,FR CUSH,R	1	Rp1.953.500
2	86652M74P50-000	.CAP,FR ADJ LWR	2	Rp5.500
3	86653M74P50-000	.CAP,FR ADJ UPR	1	Rp5.500
4	86652M74P50-000	.CAP,FR ADJ LWR	2	Rp5.500
5	86653M74P50-000	.CAP,FR ADJ UPR	1	Rp5.500
6	86691-73R00-000	.HANDLE,FR SEAT ADJUSTER	1	Rp130.500
7	86656-74P50-000	.PROTECTOR,FR ADJ FR	1	Rp8.500
8	86657-68P00-000	.PROTECTOR,FR ADJUSTER REAR	1	Rp10.000
9	86658-68P00-000	.RING,FR ADJUSTER REAR	1	Rp6.500
10	86656-74P50-000	.PROTECTOR,FR ADJ FR	1	Rp8.500
11	86657-68P00-000	.PROTECTOR,FR ADJUSTER REAR	1	Rp10.000
12	86658-68P00-000	.RING,FR ADJUSTER REAR	1	Rp6.500
13	85160-73R10-000	PAD,FR CUSH	1	Rp338.500
14	85180-73RA0-D3C	TRIM,FR CUSH,R	1	Rp781.000
15	09387-19001-000	RING (OD:22.6)	9	Rp9.000
16	85211-62R00-5PK	KNOB,RCLNG,R (BLACK)	1	Rp83.500
17	85221-73R00-5PK	COVER,RCLNG OUTSIDE,R (BLACK)	1	Rp50.000
18	09409-10313-000	CLIP	2	Rp14.000
19	85222-68P00-5PK	COVER,FR RCLNG (BLACK)	1	Rp10.500
20	85222-73R00-5PK	COVER,RCLNG INS LWR,R (BLACK)	1	Rp8.000
21	85223-73R00-000	COVER,FR RISER,R	1	Rp19.000
22	85241-68P10-5PK	COVER,RCLNG INS,R (BLACK)	1	Rp11.500
23	85249M68P00-000	.CLIP	1	Rp9.500
24	85243-73R00-000	COVER,FR RISER,L	1	Rp20.500
25	85280-81P00-000	COVER,FR HARNESS BRACKET	1	Rp6.500
26	85295-58J01-000	BOLT,FR BACK FIX	1	Rp34.000
27	85303-73R00-000	FRAME ASSY,FR BACK,R	1	Rp1.012.000
28	85360-73R00-000	PAD,FR BACK,R	1	Rp346.000
29	85341-73R00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp53.000
30	85369-74L00-000	SILENCER,FR BACK	1	Rp40.000
31	85380-73RA0-D3C	TRIM,FR BACK,R	1	Rp2.327.000
32	85840-73R00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp53.000
33	09387-19001-000	RING (OD:22.6)	11	Rp9.000
34	86401-73R00-QRB	HEADRESTRAINT ASSY (BLACK)	1	Rp730.500
35	87286-81P00-000	BUSH,FR BACK FIX	1	Rp37.000
36	96619-59L00-000	CLAMP	1	Rp24.500
37	09132-04037-000	SCREW (4X10)	1	Rp15.000
38	09132-04037-000	SCREW (4X10)	1	Rp15.000
39	36990-25G00-000	CLAMP (L:125)	1	Rp13.000
40	01550-1016A-000 SUB: 01550B1016AN000	BOLT (10X16)	2	Rp5.500
41	03541-0410A-000	SCREW	4	Rp11.000
42	03541-0410A-000	SCREW	2	Rp11.000
43	09119-08107-000	BOLT (8X25)	4	Rp5.500
