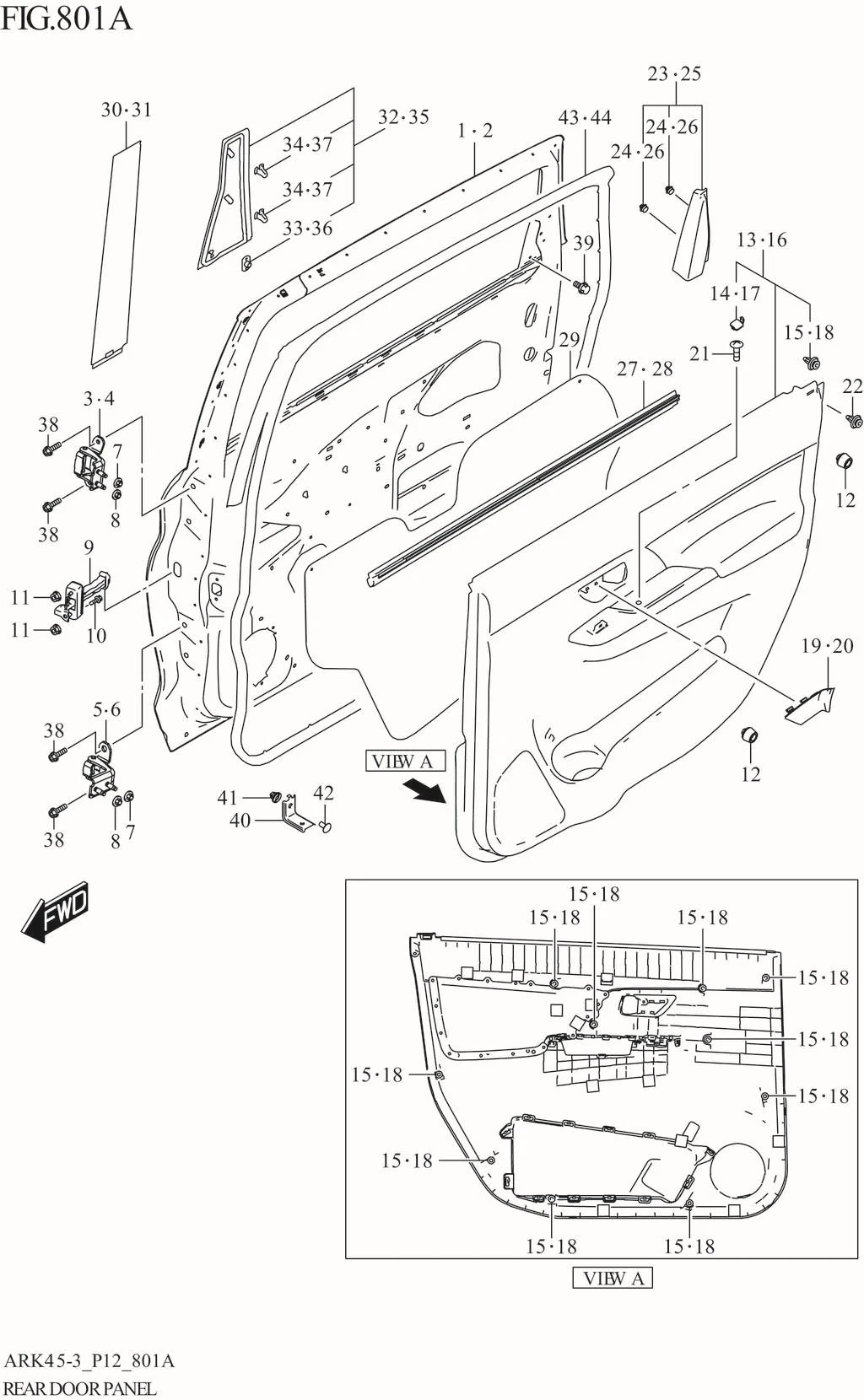

FIG. 801A REAR DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs
1-2	68003-73R22-000 SUB: 68003-73R20-000	PANEL ASSY,REAR DOOR,R	1	Rp3.283.000
1-1	68003-73R02-000 SUB: 68003-73R00-000	PANEL ASSY,RR DR,R	1	Rp3.283.000
2-2	68004-73R22-000 SUB: 68004-73R20-000	PANEL ASSY,REAR DOOR,L	1	Rp3.283.000
2-1	68004-73R02-000 SUB: 68004-73R00-000	PANEL ASSY,RR DR,L	1	Rp3.283.000
3	69410M68L00-000 SUB: 69410-68LB0-000	HINGE,RR DR UPPER,R	1	Rp73.500
4	69420M68L00-000 SUB: 69420-68LB0-000	HINGE,RR DR UPPER,L	1	Rp73.500
5	69430M72R00-000 SUB: 69430-73R00-000	HINGE,RR DR LWR,R	1	Rp83.000
6	69440M72R00-000 SUB: 69440-73R00-000	HINGE,RR DR LWR,L	1	Rp83.000
7	09159-08132-000	NUT (M8)	4	Rp19.500
8	08361-2508A-000	NUT	4	Rp16.500
9	81830-73RA3-000 SUB: 81830-73RA0-000	STOP,REAR DOOR OPEN	2	Rp85.000
10	09112-08015-000	BOLT (8X25)	2	Rp32.000
11	08316-1006A-000	NUT (6X12)	4	Rp2.000
12	82711-51K00-000	CUSHION	4	Rp39.000
13-2	83730-73R10-DWR	TRIM,RR DR,R (BLACK)	1	Rp1.185.500
13-3	83730-73R10-D3K	TRIM,REAR DOOR,R (BLACK)	1	Rp1.185.500
13-1	83730-73R00-V6N	TRIM,RR DR,R (BEIGE)	1	Rp977.000
14-1	83752-80J00-V6N	.CAP,DR INS PULL CASE (BEIGE)	1	Rp58.000
14-2	83752-80J00-5PK	.CAP,SIDE DR INS CASE (BLACK)	1	Rp74.000
15	09409-10327-000	.CLIP	10	Rp5.000
16-1	83740-73R00-V6N	TRIM,RR DR,L (BEIGE)	1	Rp977.000
16-2	83740-73R10-DWR	TRIM,RR DR,L (BLACK)	1	Rp1.185.500
16-3	83740-73R10-D3K	TRIM,REAR DOOR,L (BLACK)	1	Rp1.185.500
17-1	83752-80J00-V6N	.CAP,DR INS PULL CASE (BEIGE)	1	Rp58.000
17-2	83752-80J00-5PK	.CAP,SIDE DR INS CASE (BLACK)	1	Rp74.000
18	09409-10327-000	.CLIP	10	Rp5.000
19-1	83755-74L00-V6N SUB: 83755B74L00NV6N	CAP,INSIDE HDL BEZEL,R (BEIGE)	1	Rp86.500
19-2	83755-74L00-5PK	CAP,INSIDE HDL BEZEL,R (BLACK)	1	Rp24.000
20-1	83756-74L00-V6N SUB: 83756B74L00NV6N	CAP,INSIDE HDL BEZEL,L (BEIGE)	1	Rp85.500
20-2	83756-74L00-5PK	CAP,INSIDE HDL BEZEL,L (BLACK)	1	Rp24.000
21	09132-05058-000	SCREW (5X12)	2	Rp14.000
22-1	09409-06314-V6N	CLIP (5.9X20.5,BEIGE)	2	Rp19.500
22-2	09409-06314-5PK	CLIP (5.9X20.5,BLACK)	2	Rp3.500
23	83780-73R00-5PK	GARNISH,RR DR INNER,R (BLACK)	1	Rp112.000
24	09409-06339-000	.CLIP,RR DR INNER GARNISH	2	Rp18.000
25	83790-73R00-5PK	GARNISH,RR DR INNER,L (BLACK)	1	Rp112.000
26	09409-06339-000	.CLIP,RR DR INNER GARNISH	2	Rp18.000
27	83871-73R00-000	WEATHERSTRIP,RR DR INNER,R	1	Rp69.000
28	83881-73R00-000	WEATHERSTRIP,RR DR INNER,L	1	Rp69.000
29	83913-73R00-000	COVER,RR DR SEALING	2	Rp10.000
30-1	83931-73R00-0CB	TAPE,RR DR OUTER FR,R (BLACK)	1	Rp33.500
30-2	83931-73R00-0CB	TAPE,RR DR OUTER FR,R (BLACK)	1	Rp33.500
31-2	83932-73R00-0CB	TAPE,RR DR OUTER FR,L (BLACK)	1	Rp33.500
31-1	83932-73R00-0CB	TAPE,RR DR OUTER FR,L (BLACK)	1	Rp33.500
32	83970-73R00-000	GARNISH,RR DR RR OUTER,R	1	Rp93.500
33	09146M06003-000	.NUT	1	Rp7.500
34	09409-06324-000 SUB: 09409B06324N000	.CLIP	2	Rp13.500
35	83980-73R00-000	GARNISH,RR DR RR OUTER,L	1	Rp93.500
36	09146M06003-000	.NUT	1	Rp7.500
37	09409-06324-000 SUB: 09409B06324N000	.CLIP	2	Rp13.500
38	09103-08546-000	BOLT (8X24)	8	Rp26.500
39	02162-0612A-000	SCREW (6X12)	2	Rp11.000
40	83751-67P00-000	BRACKET,DR TRIM	2	Rp11.500
41	71851M70F00-000	NUT (M6)	2	Rp4.000
42	03141M0612A-000	SCREW	2	Rp4.500
43	84661-73R00-000	WEATHERSTRIP,RR DR OPNG,R	1	Rp191.000
44	84671-73R00-000	WEATHERSTRIP,RR DR OPNG,L	1	Rp191.000
