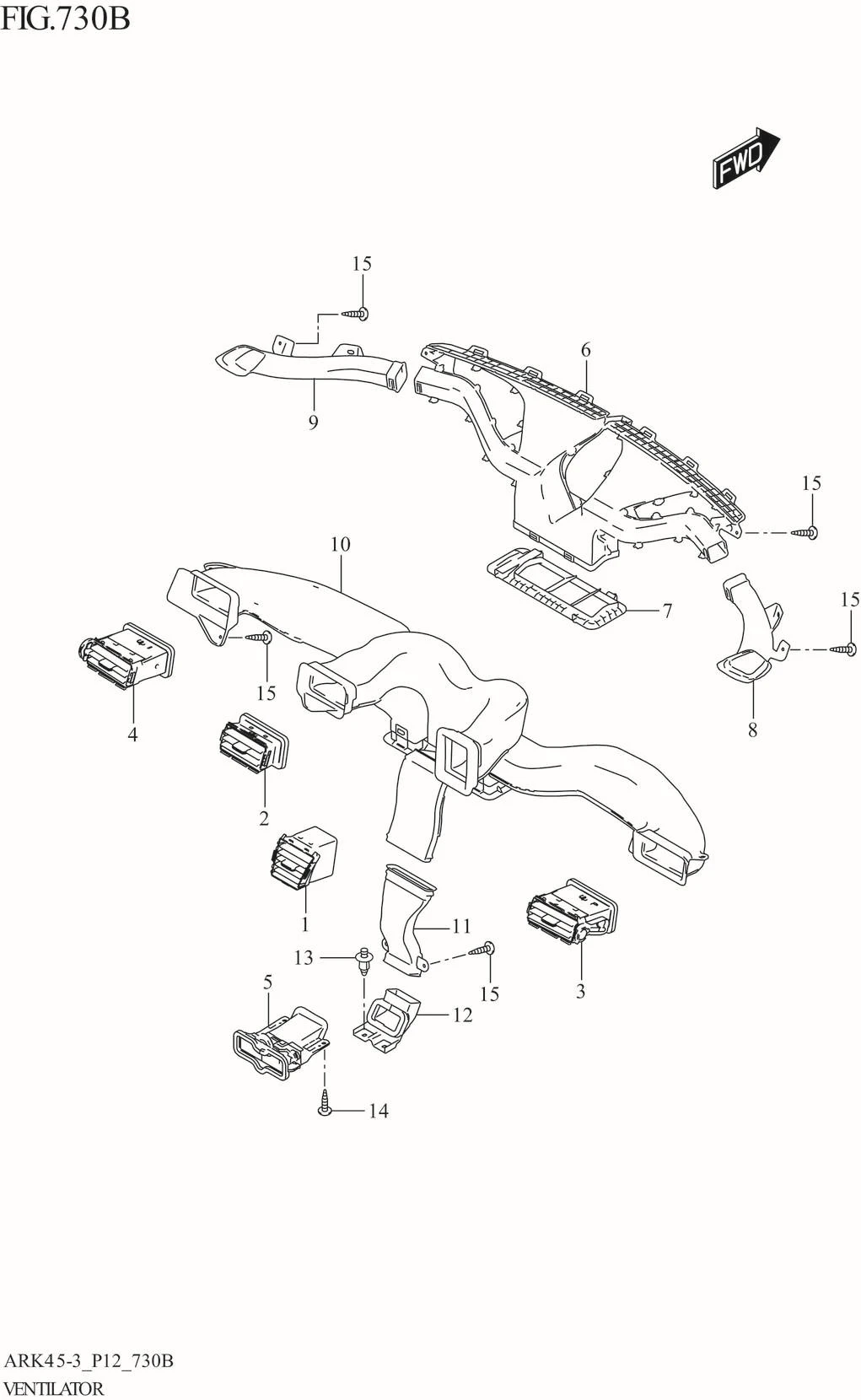

FIG. 730B VENTILATOR (GX,GX_LTD)

FIG. 730B VENTILATOR (GX,GX_LTD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73610-73R00-C48	LOUVER,CTR VENT DR (CHROME/BLACK)	1	Rp147.000
2	73620-73R00-C48	LOUVER,CTR VENT ASST (CHROME/BLACK)	1	Rp115.500
3	73630-73R00-C48	LOUVER,SIDE VENT,R (CHROME/BLACK)	1	Rp186.000
4	73640-73R00-C48	LOUVER,SIDE VENT,L (CHROME/BLACK)	1	Rp182.000
5	73610-73RA0-5PK	OUTLET,CUP HOLDER (BLACK)	1	Rp133.000
6	73661-73R00-000	NOZZLE,DFR	1	Rp82.500
7	73662-77M00-000 SUB: 73662B77M00N000	ADAPTER,DFR NOZZLE	1	Rp19.000
8	73681-73R00-000	DUCT,DEMISTER,R	1	Rp70.000
9	73691-73R00-000	DUCT,DEMISTER,L	1	Rp70.000
10	74620-73R20-000	DUCT,VENT	1	Rp385.000
11	74661-73R00-000	DUCT,CUP HOLDER NO.1	1	Rp86.000
12	74662-73R00-000	DUCT,CUP HOLDER NO.2	1	Rp67.500
13	09409M07L02-5PK	CLIP (6.5X20.5,BLACK)	2	Rp7.500
14	03541-0412A-000 SUB: 03541B0412AN000	SCREW (4X12)	4	Rp3.500
15	03541-0516A-000	SCREW	10	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
