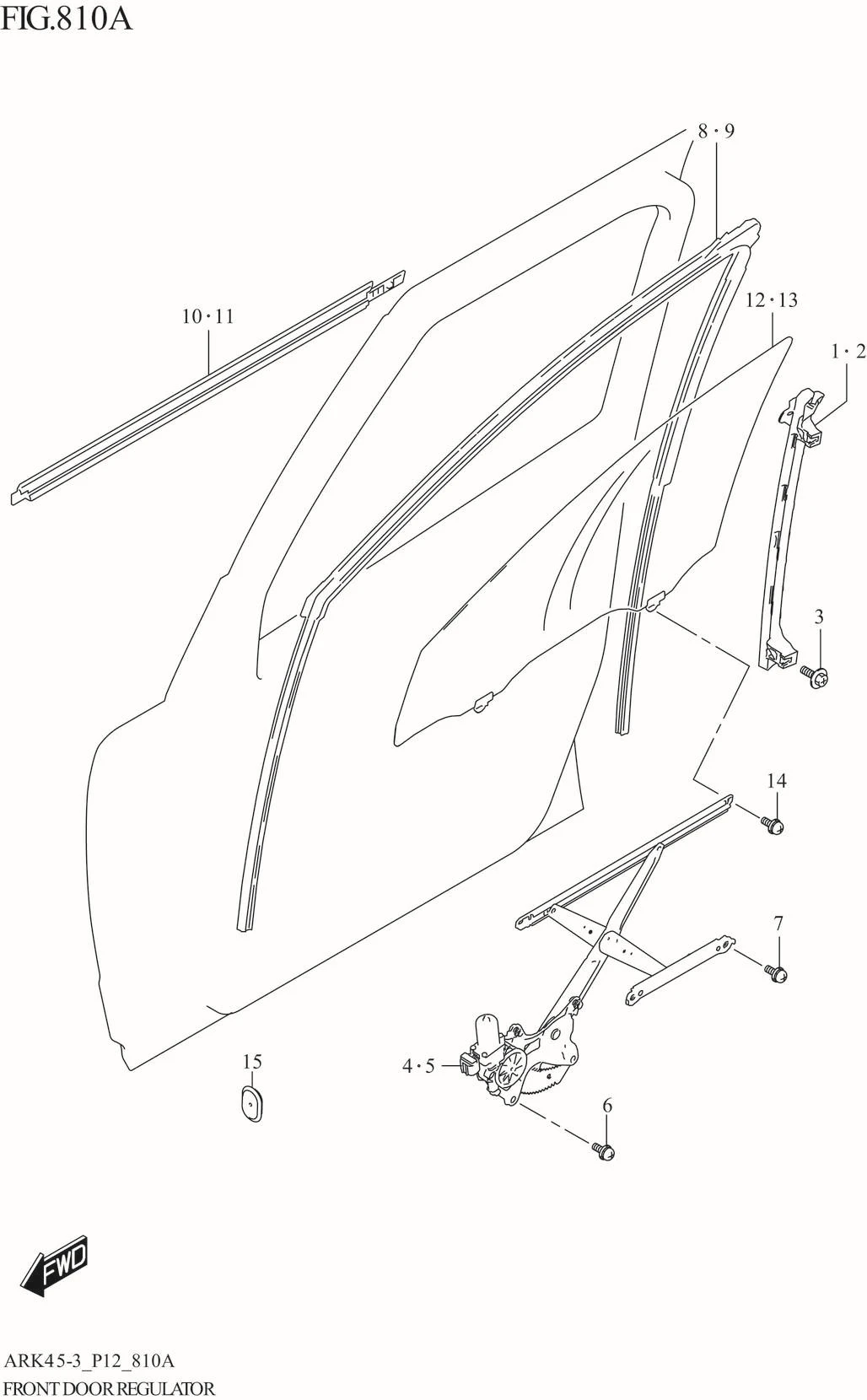

FIG. 810A FRONT DOOR REGULATOR

FIG. 810A FRONT DOOR REGULATOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	81730-73R00-000	SASH,FRONT DOOR REAR,R	1	Rp38.000
2	81740-73R00-000	SASH,FRONT DOOR REAR,L	1	Rp38.000
3	09122-76003-000	SCREW (6X16)	4	Rp15.000
4	83401-73R20-000	REGULATOR ASSY,FRONT WINDOW,R	1	Rp522.500
5	83402-73R10-000	REGULATOR ASSY,FRONT WINDOW,L	1	Rp412.500
6	DISCONTINUE SUB: 01580-0612A-000	BOLT	4	-
7	DISCONTINUE SUB: 01580-0612A-000	BOLT	4	-
8	83661-73R01-000	RUN,FR DR GLASS,R	1	Rp199.500
9	83665-73R01-000	RUN,FR DR GLASS,L	1	Rp199.500
10	83811-73R00-000	WEATHERSTRIP,FR DR OUT,R	1	Rp71.500
11	83821-73R00-000	WEATHERSTRIP,FR DR OUT,L	1	Rp71.500
12	84501-73R00-000	GLASS,FR DR WINDOW,R	1	Rp213.000
13	84502-73R00-000	GLASS,FR DR WINDOW,L	1	Rp213.000
14	DISCONTINUE SUB: 01580-0612A-000	BOLT	4	-
15	36994M68K00-000	CAP	2	Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
