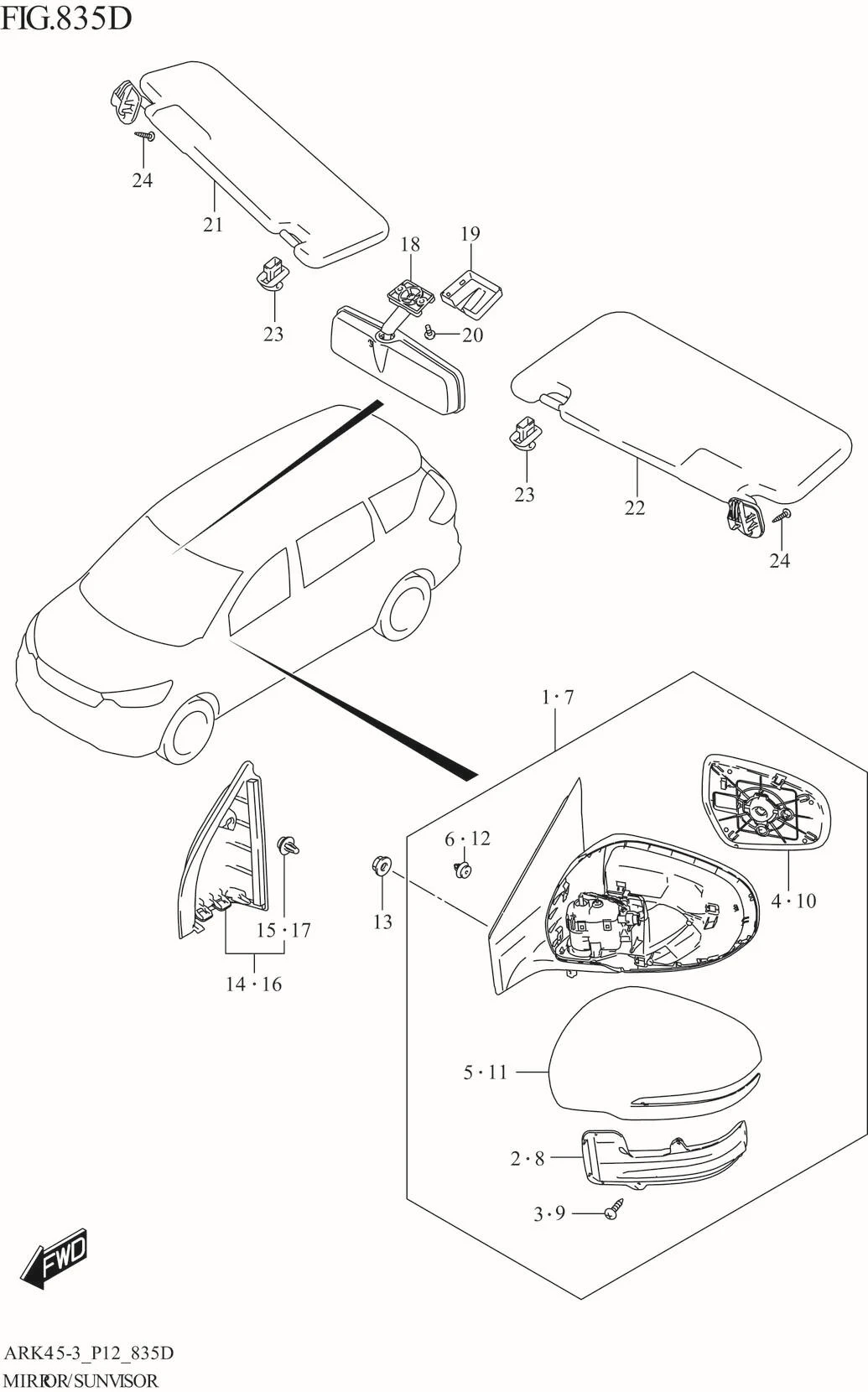

FIG. 835D MIRROR/SUNVISOR (XL7)

No	No. Part	Description	Qty	Price Per Pcs
1-2	84701-73R32-000 SUB: 84701-73R31-000	MIRROR ASSY,RR VIEW,R (NOT PAINTED)	1	Rp1.156.000
1-1	84701-73R21-000	MIRROR ASSY,RR VIEW,R (NOT PAINTED)	1	Rp1.078.000
2	36410-73R00-000	.LAMP ASSY,SIDE TURN SIG,R	1	Rp400.500
3	84717-73R00-000	.SCREW,TURN SIGNAL LAMP	2	Rp9.500
4	84730-73R00-000	.GLASS,OUT RR VIEW MIR,R	1	Rp235.000
5	84718-73R20-000	COVER,MIRROR VISOR,R(NOT PAINTED)	1	Rp480.500
6	09409-08343-000	.CLIP	1	Rp7.000
7-2	84702-73R32-000 SUB: 84702-73R31-000	MIRROR ASSY,RR VIEW,L (NOT PAINTED)	1	Rp1.156.000
7-1	84702-73R21-000	MIRROR ASSY,RR VIEW,L (NOT PAINTED)	1	Rp1.078.000
8	36430-73R00-000	.LAMP ASSY,SIDE TURN SIG,L	1	Rp400.500
9	84717-73R00-000	.SCREW,TURN SIGNAL LAMP	2	Rp9.500
10	84740-73R00-000	.GLASS,OUT RR VIEW MIR,L	1	Rp235.000
11	84728-73R20-000	COVER,MIRROR VISOR,L(NOT PAINTED)	1	Rp480.500
12	09409-08343-000	.CLIP	1	Rp7.000
13	08316-1006A-000	NUT (6X12)	6	Rp2.000
14-2	84750-73R10-5PK	GARNISH,SASH BRKT INR,R (BLACK)	1	Rp63.000
14-1	84750-73R00-5PK	GARNISH,SASH BRKT INR,R (BLACK)	1	Rp64.000
15	09409-10327-000	.CLIP	1	Rp5.000
16-2	84790-73R10-5PK	GARNISH,SASH BRKT INR,L (BLACK)	1	Rp63.000
16-1	84790-73R00-5PK	GARNISH,SASH BRKT INR,L (BLACK)	1	Rp64.000
17	09409-10327-000	.CLIP	1	Rp5.000
18	84703-77M00-V6N SUB: 84703B77M00NV6N	MIRROR ASSY,INS RR VIEW (BEIGE)	1	Rp105.000
19	84781-77M00-V6N SUB: 84781B77M00NV6N	COVER,INS MIRROR STAY (BEIGE)	1	Rp11.500
20	02142-0516A-000 SUB: 02142B0516AN000	SCREW	2	Rp3.500
21	84801-73R00-V6N	SUNVISOR ASSY,R (BEIGE)	1	Rp105.000
22	84802-73R20-V6N	SUNVISOR ASSY,L (BEIGE)	1	Rp154.000
23	84851M66R00-V6N	HOLDER,SUNVISOR (BEIGE)	2	Rp8.500
24	02122-0516A-000	SCREW	2	Rp11.000
