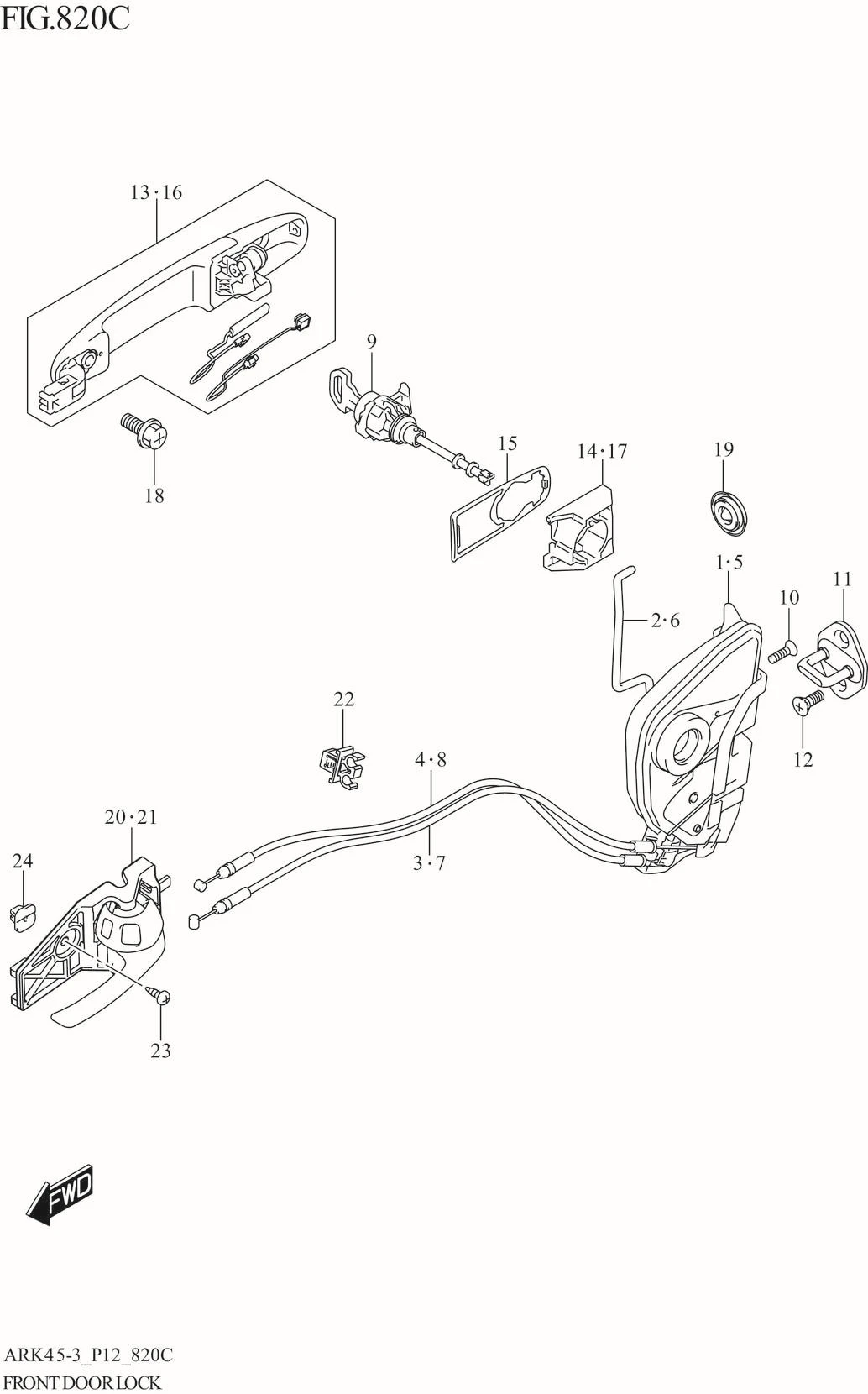

FIG. 820C FRONT DOOR LOCK (GX,GX_LTD)

No	No. Part	Description	Qty	Price Per Pcs
1	82210-76M42-000 SUB: 82210-76M40-000	LATCH,FRONT DOOR,R	1	Rp310.500
2	82221-73R00-000	ROD,FRONT DOOR OUT HANDLE,R	1	Rp14.500
3	82223-73R00-000	CABLE,FR DR INSIDE HANDLE	1	Rp19.000
4	82224-73R00-000	CABLE,FR DR INSIDE LOCK	1	Rp21.500
5	82250-76M52-000 SUB: 82250-76M50-000	LATCH,FRONT DOOR,L	1	Rp298.500
6	82261-73R00-000	ROD,FRONT DOOR OUT HANDLE,L	1	Rp17.000
7	82223-73R00-000	CABLE,FR DR INSIDE HANDLE	1	Rp19.000
8	82224-73R00-000	CABLE,FR DR INSIDE LOCK	1	Rp21.500
9	82270-73870-000	CYLINDER SET,FR DR LATCH,R	1	Rp176.500
10	09137-06032-000	SCREW (6X18)	6	Rp16.500
11	82610-67LA0-000 SUB: 82610B67LA0N000	STRIKER,DOOR LATCH	2	Rp21.500
12	09139-08025-000	SCREW (8X20)	4	Rp23.000
13	82081-73R13-0PG SUB: 82081-73R11-0PG	HANDLE SET,SIDE DR OUT,R (CHROME)	1	Rp371.500
14	82812-73R01-000 SUB: 82812-73R00-000	BRACKET,FR DR OUT HANDLE,R	1	Rp12.500
15	82813-73R00-000	PAD,FRONT DOOR OUT HANDLE	1	Rp6.500
16	82082-73R14-0PG SUB: 82082-73R11-0PG	HANDLE SET,SIDE DR OUT,L (CHROME)	1	Rp379.500
17	82822-73R01-000 SUB: 82822-73R00-000	BRACKET,FR DR OUT HANDLE,L	1	Rp12.500
18	09116-06168-000	BOLT (6X12)	4	Rp15.000
19	09250-25007-000	CAP (OD:25)	2	Rp10.500
20	83110M74L10-C48	HANDLE,SIDE DR INSIDE,R (CHROME/BLACK)	1	Rp111.000
21	83130M74L10-C48	HANDLE,SIDE DR INSIDE,L (CHROME/BLACK)	1	Rp111.000
22	83271M50E00-000	CLIP,DR HANDLE ROD	2	Rp6.500
23	09132-05058-000	SCREW (5X12)	2	Rp14.000
24	09148-05031-000	NUT (M5)	2	Rp18.000
