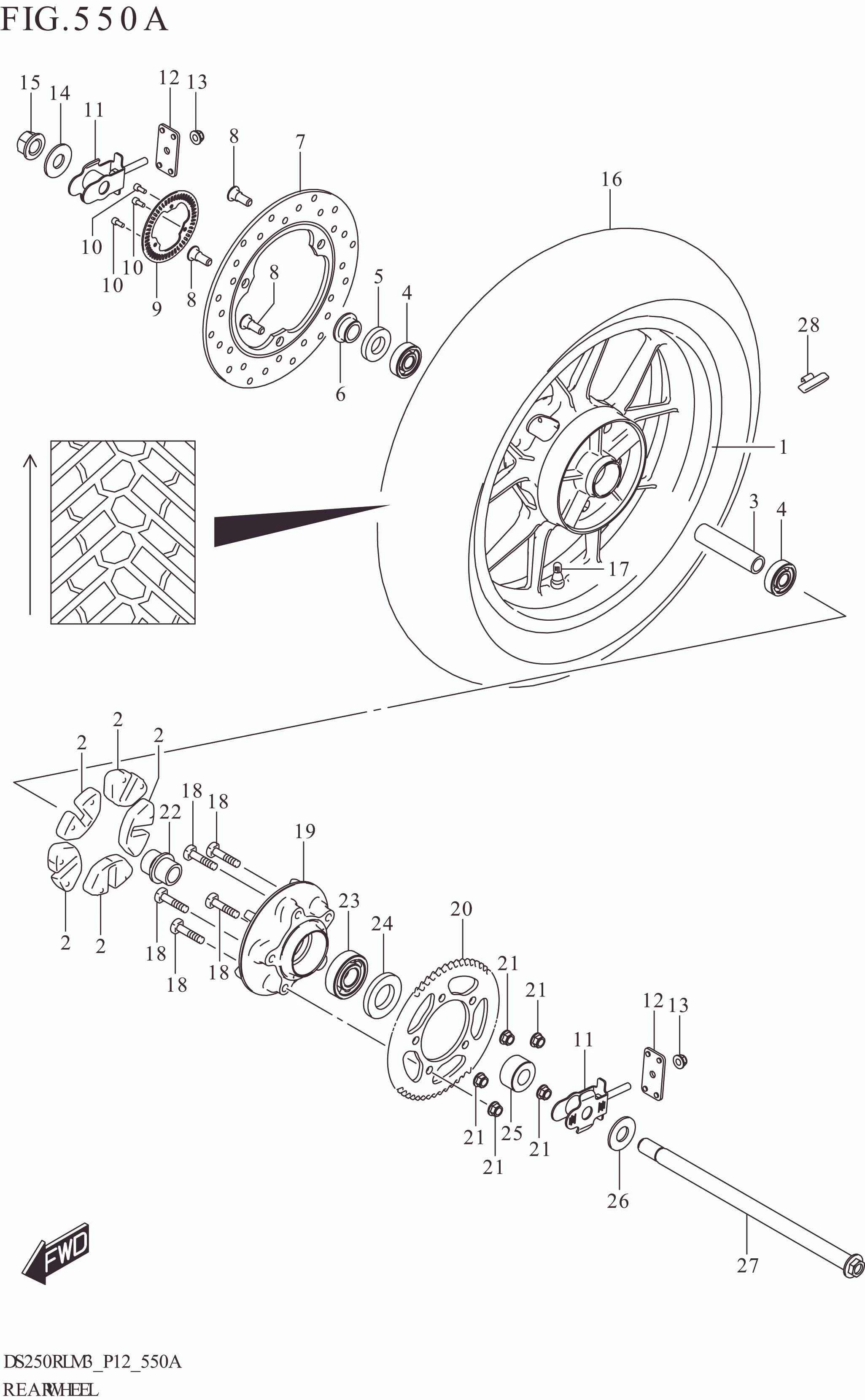

FIG. 550A REAR WHEEL

FIG. 550A REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64111-20L00-QC3 WHEEL,REAR (BLACK) 1 Rp1.874.500
2 64651-20L00-000 ABSORBER,REAR HUB SHOCK 5 Rp96.000
3 64731-41K00-000 SPACER,REAR WHEEL HUB BEARING 1 Rp40.500
4 08123-6303B-000 BEARING 2 Rp154.500
5 64841-41K00-000 SEAL,REAR HUB BEARING 1 Rp24.000
6 64741-41K00-000 SPACER,REAR AXLE,R 1 Rp33.000
7 69211-20L00-000 DISC,REAR BRAKE 1 Rp786.000
8 59218-34J20-000 BOLT,FRONT BRAKE DISC 5 Rp21.500
9 54162-41K00-000 RING,SPEED SENSOR FR (50T) 1 Rp49.500
10 07130-0512A-000 BOLT 3 Rp4.000
11 61410-41K00-000 ADJUSTER,CHAIN 2 Rp43.500
12 61421-41K00-000 PLATE,CHAIN ADJUSTER GUIDE 2 Rp16.000
13 08319-3108A-000 NUT 2 Rp4.000
14 61445-41K00-000 WASHER,REAR AXLE,R 1 Rp31.000
15 64721-41K00-000 NUT,REAR AXLE 1 Rp31.000
16 65110-20L00-000 TIRE,REAR 1 Rp1.399.000
17 43130-24A70-000 VALVE ASSY,WHEEL RIM (TR412) 1 Rp14.500
18 64541-41K00-000 BOLT,REAR SPROCKET 5 Rp16.000
19 64611-01D10-000 DRUM,REAR SPROCKET 1 Rp314.000
20 64511-41K00-000 SPROCKET,REAR (NT:40) 1 Rp274.500
21 08319-3110A-000 NUT 5 Rp4.500
22 64733-01D00-000 RETAINER,RR SPROCKET DRUM 1 Rp51.000
23 08133-6305B-000 BEARING 1 Rp166.000
24 64831-41K00-000 SEAL,REAR SPROCKET DRUM OIL 1 Rp33.500
25 64751-41K00-000 SPACER,REAR AXLE,L 1 Rp44.000
26 61455-41K00-000 WASHER,REAR AXLE,L 1 Rp22.500
27 64711-41K00-000 AXLE,REAR 1 Rp116.000
28-1 55411-41K00-000 BALANCER,WHEEL NO.1 (10G) 0 Rp10.000
28-2 55412-41K00-000 BALANCER,WHEEL NO.2 (20G) 0 Rp14.500
28-3 55413-41K00-000 BALANCER,WHEEL NO.3 (30G) 0 Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
