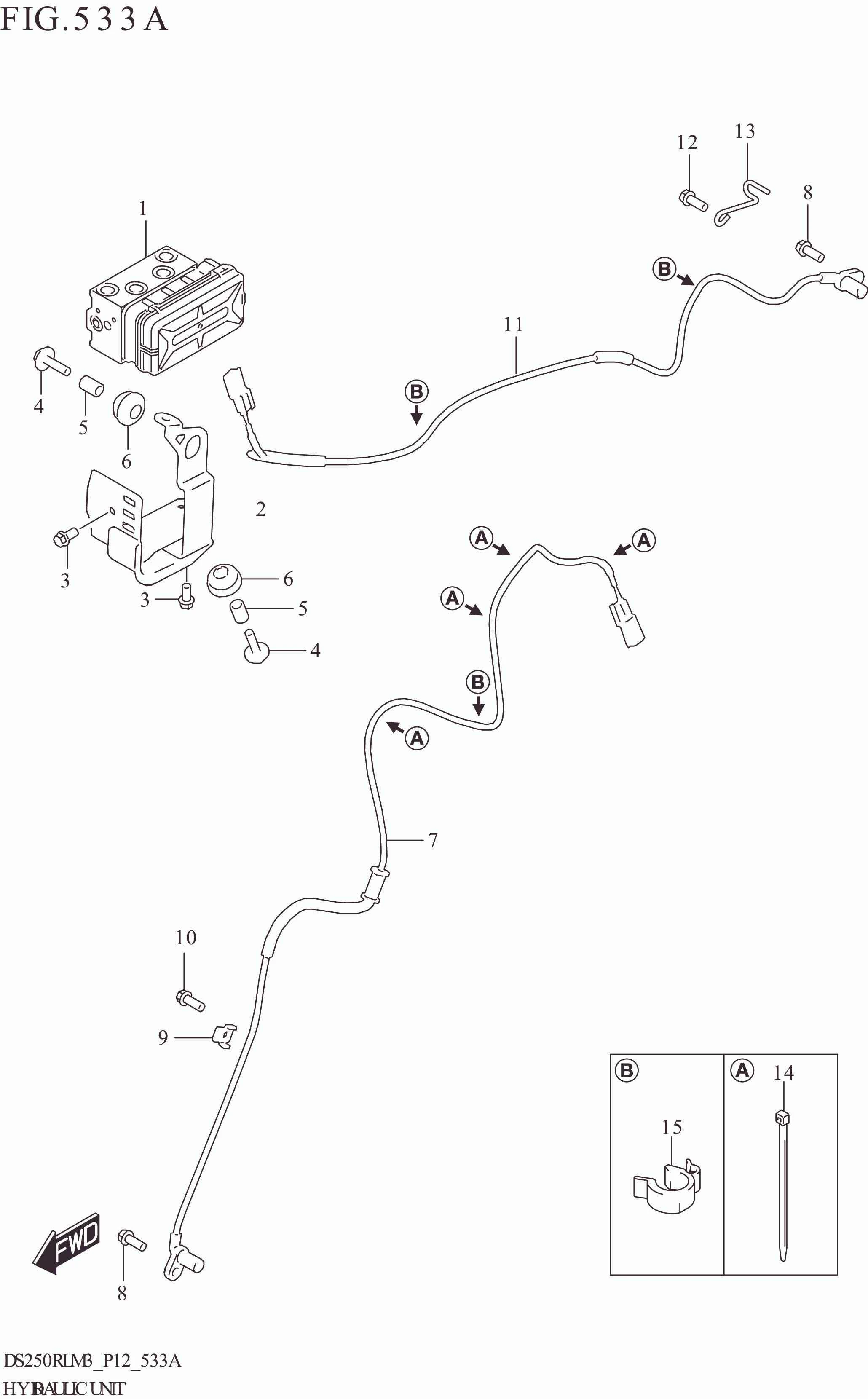

FIG. 533A HYDRAULIC UNIT

FIG. 533A HYDRAULIC UNIT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	55610-20L00-000	UNIT ASSY,HYDRAULIC ABS	1	Rp5.546.000
2	55660-41K00-000	HOLDER,HYDR UNIT ABS	1	Rp43.000
3	01547-0610A-000 SUB: 01547-0612B-000	BOLT	2	Rp3.000
4	55661-34J00-000	BOLT	2	Rp13.500
5	55662-10G00-000	SPACER,HYDR UNIT MTG (#05)	2	Rp39.000
6	55663-34J00-000	RUBBER,HYDR UNIT MTG	2	Rp42.000
7	55710-20L00-000	SENSOR,FR WHEEL SPEED	1	Rp413.000
8	01547-0616A-000 SUB: 01547-0616B-000	BOLT	2	Rp6.500
9	34938-14F00-000	GUIDE,SENSOR LEAD	1	Rp36.000
10	01547-0610A-000 SUB: 01547-0612B-000	BOLT	1	Rp3.000
11	65710-20L00-000	SENSOR,RR WHEEL SPEED	1	Rp395.000
12	01547-0616A-000 SUB: 01547-0616B-000	BOLT	1	Rp6.500
13	65741-41K00-000	GUIDE,RR WHL SPEED SENSOR LEAD	1	Rp17.500
14	09407-14407-000	CLAMP (L:145)	6	Rp18.500
15	55734-27K00-000	CLAMP,SENSOR	3	Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
