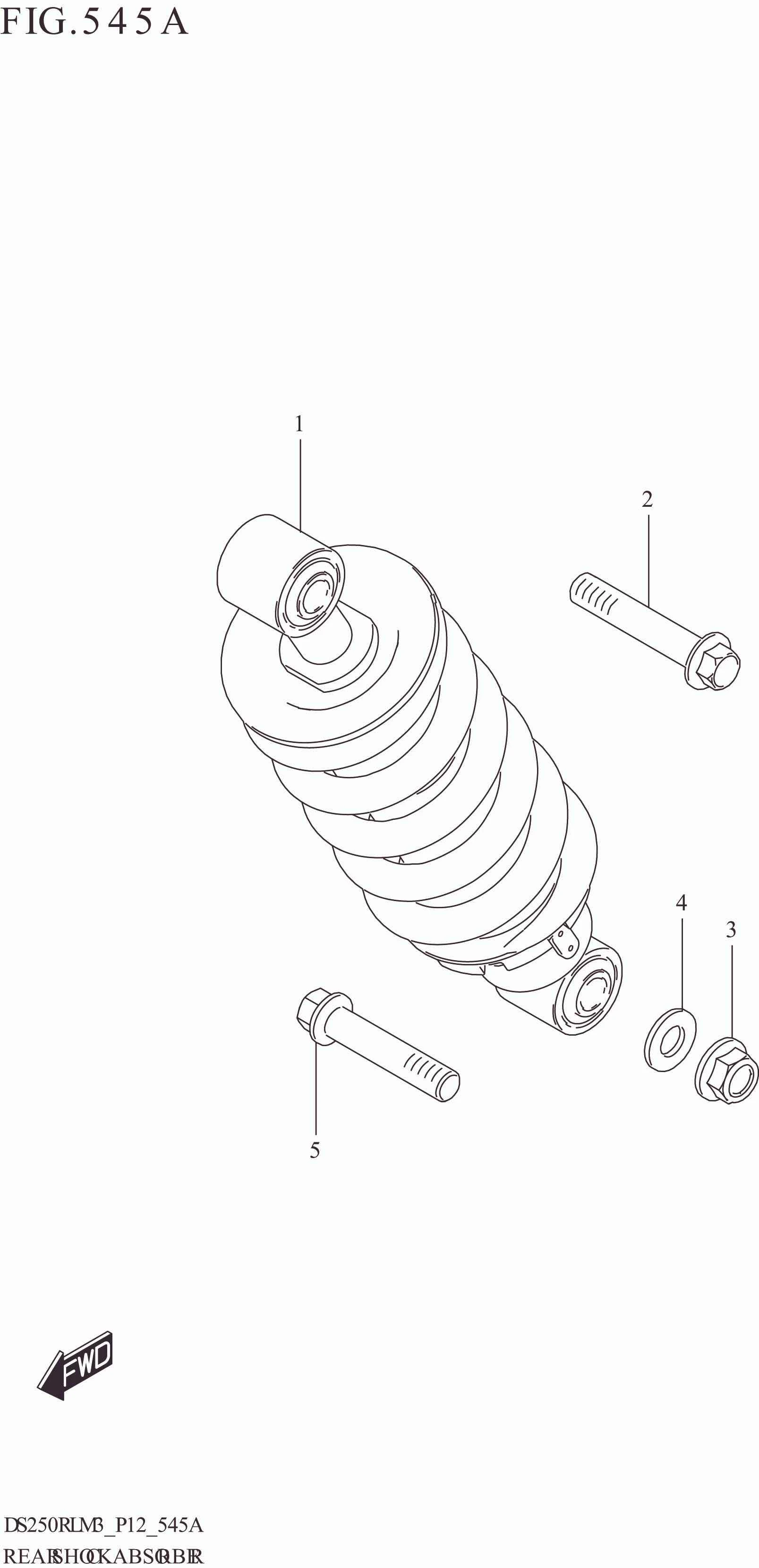

FIG. 545A REAR SHOCK ABSORBER

FIG. 545A REAR SHOCK ABSORBER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	62100-20L00-28W	ABSORBER ASSY,REAR SHOCK (WHITE)	1	Rp1.307.500
2	62658-47H00-000	BOLT,RR CUSHION LEVER	1	Rp33.000
3	09159-12082-000	NUT	1	Rp30.000
4	09160-12131-000	WASHER (12.3X24X2.3)	1	Rp9.000
5	62668-30B00-000	BOLT,RR CUSHION LEVER FR (12X60)	1	Rp25.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
