V-Strom SX250

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 401A FRAME FIG. 406A HOLDER FIG. 407A STAND FIG. 412A CARRIER FIG. 415A FOOTREST FIG. 420A FUEL TANK FIG. 423A FUEL TANK COVER FIG. 427A EVAP SYSTEM FIG. 445B FRAME COVER FIG. 446A FRAME LOWER COVER FIG. 460A FRONT FENDER FIG. 462A HANDLEBAR FIG. 464A REAR VIEW MIRROR FIG. 466A CONTROL CABLE FIG. 467A HANDLELEVER FIG. 472A KNUCKLE COVER FIG. 474A REAR FENDER FIG. 481B COWLING BODY FIG. 483A UNDER COWLING FIG. 483A UNDER COWLING FIG. 496C LABEL FIG. 497B MANUAL OR TOOLS FIG. 505A SEAT FIG. 521A FRONT FORK DAMPER FIG. 524A STEERING STEM FIG. 530A FRONT WHEEL FIG. 533A HYDRAULIC UNIT FIG. 535A FRONT CALIPER FIG. 536A FRONT BRAKE HOSE FIG. 537A FRONT MASTER CYLINDER FIG. 541A REAR SWINGINGARM FIG. 542A CHAIN CASE FIG. 545A REAR SHOCK ABSORBER FIG. 550A REAR WHEEL FIG. 555A REAR CALIPER FIG. 558A REAR MASTER CYLINDER FIG. 970A OPTIONAL FIG. 970B OPTIONAL FIG. 970C OPTIONAL FIG. 970D OPTIONAL FIG. 970E OPTIONAL

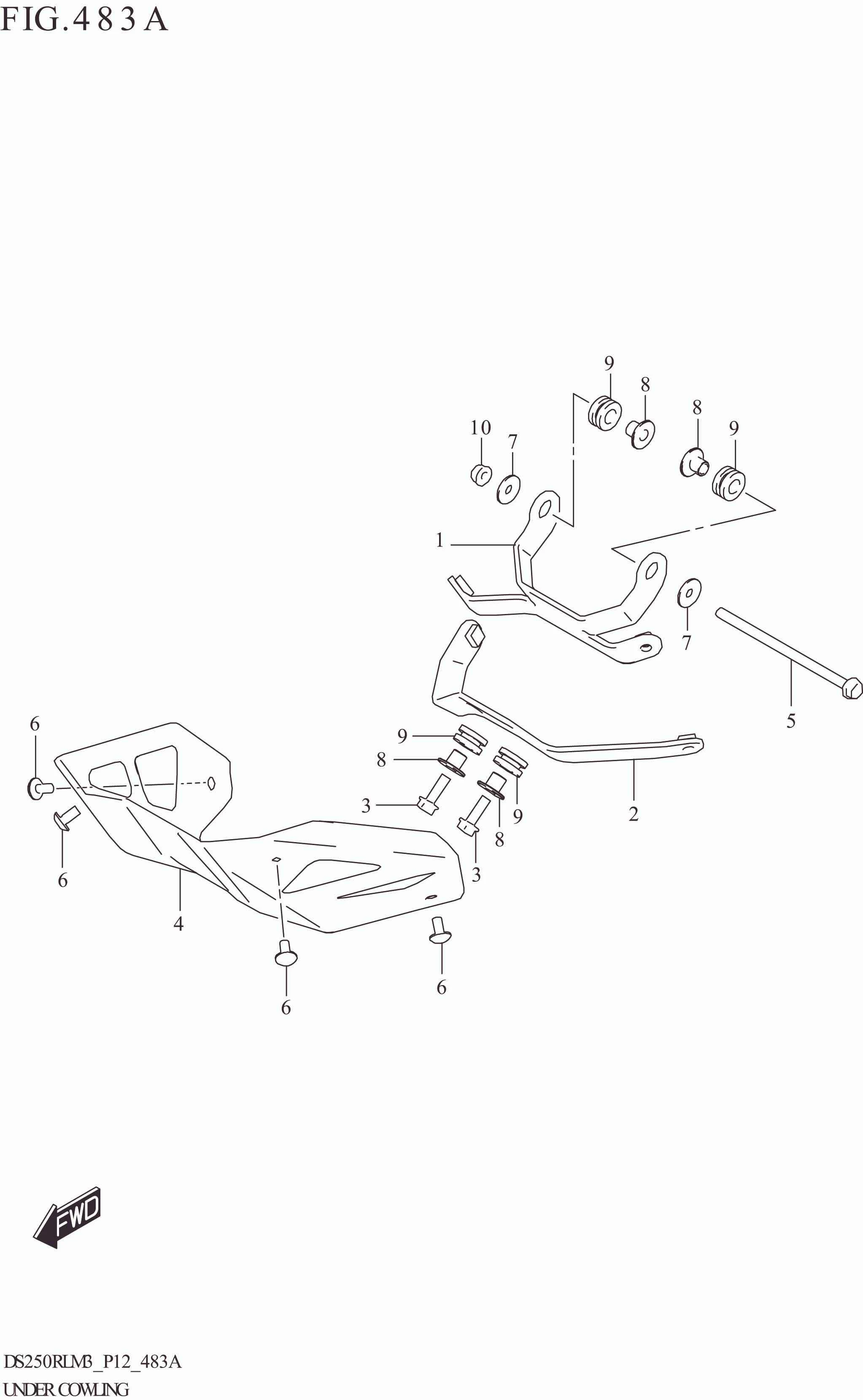

FIG. 483A UNDER COWLING

FIG. 483A UNDER COWLING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	94570-20L00-000	BRACKET,UNDER COWL NO.1	1	Rp36.500
2	94580-20L00-000	BRACKET,UNDER COWL NO.2	1	Rp37.000
3	01550-0620A-000	BOLT (6X20)	2	Rp3.500
4	94460-20L00-000	COWLING,UNDER	1	Rp124.000
5	09103-06553-000	BOLT,UNDER COWL NO.1	1	Rp15.000
6	09139-06205-000	SCREW,FRONT FENDER	4	Rp6.500
7	09160-06152-000	WASHER (6.5X20X1.2)	2	Rp7.000
8	09180-06382-000	SPACER,UNDER COWL	4	Rp9.000
9	09320-10078-000	CUSHION (10X20X10)	4	Rp4.000
10	08319-3106B-000	NUT	1	Rp20.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
