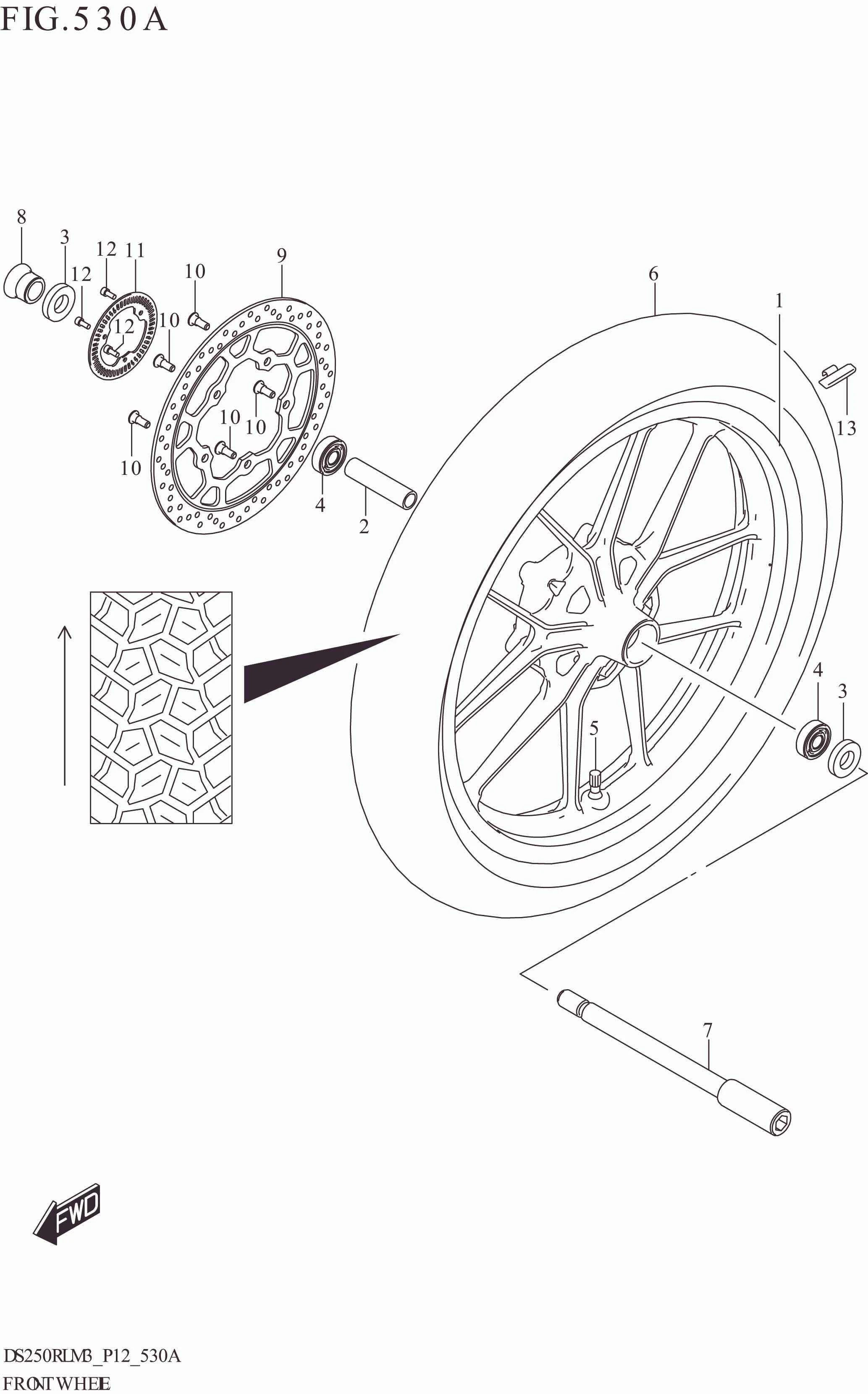

FIG. 530A FRONT WHEEL

FIG. 530A FRONT WHEEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	54111-20L00-QC3	WHEEL,FRONT (BLACK)	1	Rp2.321.500
2	54731-41K00-000	SPACER,FRONT HUB BEARING	1	Rp29.500
3	54841-48H10-000	SEAL,WHEEL DUST	2	Rp28.000
4	08123-6302B-000	BEARING	2	Rp71.000
5	43130-24A70-000	VALVE ASSY,WHEEL RIM (TR412)	1	Rp14.500
6	55110-20L00-000	TIRE,FRONT	1	Rp1.203.500
7	54711-41K00-000	AXLE,FRONT	1	Rp100.500
8	54751-41K00-000	SPACER,FR AXLE,R	1	Rp111.000
9	59211-20L00-000	DISC,FRONT BRAKE	1	Rp781.500
10	59218-34J20-000	BOLT,FRONT BRAKE DISC	5	Rp21.500
11	54162-20L00-000	RING,SPEED SENSOR FR	1	Rp277.000
12	07130-0512A-000	BOLT	5	Rp4.000
13-1	55411-41K00-000	BALANCER,WHEEL NO.1 (10G)	0	Rp10.000
13-2	55412-41K00-000	BALANCER,WHEEL NO.2 (20G)	0	Rp14.500
13-3	55413-41K00-000	BALANCER,WHEEL NO.3 (30G)	0	Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
