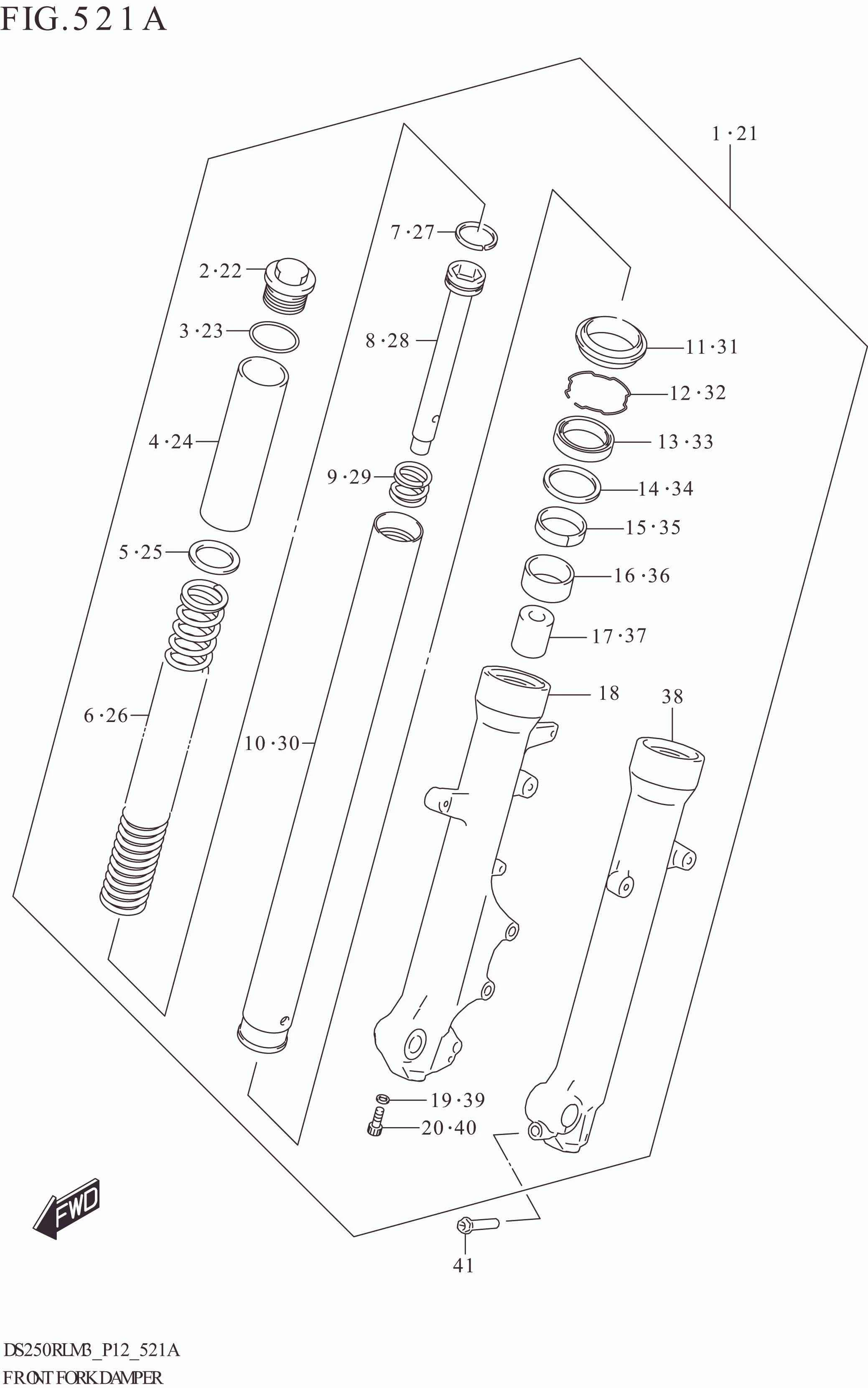

FIG. 521A FRONT FORK DAMPER

No	No. Part	Description	Qty	Price Per Pcs
1	51103-20L00-291	DAMPER ASSY,FR FORK,R (BLACK)	1	Rp2.875.500
2	51113-27K00-000	.BOLT	1	Rp107.000
3	51181-34J00-000	.O-RING	1	Rp16.500
4	51176-20L00-000	.SPACER,SPRING UPPER	1	Rp50.500
5	51172-34J00-000	.WASHER	1	Rp10.000
6	51171-20L00-000	.SPRING	1	Rp129.000
7	51196-34J00-000	.RING,PISTON	1	Rp9.000
8	51146-20L00-000	.CYLINDER	1	Rp107.500
9	51177-34J00-000	.SPRING,REBOUND	1	Rp18.000
10	51110-20L00-000	.TUBE,INNER	1	Rp714.000
11	51173-34J00-000	.SEAL,DUST	1	Rp77.500
12	51156-34J00-000	.RING,SNAP	1	Rp10.000
13	51153-34J00-000	.SEAL,OIL	1	Rp118.500
14	51158-34J00-000	.WASHER	1	Rp13.500
15	51167-34J00-000	.METAL,SLIDE	1	Rp75.500
16	51121-34J00-000	.BUSH,SLIDE	1	Rp60.500
17	51195-34J00-000	.PIECE,OIL LOCK	1	Rp61.500
18	51131-20L00-291	.TUBE,OUTER,R (BLACK)	1	Rp1.427.500
19	51148-34J00-000	.GASKET LOWER	1	Rp9.000
20	51147-41K00-000	.BOLT	1	Rp15.000
21	51104-20L00-291	DAMPER ASSY,FR FORK,L (BLACK)	1	Rp2.875.500
22	51113-27K00-000	.BOLT	1	Rp107.000
23	51181-34J00-000	.O-RING	1	Rp16.500
24	51176-20L00-000	.SPACER,SPRING UPPER	1	Rp50.500
25	51172-34J00-000	.WASHER	1	Rp10.000
26	51171-20L00-000	.SPRING	1	Rp129.000
27	51196-34J00-000	.RING,PISTON	1	Rp9.000
28	51146-20L00-000	.CYLINDER	1	Rp107.500
29	51177-34J00-000	.SPRING,REBOUND	1	Rp18.000
30	51110-20L00-000	.TUBE,INNER	1	Rp714.000
31	51173-34J00-000	.SEAL,DUST	1	Rp77.500
32	51156-34J00-000	.RING,SNAP	1	Rp10.000
33	51153-34J00-000	.SEAL,OIL	1	Rp118.500
34	51158-34J00-000	.WASHER	1	Rp13.500
35	51167-34J00-000	.METAL,SLIDE	1	Rp75.500
36	51121-34J00-000	.BUSH,SLIDE	1	Rp60.500
37	51195-34J00-000	.PIECE,OIL LOCK	1	Rp61.500
38	51141-20L00-291	.TUBE,OUTER,L (BLACK)	1	Rp1.427.500
39	51148-34J00-000	.GASKET LOWER	1	Rp9.000
40	51147-41K00-000	.BOLT	1	Rp15.000
41	51147-34J00-000	BOLT	1	Rp31.500
