V-Strom SX250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 401A FRAMEFIG. 406A HOLDERFIG. 407A STANDFIG. 412A CARRIERFIG. 415A FOOTRESTFIG. 420A FUEL TANKFIG. 423A FUEL TANK COVERFIG. 427A EVAP SYSTEMFIG. 445B FRAME COVERFIG. 446A FRAME LOWER COVERFIG. 460A FRONT FENDERFIG. 462A HANDLEBARFIG. 464A REAR VIEW MIRRORFIG. 466A CONTROL CABLEFIG. 467A HANDLELEVERFIG. 472A KNUCKLE COVERFIG. 474A REAR FENDERFIG. 481B COWLING BODYFIG. 483A UNDER COWLINGFIG. 483A UNDER COWLINGFIG. 496C LABELFIG. 497B MANUAL OR TOOLSFIG. 505A SEATFIG. 521A FRONT FORK DAMPERFIG. 524A STEERING STEMFIG. 530A FRONT WHEELFIG. 533A HYDRAULIC UNITFIG. 535A FRONT CALIPERFIG. 536A FRONT BRAKE HOSEFIG. 537A FRONT MASTER CYLINDERFIG. 541A REAR SWINGINGARMFIG. 542A CHAIN CASEFIG. 545A REAR SHOCK ABSORBERFIG. 550A REAR WHEELFIG. 555A REAR CALIPERFIG. 558A REAR MASTER CYLINDERFIG. 970A OPTIONALFIG. 970B OPTIONALFIG. 970C OPTIONALFIG. 970D OPTIONALFIG. 970E OPTIONAL

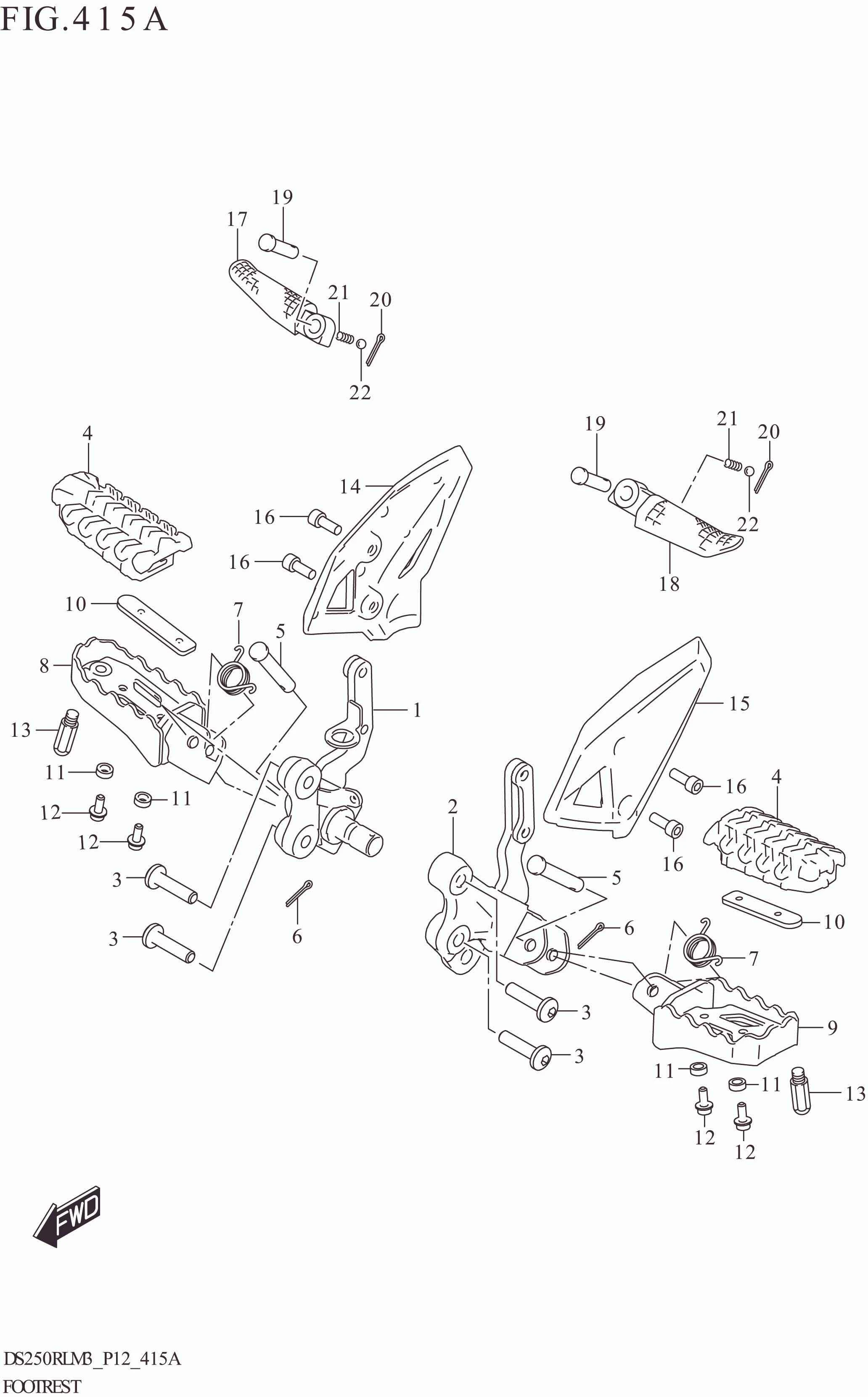

FIG. 415A FOOTREST

FIG. 415A FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43510-20L00-000 BRACKET,FR FOOTREST,R 1 Rp471.500
2 43520-20L00-000 BRACKET,FR FOOTREST,L 1 Rp471.500
3 09106-08210-000 BOLT,FOOTREST BRKT 4 Rp8.000
4 43551-06L00-000 RUBBER,FR FOOTREST 2 Rp40.000
5 09200-08077-000 PIN 2 Rp12.500
6 04111-2515A-000 PIN 2 Rp8.500
7 09448-20012-000 SPRING,FRONT FOOTREST 2 Rp6.500
8 43530-06L00-000 BAR,FRONT FOOTREST RH 1 Rp61.500
9 43540-06L00-000 BAR,FRONT FOOTREST LH 1 Rp61.500
10 43552-06L00-000 PLATE,FR FOOTREST RUBBER 2 Rp7.000
11 47512-28K00-000 SPACER,FR FOOTREST RUBBER 4 Rp36.500
12 07120-0512A-000 BOLT 4 Rp17.500
13 43576-48B80-000 BOLT,BANK SENSOR 2 Rp34.000
14 43571-20L00-000 GUARD,FR FOOTREST,R 1 Rp82.500
15 43572-20L00-000 GUARD,FR FOOTREST,L 1 Rp82.500
16 07130-0616A-000 BOLT (6X16) 2 Rp3.500
17 43611-37H70-000 BAR,PILLION FOOTREST,R 1 Rp55.500
18 43621-37H70-000 BAR,PILLION FOOTREST,L 1 Rp55.500
19 43529-34J10-000 PIN,PILLION FOOTREST 2 Rp6.500
20 04111-2515A-000 PIN 2 Rp8.500
21 09440-05003-000 SPRING 2 Rp12.000
22 06111M07004-000
SUB: 06111-07004-000		 BALL 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
