V-Strom SX250

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 401A FRAME FIG. 406A HOLDER FIG. 407A STAND FIG. 412A CARRIER FIG. 415A FOOTREST FIG. 420A FUEL TANK FIG. 423A FUEL TANK COVER FIG. 427A EVAP SYSTEM FIG. 445B FRAME COVER FIG. 446A FRAME LOWER COVER FIG. 460A FRONT FENDER FIG. 462A HANDLEBAR FIG. 464A REAR VIEW MIRROR FIG. 466A CONTROL CABLE FIG. 467A HANDLELEVER FIG. 472A KNUCKLE COVER FIG. 474A REAR FENDER FIG. 481B COWLING BODY FIG. 483A UNDER COWLING FIG. 483A UNDER COWLING FIG. 496C LABEL FIG. 497B MANUAL OR TOOLS FIG. 505A SEAT FIG. 521A FRONT FORK DAMPER FIG. 524A STEERING STEM FIG. 530A FRONT WHEEL FIG. 533A HYDRAULIC UNIT FIG. 535A FRONT CALIPER FIG. 536A FRONT BRAKE HOSE FIG. 537A FRONT MASTER CYLINDER FIG. 541A REAR SWINGINGARM FIG. 542A CHAIN CASE FIG. 545A REAR SHOCK ABSORBER FIG. 550A REAR WHEEL FIG. 555A REAR CALIPER FIG. 558A REAR MASTER CYLINDER FIG. 970A OPTIONAL FIG. 970B OPTIONAL FIG. 970C OPTIONAL FIG. 970D OPTIONAL FIG. 970E OPTIONAL

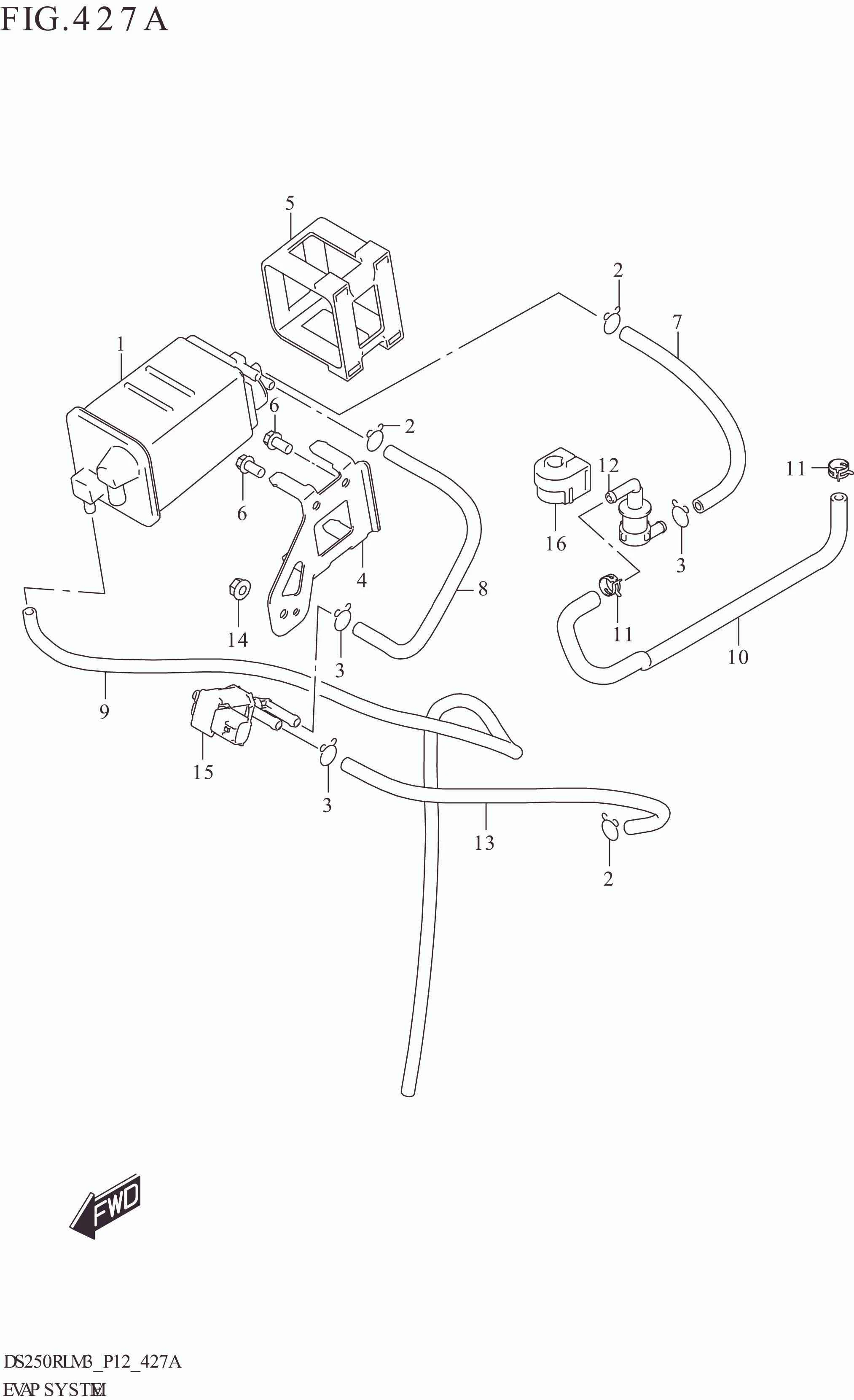

FIG. 427A EVAP SYSTEM

FIG. 427A EVAP SYSTEM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	18560-27KA0-000	CANISTER ASSY,EVAP	1	Rp203.500
2	09401-08004-000	CLIP	3	Rp5.000
3	09401-09406-000	CLIP	3	Rp5.500
4	18571-41K00-000	BRACKET,CANISTER	1	Rp30.500
5	18572-29J00-000	CUSHION,CANISTER	1	Rp43.500
6	01547-0610A-000 SUB: 01547-0612A-000	BOLT	2	Rp3.000
7	18561-41K00-000	HOSE,CANISTER SURGE	1	Rp16.500
8	18562-41K00-000	HOSE,CANISTER PURGE NO.1	1	Rp22.000
9	18568-41K00-000	HOSE,CANISTER DRAIN	1	Rp29.000
10	44434-20L00-000	HOSE,TANK & BRTHR VALVE	1	Rp23.000
11	09401-11009-000	CLIP	2	Rp5.500
12	44240-13H00-000	VALVE,FUEL TANK BREATHER	1	Rp85.500
13	18563-41K00-000	HOSE,CANISTER PURGE NO.2	1	Rp29.000
14	08316-1006A-000	NUT (6X12)	1	Rp2.000
15	18117-73M00-000	VALVE,CANISTER PURGE	1	Rp370.000
16	44894-34J00-000	CUSHION,FUEL TANK BRTHR VALVE	1	Rp42.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
