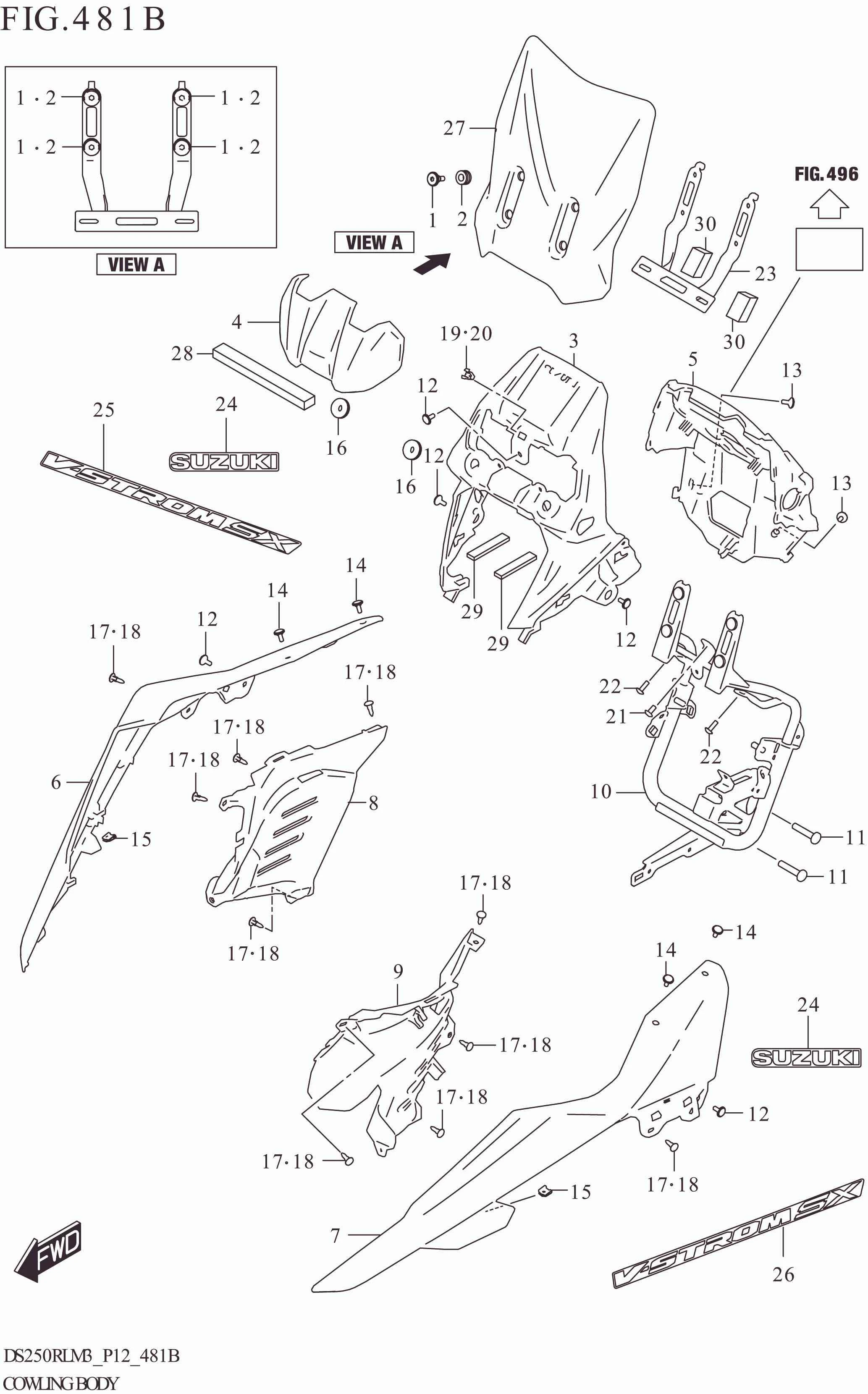

FIG. 481B COWLING BODY

No	No. Part	Description	Qty	Price Per Pcs
1	09139-06242-000	SCREW,WINDSCREEN	4	Rp22.000
2	09320-09016-000	CUSHION (9X18X9.5)	4	Rp4.000
3	94411-20L00-000	COWLING,BODY	1	Rp42.500
4	94412-20L00-291	COWLING,BODY UPPER (BLACK)	1	Rp23.500
5	94414-20L00-000	COVER,METER	1	Rp57.500
6-1	94421-20L00-YU1	COWLING,SIDE UPPER,R (YELLOW)	1	Rp238.500
6-2	94421-20L00-YVB	COWLING,SIDE UPPER,R (BLACK)	1	Rp238.500
6-3	94421-20L00-QVN	COWLING,SIDE UPPER,R (ORANGE)	1	Rp238.500
7-1	94431-20L00-YU1	COWLING,SIDE UPPER,L (YELLOW)	1	Rp238.500
7-2	94431-20L00-YVB	COWLING,SIDE UPPER,L (BLACK)	1	Rp238.500
7-3	94431-20L00-QVN	COWLING,SIDE UPPER,L (ORANGE)	1	Rp238.500
8	94471-20L00-000	COWLING,INNER,R	1	Rp26.500
9	94481-20L00-000	COWLING,INNER,L	1	Rp26.500
10	94510-20L00-000	BRACE,COWLING	1	Rp654.000
11	94621-34J10-000	BOLT,BRACE COWLING	2	Rp14.000
12	09139-05091-000	SCREW (5X13)	5	Rp68.000
13	09139-05092-000	SCREW (5X13)	2	Rp8.000
14	09139-05096-000	BOLT (5X13)	4	Rp24.000
15	09148-05060-000	NUT (M5)	2	Rp29.500
16	48169-12JA0-000 SUB: 09320-08018-000	CUSHION (8X26X7)	2	Rp15.000
17	09409-06L07-000	CLIP	12	Rp10.000
18	09409-06346-000	CLIP	12	Rp3.500
19	09409-08L09-000	CLIP	4	Rp8.500
20	09409-08014-000	CLIP	4	Rp3.000
21	03541-0512A-000	SCREW	1	Rp3.500
22	03541-0516A-000	SCREW	2	Rp3.500
23	94590-20L10-000	BRACKET,FRONT LICENSE	1	Rp118.500
24-1	68181-20L00-GY8	EMBLEM,"SUZUKI" (YELLOW,BLACK)	2	Rp11.500
24-2	68181-20L00-AJM	EMBLEM,"SUZUKI" (BLACK,GRAY)	2	Rp12.500
24-3	68181-20L00-CDY	EMBLEM,"SUZUKI"	2	Rp12.500
25-1	68182-20L00-CDW	EMBLEM,SIDE COWL,R	1	Rp16.500
25-3	68182-20L00-CDV	EMBLEM,SIDE COWL,R	1	Rp16.500
25-2	68182-20L00-CDU	EMBLEM,SIDE COWL,R	1	Rp16.500
26-1	68192-20L00-CDW	EMBLEM,SIDE COWL,L	1	Rp16.500
26-2	68192-20L00-CDU	EMBLEM,SIDE COWL,L	1	Rp16.500
26-3	68192-20L00-CDV	EMBLEM,SIDE COWL,L	1	Rp16.500
27	94611-20L00-000	WINDSCREEN	1	Rp81.500
28	94416-20L00-000	CUSHION	1	Rp10.500
29	94417-20L00-000	CUSHION	2	Rp3.500
30	94599-20L00-000	CUSHION,FRONT LICENSE BRKT	2	Rp5.000
