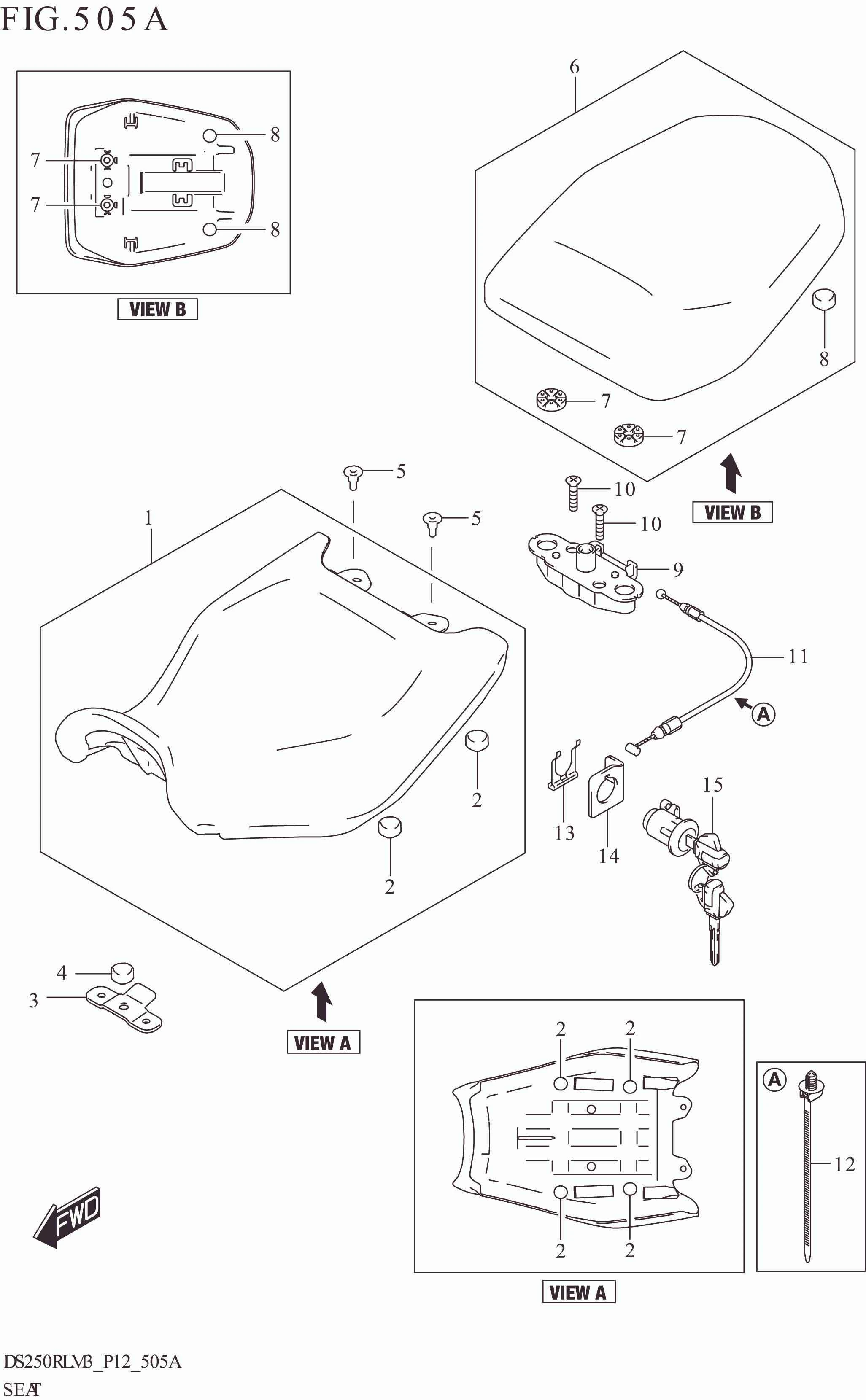

FIG. 505A SEAT

FIG. 505A SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	45100-20L00-QV4	SEAT ASSY	1	Rp478.500
2	45148-27K00-000	.CUSHION,SEAT MOUNT	4	Rp5.500
3	45316-41K00-000	BRACKET,SEAT FRONT	1	Rp20.000
4	45148-27K00-000	CUSHION,SEAT MOUNT	1	Rp5.500
5	09139-06241-000	BOLT	2	Rp22.000
6	45300-20L00-CDC	SEAT ASSY,PILLION	1	Rp479.500
7	45213-28G20-000	.CUSHION,SEAT LOCK STRIKER	2	Rp9.500
8	45148-27K00-000	.CUSHION,SEAT MOUNT	2	Rp5.500
9	45220-28G21-000	BRACKET,SEAT SUPPORT	1	Rp78.500
10	02122-0630A-000	SCREW	2	Rp13.500
11	45280-20L00-000	CABLE,SEAT LOCK	1	Rp19.000
12	09407-17403-000	CLAMP (L:170)	1	Rp3.500
13	45289-11F00-000	PLATE,SEAT LOCK ASSY	1	Rp4.000
14	45288-20L00-000	GUIDE,SEAT LOCK CABLE	1	Rp15.500
15	95700-09870-000	LOCK ASSY, SEAT	1	Rp179.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
