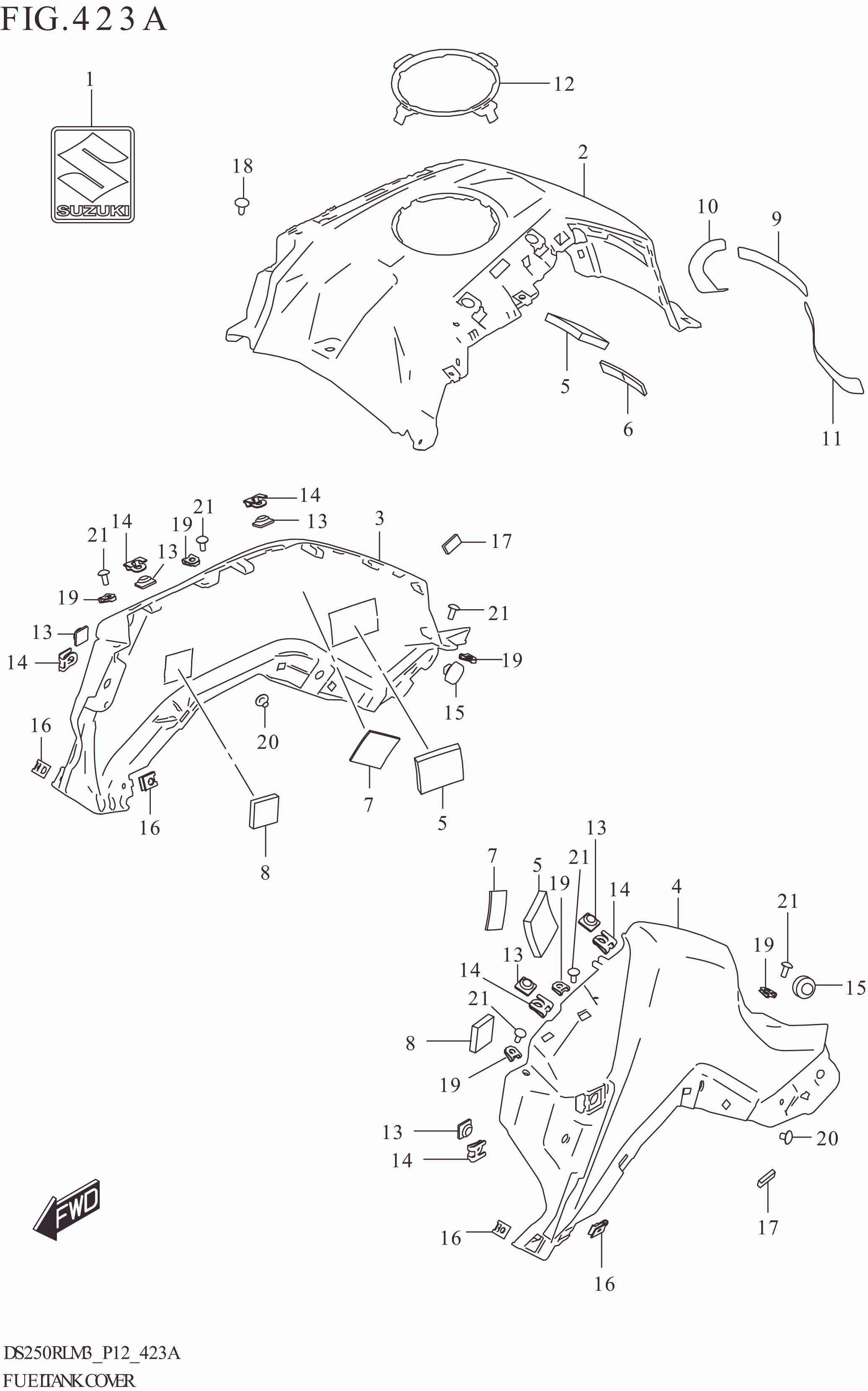

FIG. 423A FUEL TANK COVER

FIG. 423A FUEL TANK COVER
No No. Part Description Qty Price Per Pcs Remarks
1 68281-44K00-000 EMBLEM,S 1 Rp46.500
2 44171-20L00-YKV COVER,FUEL TANK CENTER (BLACK) 1 Rp338.000
3 44181-20L00-YVB COVER,FUEL TANK,R (BLACK) 1 Rp407.000
4 44191-20L00-YVB COVER,FUEL TANK,L (BLACK) 1 Rp407.000
5 44271-20L00-000 CUSHION,FUEL TANK COV CTR NO.1 3 Rp9.000
6 44272-20L00-000 CUSHION,FUEL TANK COV CTR NO.2 1 Rp3.000
7 44281-20L00-000 CUSHION,TANK COVER SIDE NO.1 2 Rp4.000
8 44282-20L00-000 CUSHION,TANK COVER SIDE NO.2 2 Rp3.500
9 44283-20L00-000 PROTECTOR,TANK COVER CTR 1 Rp7.500
10 44284-20L00-000 PROTECTOR,FUEL TANK COVER,R 1 Rp3.000
11 44285-20L00-000 PROTECTOR,FUEL TANK COVER,L 1 Rp3.000
12 44295-41K00-000 RUBBER,FUEL TANK COVER 1 Rp16.500
13 44523-20L00-000 NUT,M5 6 Rp13.500
14 44552-20L00-000 CLIP,NUT 6 Rp5.500
15 45148-27K00-000 CUSHION,SEAT MOUNT 2 Rp5.500
16 47349-34J01-000 NUT (M5) 4 Rp5.500
17 63114-41K00-000 CUSHION,FENDER RR FR 2 Rp5.500
18 09139-05096-000 BOLT (5X13) 1 Rp24.000
19 09148-05L04-000 NUT (M5) 6 Rp7.500
20 DISCONTINUE
SUB: 02142-0608A-000		 SCREW 2 -
21 03541-0512A-000 SCREW 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
