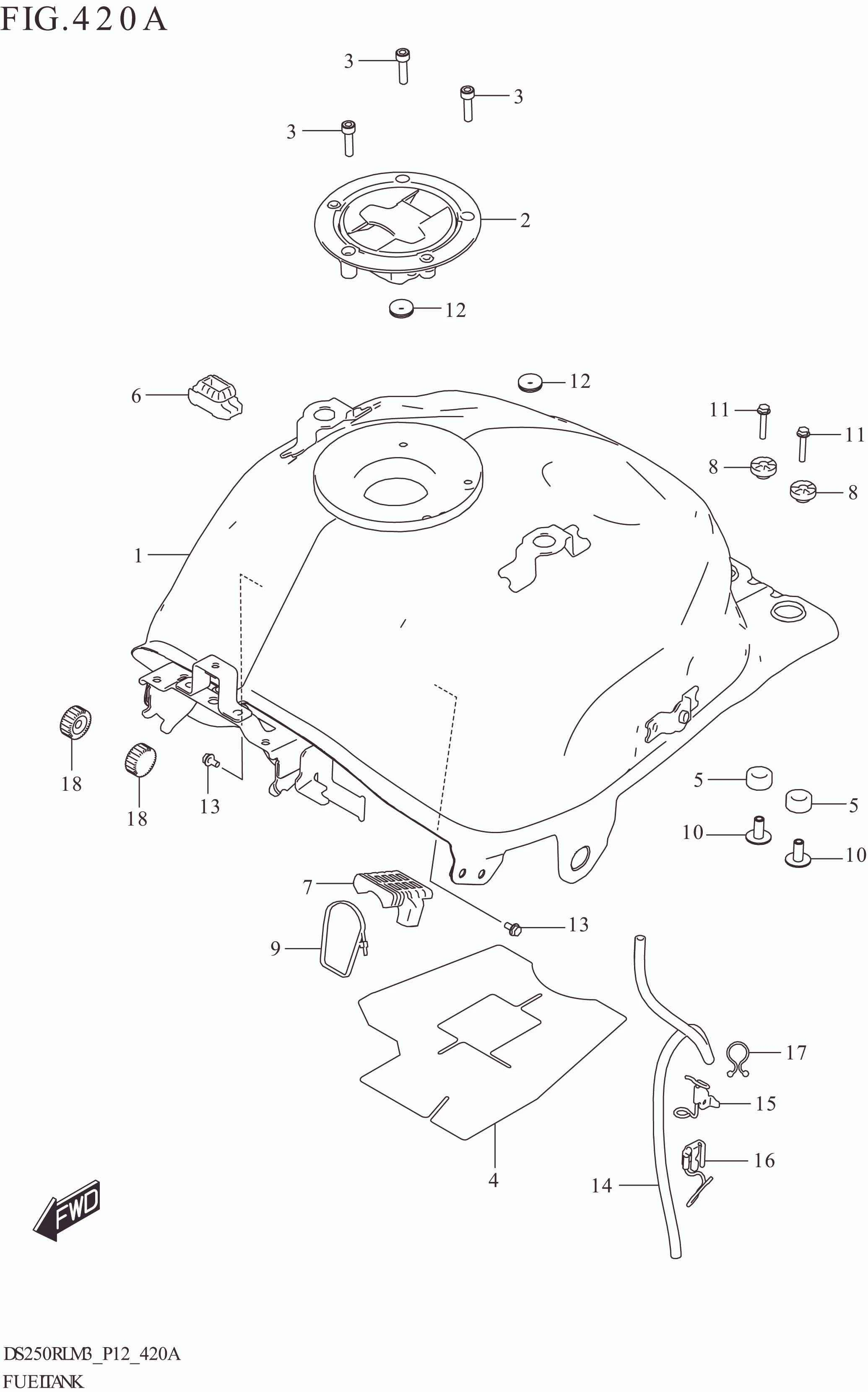

FIG. 420A FUEL TANK

FIG. 420A FUEL TANK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	44100-20L00-000	TANK ASSY,FUEL	1	Rp2.338.000
2	44200-34860-000	CAP SET,FUEL TANK FILLER	1	Rp445.000
3	09106-05017-000	BOLT (5X20)	3	Rp18.000
4	44271-41K00-000	SHIELD,FUEL TANK HEAT	1	Rp230.500
5	44542-44J00-000	CUSHION,FUEL TANK LWR	2	Rp10.000
6	44542-20L00-000	CUSHION,FUEL TANK FRONT BRACE	1	Rp26.000
7	44541-34J20-000	CUSHION,FUEL TANK CTR	1	Rp42.000
8	44541-44J00-000	CUSHION,FUEL TANK UPR	2	Rp10.500
9	44549-34J00-000	CLAMP,FUEL TANK CUSHION CTR	1	Rp9.000
10	44544-27K00-000	SPACER,FUEL TANK CUSHION	2	Rp14.000
11	01550-0635A-000	BOLT	2	Rp3.000
12	47162-30H00-000	CUSHION (8X26X7)	2	Rp10.000
13	01550-0612A-000	BOLT	2	Rp3.500
14	44423-41K00-000	HOSE,FUEL TANK DRAIN	1	Rp28.500
15	44480-41K00-000	GUIDE,DRAIN HOSE	1	Rp20.000
16	44480-41K20-000	GUIDE,DRAIN HOSE NO.2	1	Rp21.500
17	09408-00343-000	CLAMP	1	Rp8.500
18	44512-44J00-000	CUSHION,FUEL TANK FRONT	2	Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
